ifm electronic SU Series Electronic Ultrasonic Flow Meter 0L/min to 50L/min, G 3/4 in SU7000

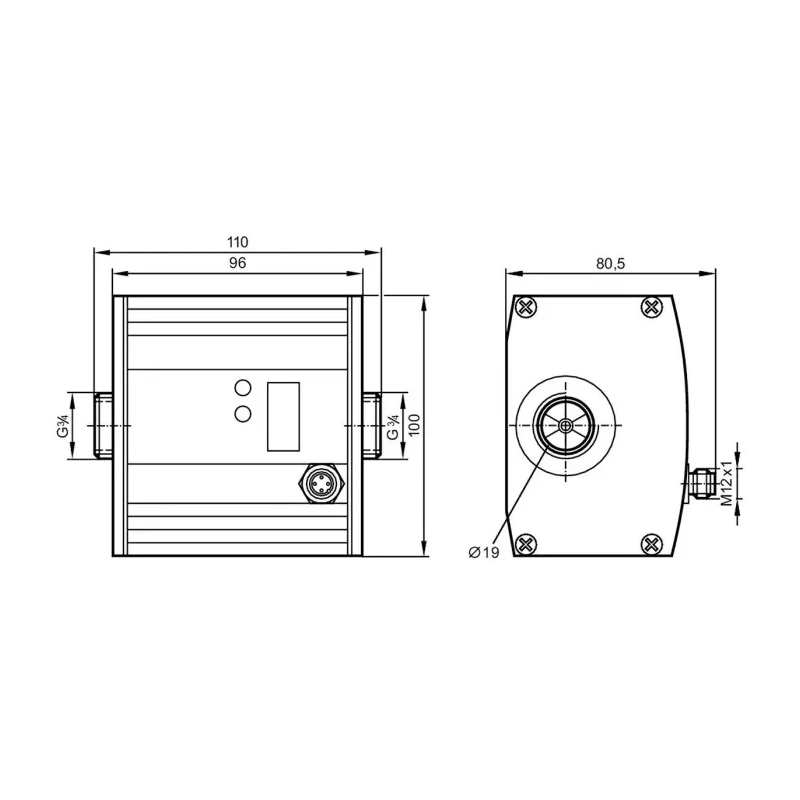

ifm electronic SU7000 electronic ultrasonic flow meter is designed for precise measurement of liquid media flow rates from 0L/min up to 50L/min. It is engineered for industrial applications involving fluids such as water, glycol solutions, and various industrial oils. The device connects via a G 3/4 inch threaded flat seal connection, ensuring compatibility with common piping systems.

This flow meter monitors essential parameters including volumetric flow quantity, accumulated consumption, and medium temperature, which are critical for process control and optimization in automation, manufacturing, and water treatment industries. Users can program switch and alarm levels via a user-friendly interface to tailor alerts and system feedback.

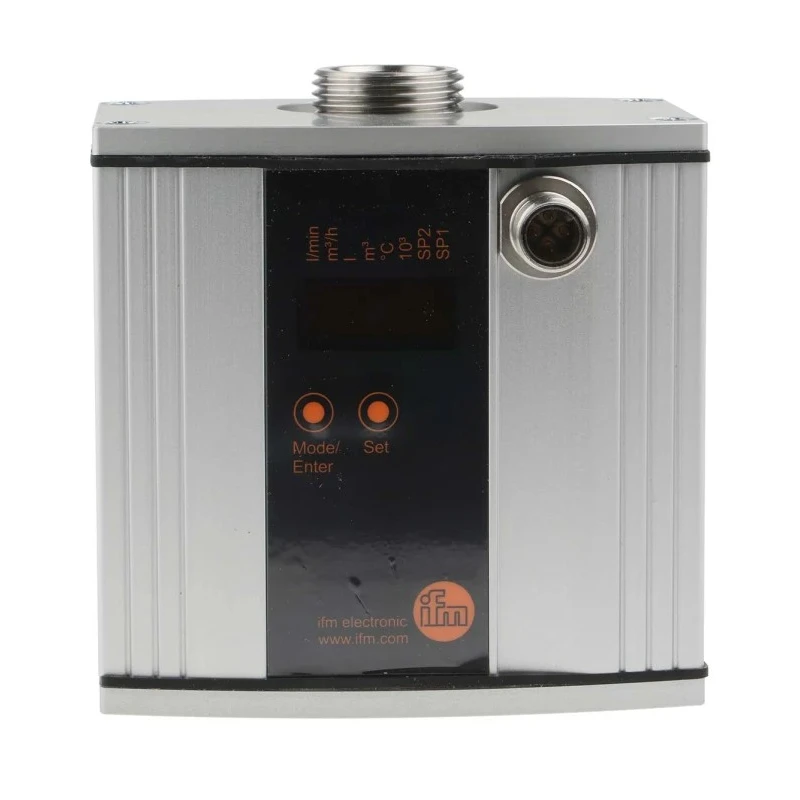

The SU7000 model features a rugged stainless steel housing providing mechanical robustness and corrosion resistance. The display is illuminated by a highly visible LED screen, enabling clear readings even in challenging industrial environments. Its two switching outputs can be configured as normally open or closed, serving various control and counting pulse applications.

The flow meter supports a supply voltage range between 19 VDC and 30 VDC. It has a maximum operating temperature of 60°C and can withstand pressures up to 16 bar. The wetted materials include Viton, Centellen 200, Polyethersulfone, and 316 stainless steel, ensuring compatibility with a wide range of liquids and durability over extended service periods.

Included in the package are two packing washers; threaded or push-fit adapters must be acquired separately based on installation requirements. The device meets numerous safety and electromagnetic compatibility standards, such as EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, and UL certification, ensuring reliable and safe operation in various industrial settings.

Measures volumetric flow, consumed quantity, and temperature accurately. Robust stainless steel housing ideal for harsh industrial environments. Two programmable switching outputs adaptable for multiple control needs. High visibility LED display for easy monitoring.

Suitable for water, glycol, and industrial oils. Maximum operating pressure of 16 bar and temperature up to 60°C. Includes 2 packing washers; adapters sold separately. Complies with EN and UL standards for industrial safety and EMC.

This flow meter is widely applicable in industrial machines, automation control systems, HVAC monitoring, water treatment processes, and other sectors requiring precise liquid flow measurement. For additional details or compatible accessories, browse the Flow Sensors category at EnvMart.
