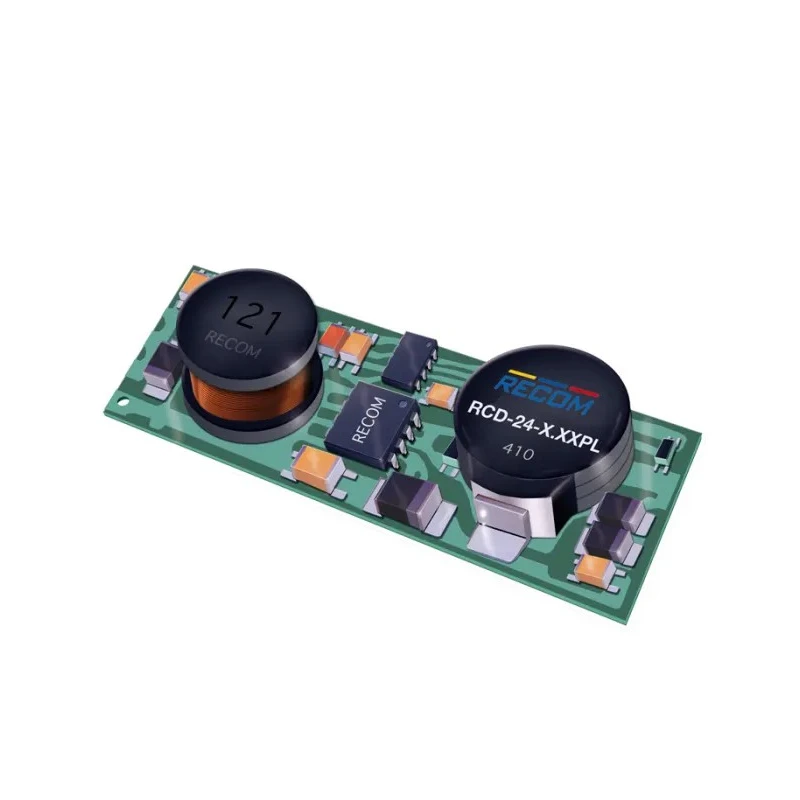

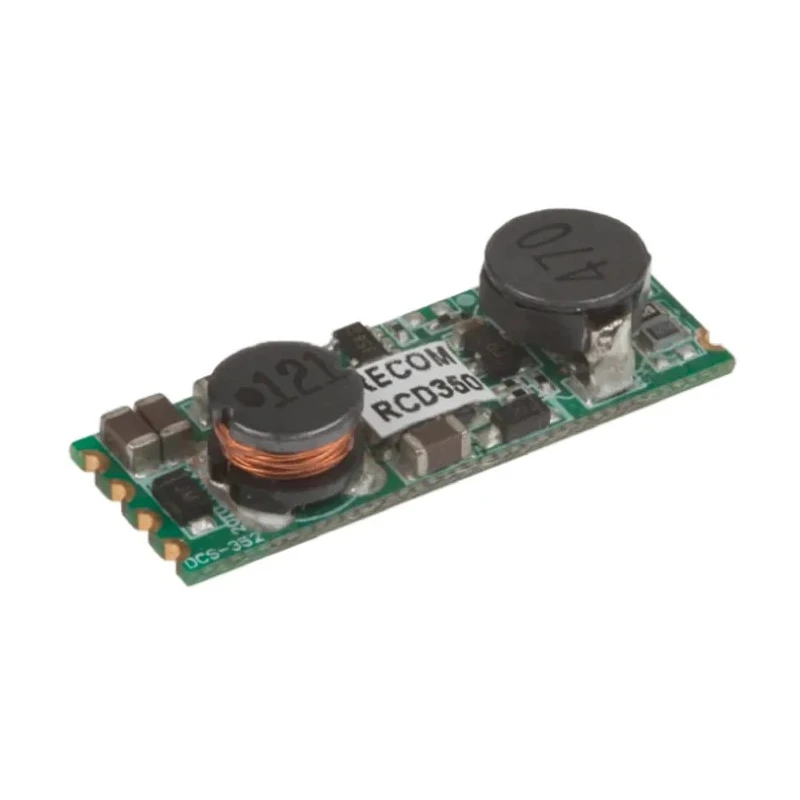

Recom Constant Current Open Frame LED Driver, 2V dc to 35V dc, 17.5 W, 500mA PWM Dimming, Surface Mount RCD-24-0.50/PL/B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Model | RCD-24-0.50/PL/B |
| Mount Type | Surface |
| Series | RCD-24-PL |
| Configuration | Open Frame |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Solder |
| Maximum Output Power | 17.5W |
| Input Voltage | 36V dc |
| Output Voltage | 2, 35V dc |
| Power Dissipation | 700mW |
| Standards/Approvals | RoHS Compliant |
| Dimming Operation | PWM |
| Primary Type | DC-DC |
| Recom IP67 1 Output LED Driver, 35V, 17.5 W PWMBrand | Recom |
| Driver Current | 500mA |
| LED Voltage | 36, 4.5V |
| Recom IP67 1 Output LED Driver, 2V, 35 V, 18 W, 500mA PWM LED DriverBrand | Recom |
| MEAN WELL IP67 1 Output LED Driver, 25V, 6 V, 17.5 W, 700mA LED DriverBrand | MEAN WELL |
Key Features
- Open-frame, surface mount design for compact installation.
- Supports PWM and analogue voltage dimming for flexible brightness control.
- Wide input voltage of 36V dc ensures compatibility with various power supplies.
- High efficiency up to 96% reduces energy loss and heat dissipation.
- Short circuit and overtemperature protection enhance operational reliability.
- Operating temperature range from -40°C to +80°C for demanding environments.
- EMC filter built-in to minimize electromagnetic interference.
- Ideal for strip lighting, wall washers, and fluorescent tube replacement applications.
Product Description
Recom RCD-24-0.50/PL/B LED driver is a reliable, open-frame constant current power supply designed for high power white LEDs. Featuring a surface mount form factor and compact dimensions of 31 x 11.4 x 6.6 mm, it fits conveniently in constrained spaces typical of electronic and lighting integrations.
This driver supports a wide output voltage range from 2V dc up to 35V dc and delivers a stable 500mA current with a maximum power output of 17.5 W. The input voltage is 36V dc, suitable for standard DC power supplies.
Equipped with both digital PWM and analogue voltage dimming functions, it enables precise brightness control across a variety of lighting environments. The driver is protected against short circuits and overheating, ensuring long-lasting and safe operation.
Efficiency is rated at 96%, making it an energy-saving option that reduces overall power consumption. Its built-in EMC filter complies with industry standards by mitigating electromagnetic noise, suitable for installations in electrically noisy industrial or commercial environments.
The operating temperature range from -40°C to +80°C allows use in harsh conditions, giving versatility from indoor residential to demanding industrial lighting applications.
Typical applications include LED strip lighting, wall washers, and fluorescent tube replacements where low profile and narrow widths are required. This driver is RoHS compliant and carries the reliability expected from the Recom RCD-24 series.
Open-frame surface mount LED driver supports 17.5 W output power. Wide voltage range with 2V to 35V DC output and 36V DC input. PWM and analogue voltage dimming for versatile control. High efficiency of 96% and EMC filtered for noise minimization.
Protection features include short circuit and overtemperature safeguards. Operates reliably between -40°C and +80°C ambient temperatures. Compact dimensions and construction allow easy integration. Explore more LED Drivers and power electronics components at EnvMart for your industrial, commercial, and lighting system design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 17.5 W.
It requires an input voltage of 36V dc.
The output voltage range is from 2V dc to 35V dc.
It supports both PWM and analogue voltage dimming for flexible brightness control.
The dimensions are 31 x 11.4 x 6.6 mm, making it suitable for compact installations.
The operating temperature range is from -40°C to +80°C.
This driver has one output.
It features a surface mount design.
It includes short circuit and overtemperature protection to enhance operational reliability.
Yes, it is RoHS compliant.
The efficiency is rated at up to 96%, which helps reduce energy loss and heat dissipation.
