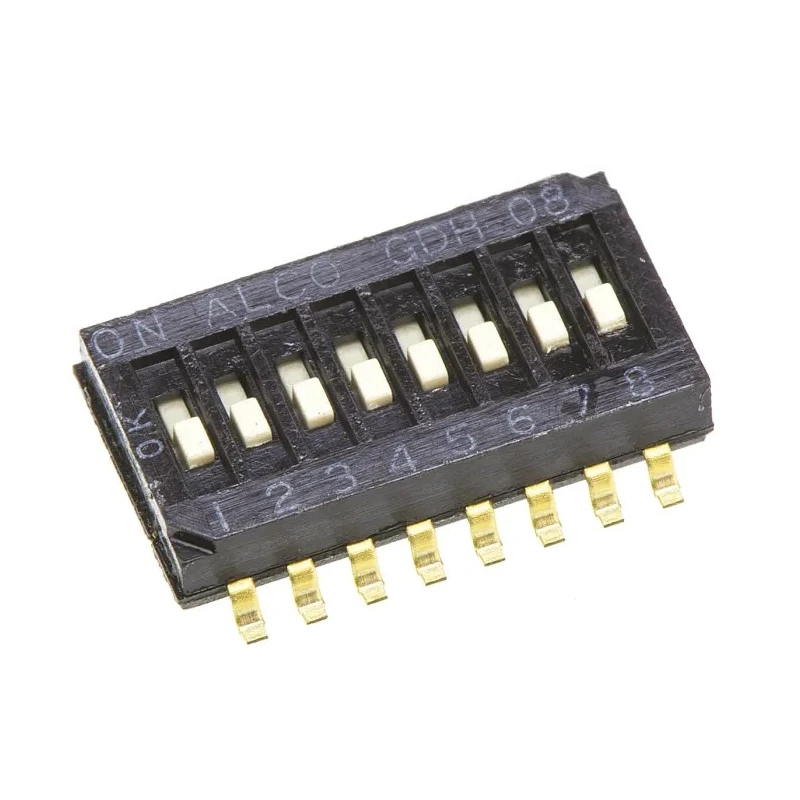

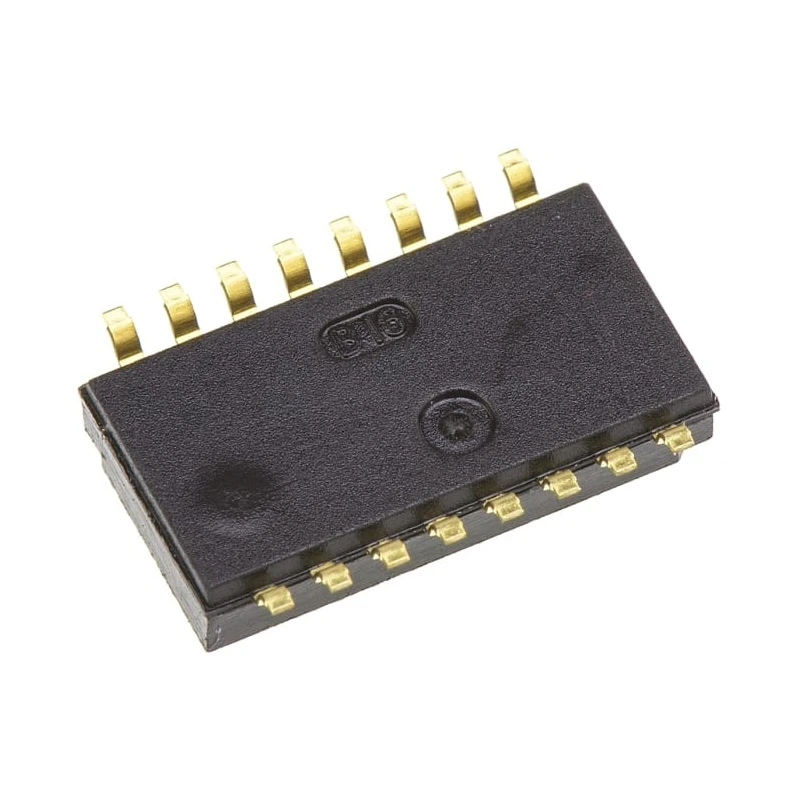

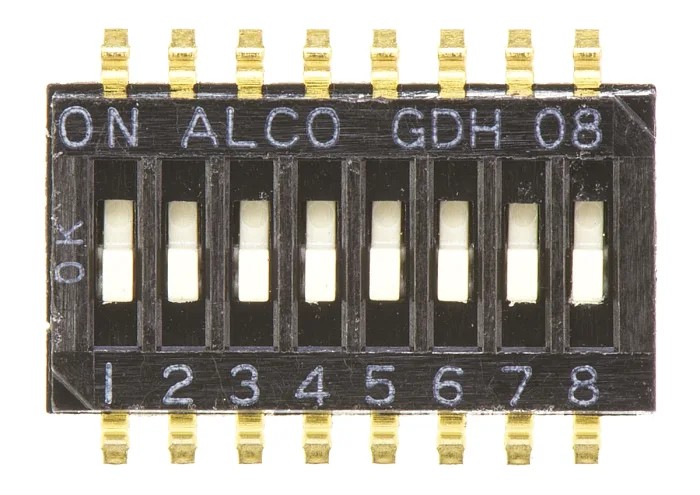

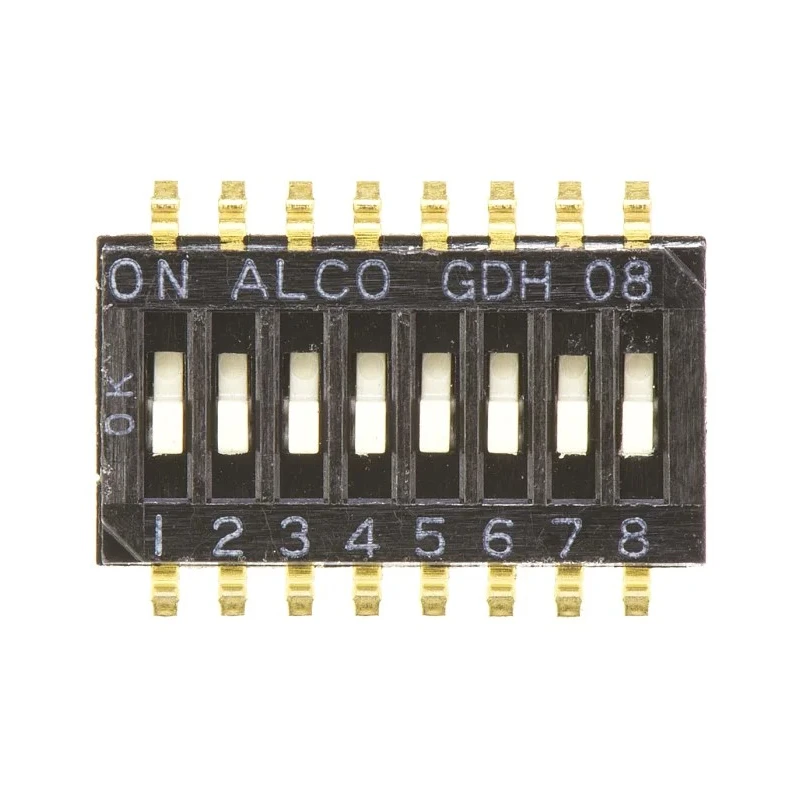

TE Connectivity Rocker Rotary Coded DIP Switch Surface Mount 1-1571983-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | Surface Mount |
| Actuator Type | Rocker |
| Insulation resistance | 100 MΩ @ 250Vdc |
| Contact Resistance | 100mΩ |
| Mechanical Life | 1000 Cycles |
Key Features
- Features a low contact resistance of 100mΩ for efficient switching.
- Provides insulation resistance of 100 MΩ at 250 Vdc for safety.
- Designed with a durable rocker actuator for easy toggling.
- Supports surface mount installation ensuring compact PCB layouts.
- Mechanical life rated for 1000 cycles ensuring reliability.
- Compact half pitch rocker design reducing PCB space requirements.
- Gold wiping contact system enhances corrosion resistance and signal integrity.
- Minimal contact resistance and high insulation suitable for precise applications.
Product Description
TE Connectivity 1-1571983-1 Rocker Rotary Coded DIP Switch Surface Mount is a precision rotary encoded DIP switch designed with a half pitch rocker actuator for compact PCB integration. It incorporates a gold wiping contact system to ensure superior conductivity and long-lasting operation, ideal for use in automation, electrical switching, and signal encoding applications.
This rotary switch provides a contact resistance of 100mΩ, enabling efficient electrical contact with minimal power loss. Its insulation resistance of 100 MΩ at 250 Vdc ensures safety and durability in demanding industrial and laboratory environments.
Designed for surface mount technology (SMT), this switch allows streamlined assembly and space-saving on printed circuit boards. The rocker actuator type ensures tactile feedback and ease of operation, suitable for precision control settings.
With a mechanical life of 1000 cycles, the switch offers reliable performance over repeated use in industrial automation, electrical panels, control systems, and instrumentation. The low profile and tape seal construction further support robust operation under typical manufacturing conditions.
Applications of the TE Connectivity 1-1571983-1 include industrial automation equipment, electrical and electronic control assemblies, and other commercial electronic products requiring rotary encoded control switches.
Half pitch rocker switches with a low contact resistance of 100mΩ. Gold wiping contact system enhancing conductivity and corrosion resistance. Surface mount technology for compact PCB placement. Mechanical endurance up to 1000 cycles.
Insulation resistance of 100 MΩ at 250 Vdc ensuring operational safety. Suitable for electrical, automation, and signal encoding applications. Low profile with tape seal for enhanced durability. Explore our range of Rotary Coded DIP Switches and related components for your automation and electronic projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of this model is 100mΩ, which enables efficient electrical contact with minimal power loss.
It has an insulation resistance of 100 MΩ at 250 Vdc, ensuring safety and durability in various applications.
This switch is rated for a mechanical life of 1000 cycles, providing reliable performance over repeated use.
It supports surface mount installation, allowing for compact integration on printed circuit boards (PCBs).
This model features a rocker actuator type, which provides tactile feedback for ease of operation.
It is suitable for applications in industrial automation, electrical control assemblies, and signal encoding.
The gold wiping contact system enhances conductivity and corrosion resistance, ensuring long-lasting operation.
It features a compact half pitch rocker design, which reduces PCB space requirements.
The switch's insulation resistance of 100 MΩ at 250 Vdc contributes to its operational safety in demanding environments.
Yes, it features a tape seal construction that supports robust operation under typical manufacturing conditions.
Surface mount technology allows for streamlined assembly and space-saving on printed circuit boards.
The country of origin for this model is India.
