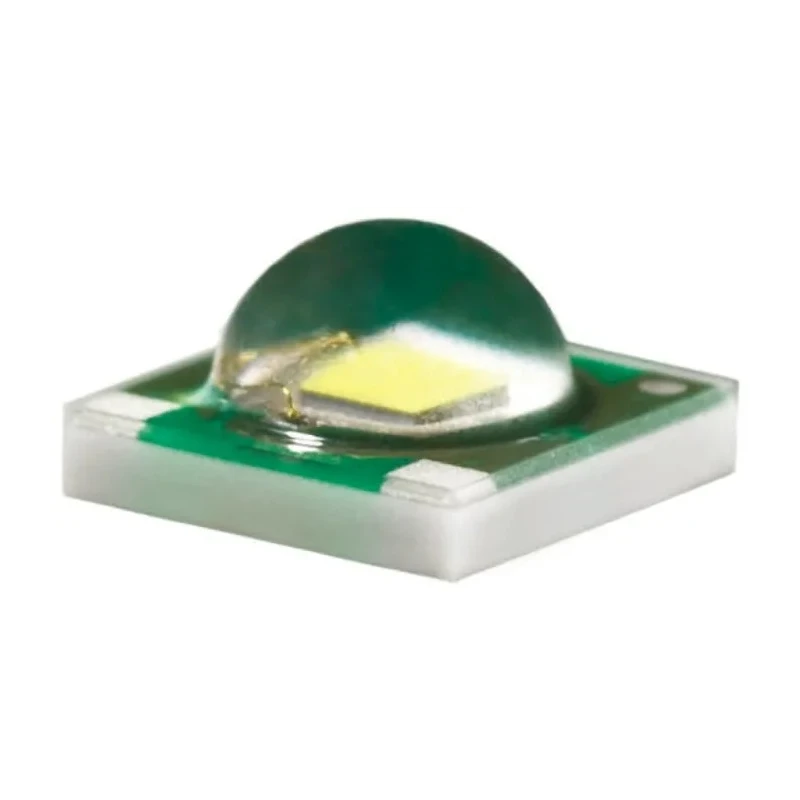

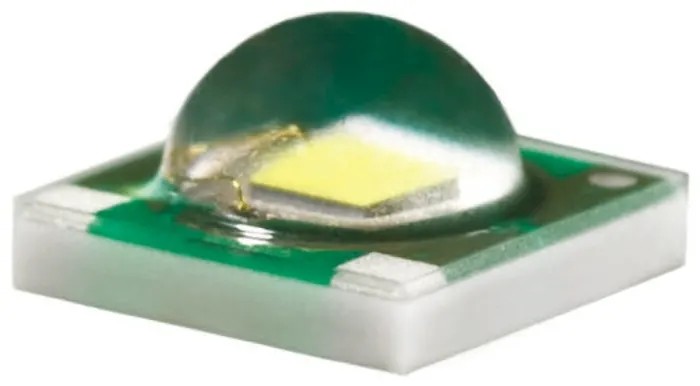

Cree LED 3.5 V White LED 3535 Surface XLamp XP-C XPCWHT-L1-0000-00C01

Cree LED XPCWHT-L1-0000-00C01 is a 3.5 V White LED designed with the XLamp XP-C series surface mount package, offering lighting-class performance and excellent reliability within a compact 3535 footprint.

This LED features a wide viewing angle of 115° with a round, clear lens that is 3.45 x 3.45 x 2 mm in size, making it suitable for diverse lighting applications, including portable lighting, indoor directional lighting, commercial displays, and emergency vehicle lighting.

The device supports a maximum forward current of 500 mA while maintaining low thermal resistance of 12°C/W, ensuring efficient thermal management and maintaining performance stability during operation.

The XLamp XP-C series provides an electrically neutral thermal path for ease of PCB design and heat dissipation, improving durability. This LED is reflow solderable and compliant with JEDEC J-STD-020C standards, making it compatible with automated manufacturing processes.

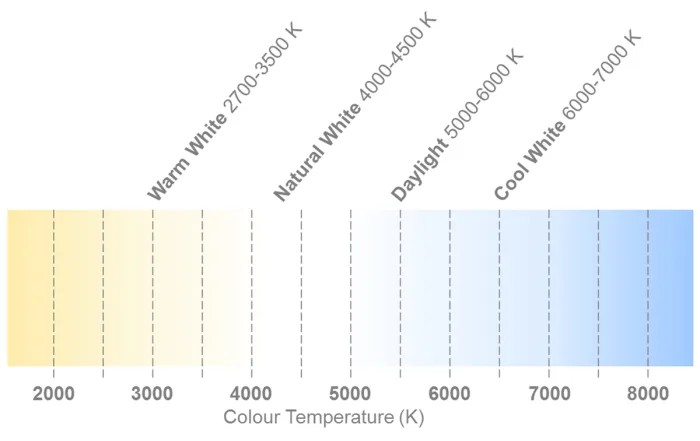

With a colour temperature of 10000K and a CRI of 70%, this LED delivers bright white light with reliable colour accuracy. It is RoHS and UL certified, confirming adherence to environmental and safety regulations. Packaged in tape & reel format, the product supports efficient automated assembly.

Applications for this component include industrial, commercial, laboratory, and electronic display uses, where reliable, compact, and high-performance white LEDs are essential. The LED emits white light with a colour temperature of 10000K.

Maximum forward current of 500 mA ensures efficient operation. Round lens shape with dimensions 3.45 x 3.45 x 2 mm provides uniform illumination. Viewing angle is 115 degrees suitable for wide illumination. Packaging comes in tape & reel format for easy automated placement.

The LED is reflow solderable and JEDEC J-STD-020C compatible. Electrical neutral thermal path enhances device reliability and heat dissipation. Colour rendering index (CRI) of 70% ensures acceptable colour accuracy. It is RoHS and UL approved for safety and environmental compliance.

For professionals seeking reliable white LEDs within the Cree XLamp XP-C series for their projects, EnvMart provides comprehensive selection and detaiLED technical information to support industrial and commercial use.
