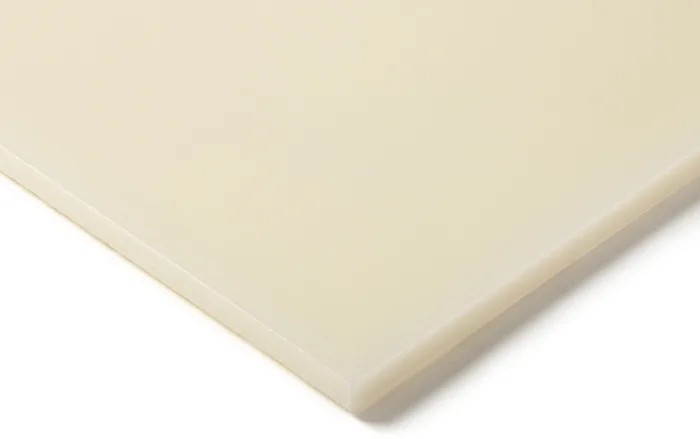

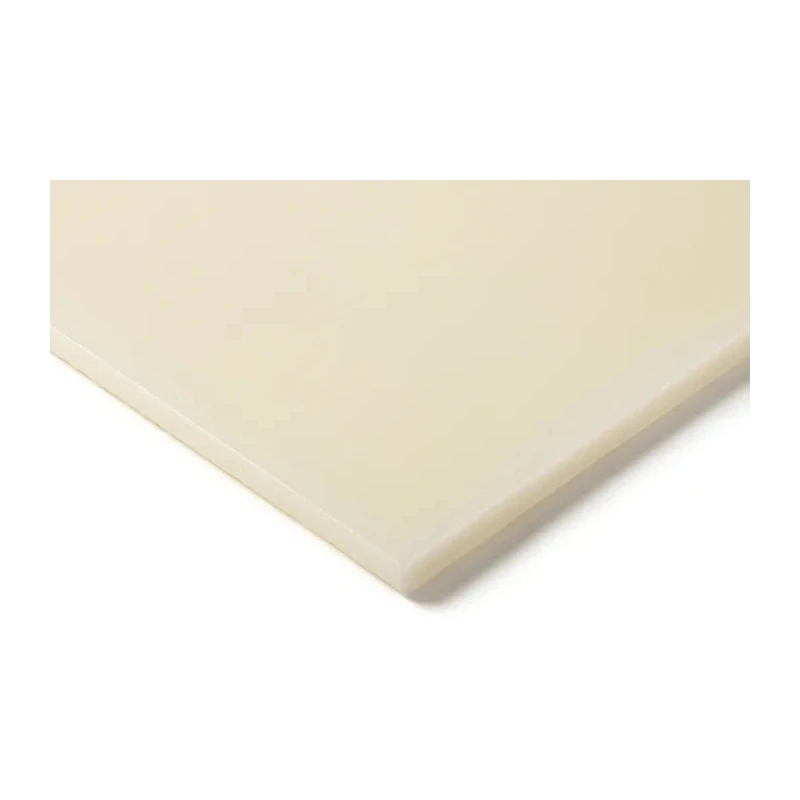

RS PRO Natural Polyamide Plastic Sheet 1 m x 500 mm x 16 mm 704-8153

RS PRO 704-8153 Natural Polyamide Plastic Sheet is a high-quality Nylon 66 (PA 66) semi-crystalline engineering plastic sheet measuring 1 meter length, 500 millimeters width, and 16 millimeters thickness. Manufactured in Germany, it offers excellent mechanical and thermal properties, making it suitable for diverse industrial applications.

This polyamide material is valued for its outstanding hardness, rigidity, and impact strength of 12 kJ/m², combined with low frictional characteristics that ensure smooth sliding and wear resistance. Its density is 1.14 g/cm³, and it features a Rockwell hardness rating of R 118. The sheet withstands maximum operating temperatures up to 100°C and is certified to DIN 50014 with a UL HB flammability rating.

The material resists water absorption at 8.5%, oils, greases, fuels, and many chemicals, ensuring durability in demanding environments. The thermal conductivity of 0.17 W/mK supports its use where thermal management is critical. The sheet does not have adhesive backing, allowing for custom bonding and welding as needed.

Applications include manufacturing of gear wheels, cam discs, friction strips, bearings, bushes, spindle nuts, piston guides, castors, impact and damping plates, conveyor screws, rope pulleys, and plug parts. It is widely used across electronics, automotive, food, textile, agricultural, packaging, aerospace, and building industries.

The solid sheet can be machined or cut for custom fabrication projects requiring a durable, wear-resistant, and thermally stable plastic component. Suitable tools vary depending on thickness, from utility knives on thin sheets to saws for thicker sections.

This sheet offers good rigidity and hardness. It features excellent slide and low friction properties for smooth mechanical operation. Resistant to abrasion, impact, many chemicals, oils, greases, and fuels. Displays outstanding wear resistance with thermal dimensional stability.

Withstands operating temperatures up to 100°C. Complies with DIN 50014 standards and UL HB flammability rating. Easy to weld and bond for fabrication versatility. Manufactured in Germany ensuring high quality and consistency.
