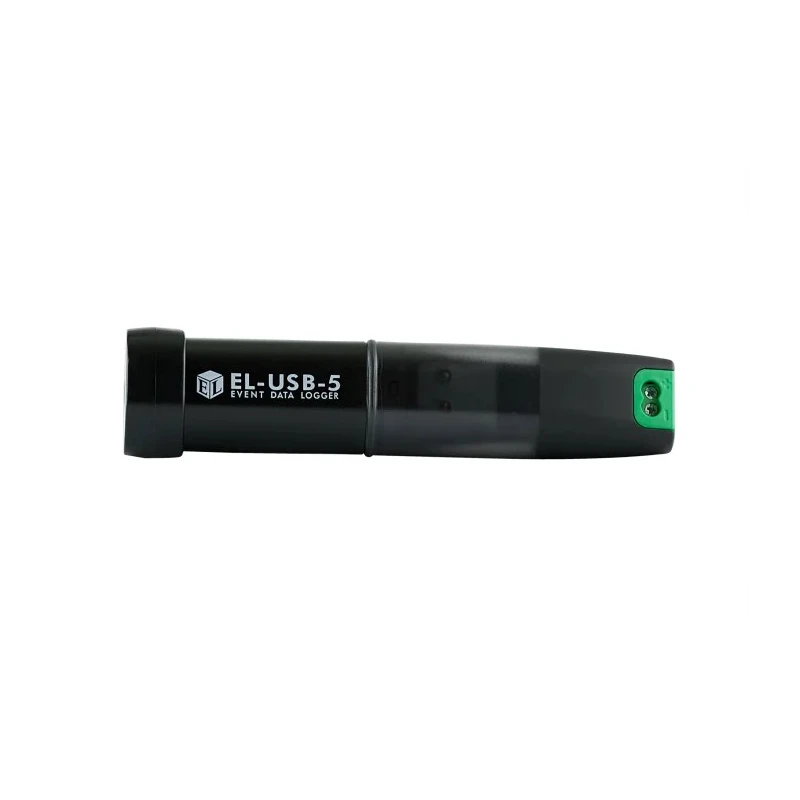

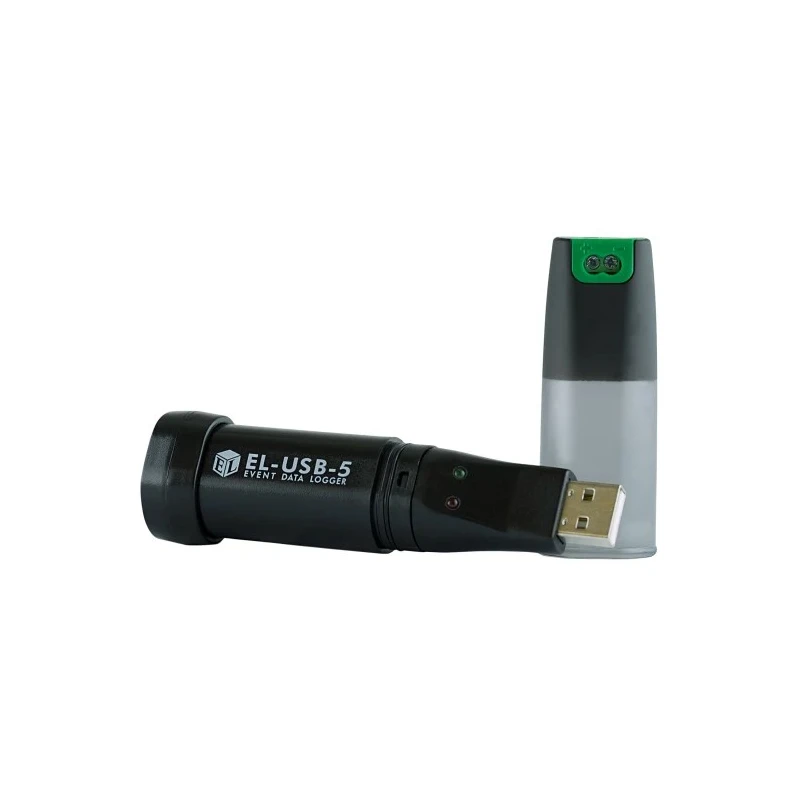

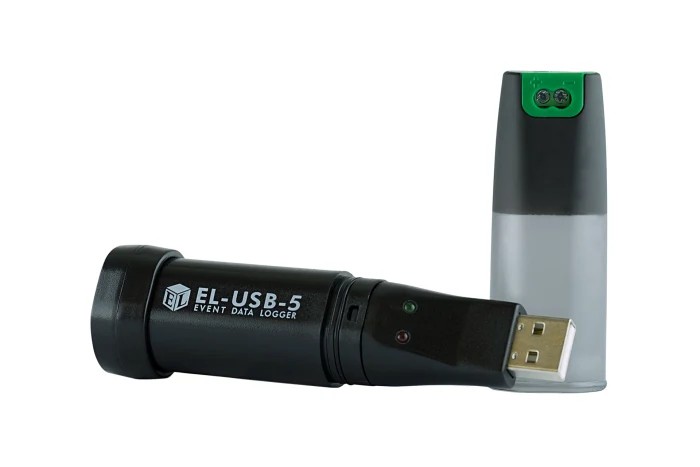

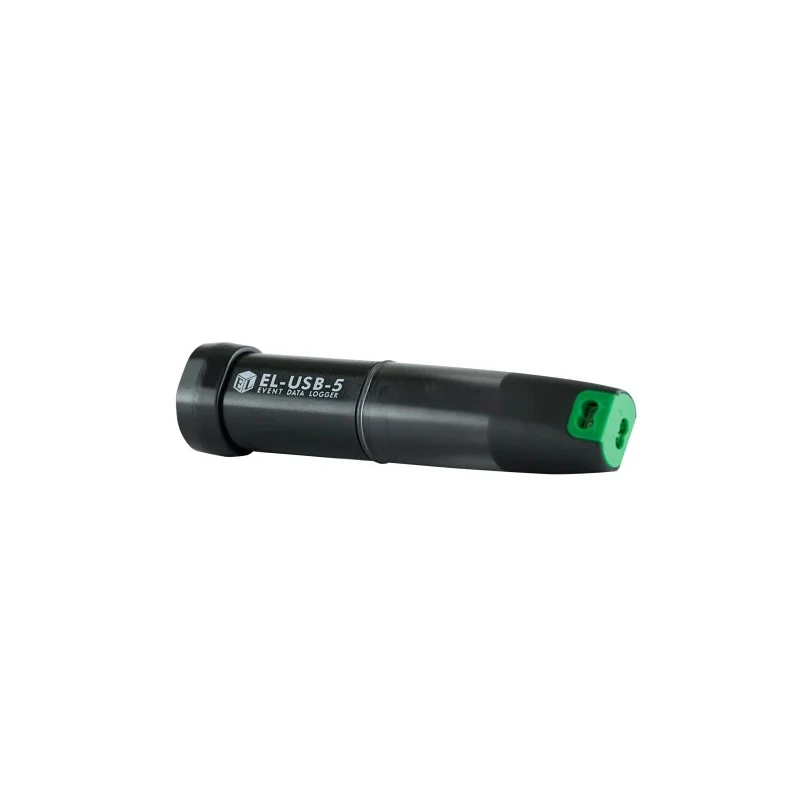

Lascar Event Data Logger USB Interface Single Channel with LED Display EL-USB-5

It provides reliable state change, event, and counter measurement parameters via an easy-to-use USB interface. The device integrates LED indicators for status monitoring and supports alarm notifications to alert users.

This data logger operates efficiently within a wide temperature range from -35°C up to 80°C, making it suitable for harsh and outside environmental conditions. It uses an AA lithium metal battery with a lifespan of up to 1 year, enabling long-term unattended operation. The lightweight and compact form factor, measuring 98 mm length and 26.8 mm width, fits conveniently in constrained spaces.

User-friendly EasyLog software allows quick data setup and downloading by connecting the device to any PC via USB. The logger can capture over 32,000 events or state changes and can operate at frequencies up to 2 Hz for events and 4 Hz for state changes. It also supports a maximum count frequency of 100 Hz when used in counting modes, providing high accuracy and resolution timing for critical applications.

The EL-USB-5 is ideal for industrial, laboratory, building facilities, and environmental data monitoring where event timing and counting accuracy are essential. Its screw terminal input detects voltage-free contacts using an applied voltage, enabling versatile input connection options without complex wiring.

Records up to 32,510 readings per channel for accurate data logging. USB interface for fast, convenient data transfer to PCs. Alarm function with LED status indication enhances user awareness. Wide operating temperature range from -35°C to 80°C.

Battery-powered with a lifespan of 1 year for extended deployments. Compact size (98 mm × 26.8 mm) for easy installation in tight spaces. High sampling frequencies: 2 events/second, 4 state changes/second, 100 counts/second.

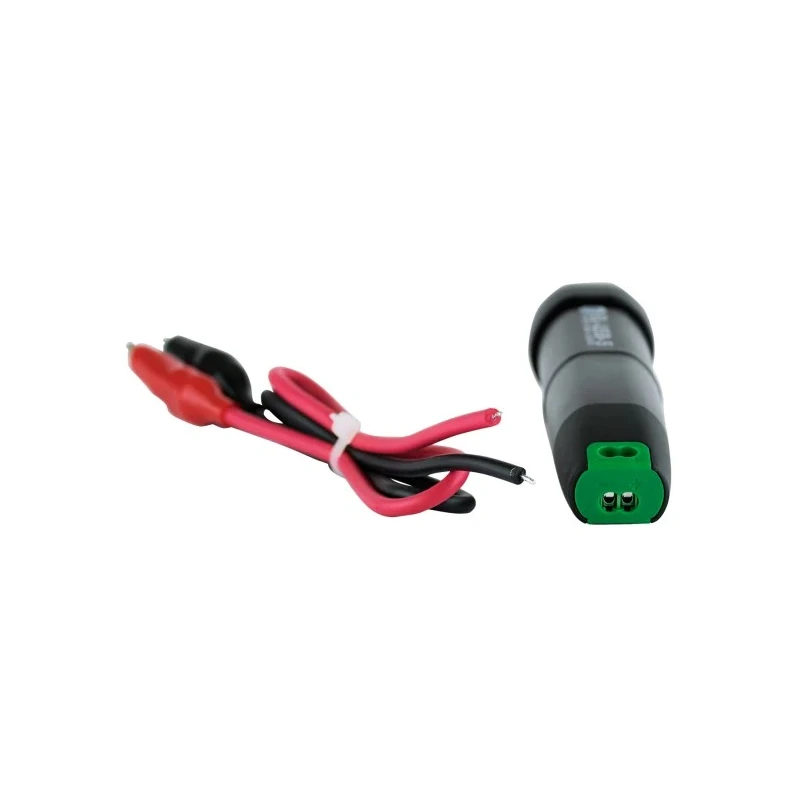

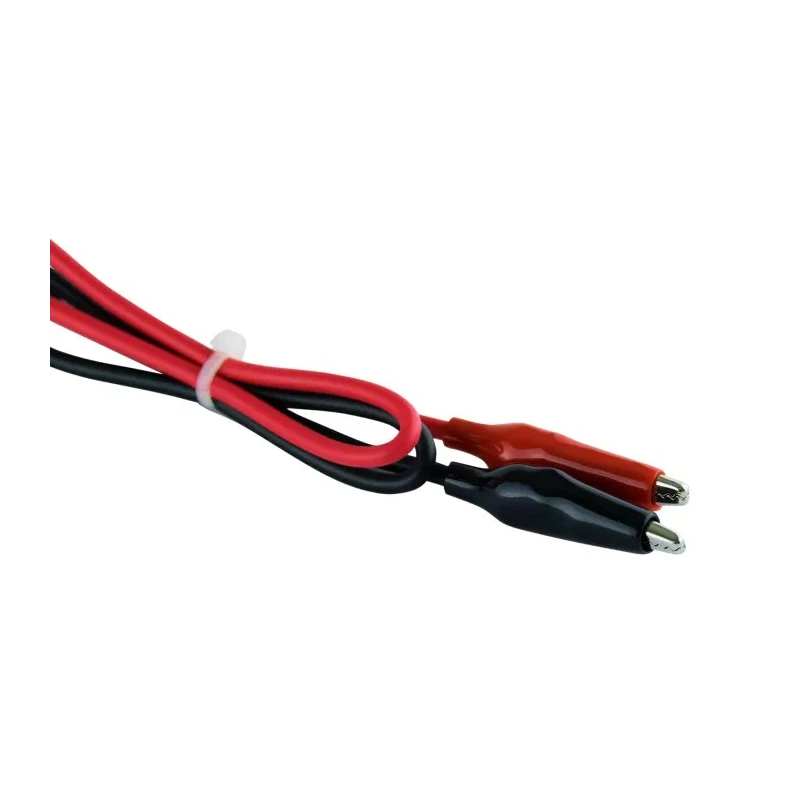

Set contains 1 Pc Lascar EL-USB-5 Event Data Logger, 1/2 AA battery, measurement leads, and a wall mount clip. This product is made in Indonesia and is supplied in new condition supporting various industrial and environmental measurement tasks. Experience seamless event data logging at high accuracy with this reliable device from Lascar. Browse more data acquisition and logging solutions at EnvMart for enhanced operational efficiency.
