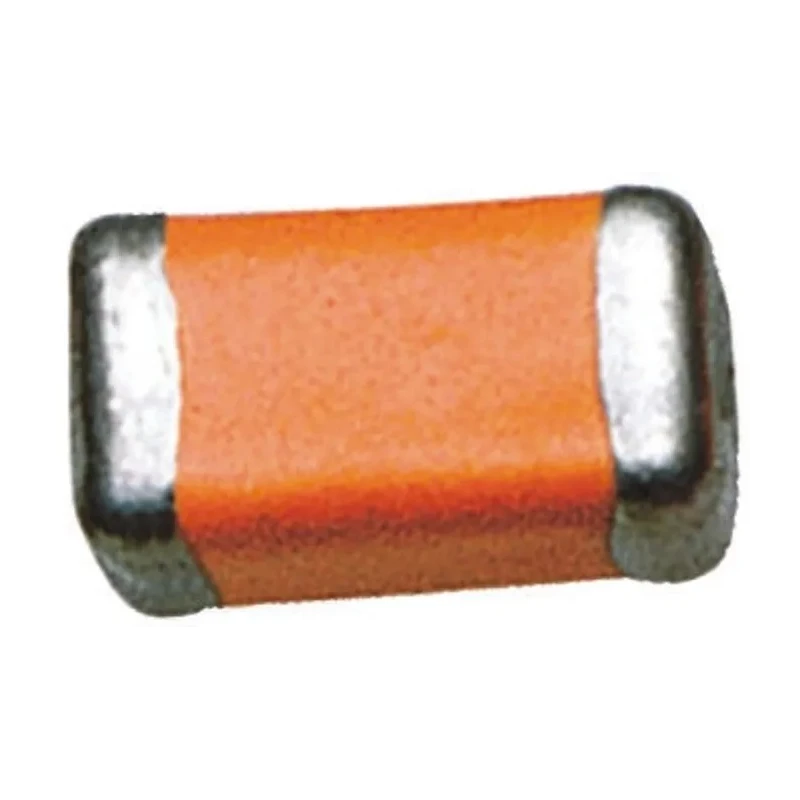

KYOCERA AVX 100 nF 50V dc ±10% Multilayer Ceramic Capacitor Surface Mount 12105C104KAT2A

KYOCERA AVX 12105C104KAT2A is a Multilayer Ceramic Capacitor designed for surface mount technology applications. This capacitor has a capacitance of 100 nF with a DC voltage rating of 50V, enabling its use in numerous electronic circuits involving power management and signal conditioning.

Featuring the X7R dielectric, this capacitor provides reliable temperature stability with capacitance variation within ±15% across the temperature range of -55°C to +125°C, making it suitable for industrial and commercial electronics.

The component is packaged in the 1210 case size, with precise dimensions of 3.2mm length, 2.5mm width, and 0.94mm height, facilitating compact PCB layout designs. The packaging on reels supports efficient automated pick-and-place assembly.

With a tolerance of ±10%, this standard series capacitor balances performance with cost-effectiveness for a wide range of applications. Its surface mount termination allows for easy soldering to printed circuit boards.

This capacitor does not meet automotive-grade standards, targeting general electronic manufacturing and hobbyist applications rather than automotive or highly regulated industries.

AVX high voltage chip capacitors are known for low leakage and low equivalent series resistance (ESR), making them ideal for snubbers in high frequency power converters, resonators in switched mode power supplies (SMPS), and high voltage coupling or DC blocking circuits.

Capacitance of 100 nF ensures reliable performance in electronic circuits. Voltage rating is 50V DC, suitable for various power applications. Manufactured in 1210 package size for standard surface mount assembly. Dielectric type is X7R providing temperature stability from -55°C to 125°C.

Packaging on reel facilitates automated assembly processes. Compact dimensions of 3.2mm length, 2.5mm width and 0.94mm height. Standard series with ±10% capacitance tolerance for general electronic use. Termination is surface mount type suitable for PCB soldering.

Not compliant with automotive standards, designed for general industrial applications. High voltage chip design with low equivalent series resistance for high frequency use.

Ideal for industrial electronics manufacturing, laboratory assemblies, and various electronic component manufacturing sectors. Browse further in Electronics Components on EnvMart for similar capacitors and complementary electronic passive parts.
