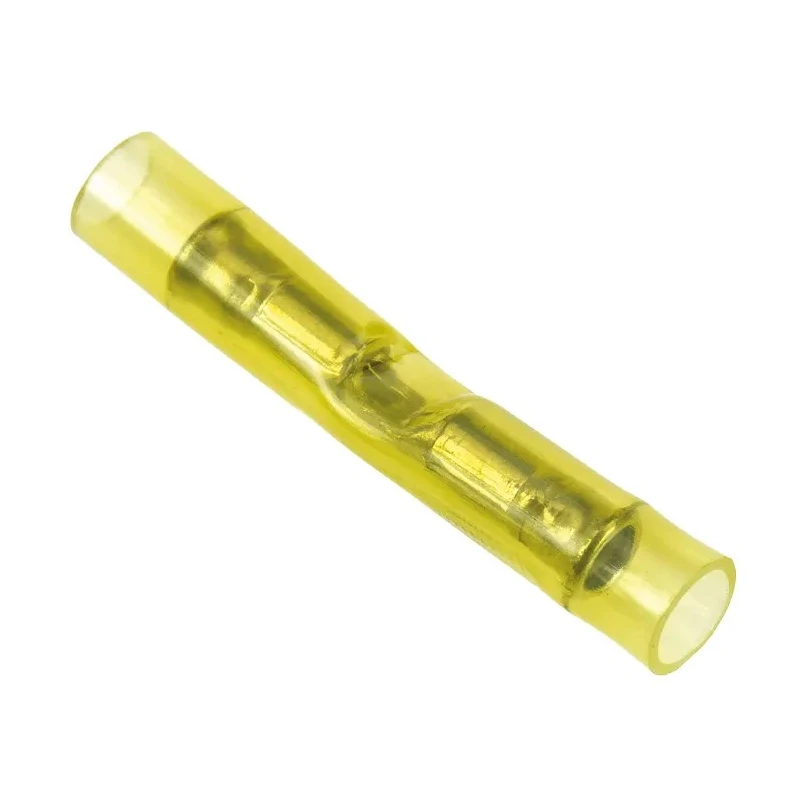

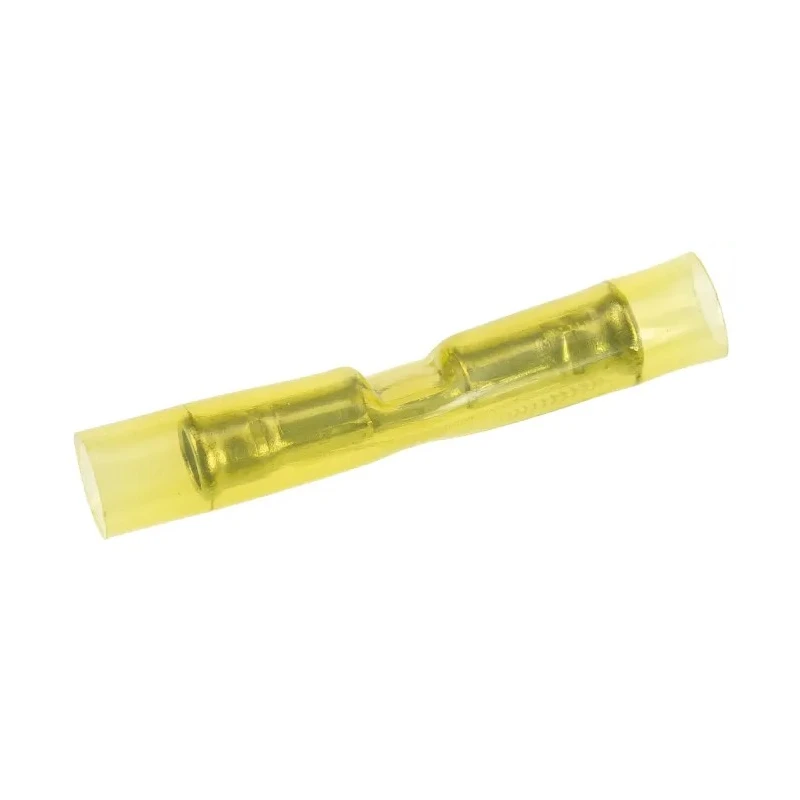

TE Connectivity PIDG Butt Splice Connector Yellow Insulated Tin 24AWG Crimp 22.61mm 323994
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 2.08mm |
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.64mm |
| Model | 323994 |
| Insulation | Insulated |
| Overall Length | 22.61mm |
| Contact Material | Copper |
| Series | PIDG |
| Termination Type | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 24AWG |
| Splice Type | Butt |
Key Features
- High conductivity copper body ensures reliable electrical contact.
- Copper sleeve enhances wire insulation support after crimping.
- Serrations in wire barrel provide maximum contact and tensile strength.
- Yellow nylon sleeve allows easy wire size identification.
- Designed for uniform crimp pressure and enhanced durability.
- Suitable for various industrial and aerospace wiring applications.
- Crimp termination offers secure mechanical and electrical connection.
- Compatible with minimum 26AWG and maximum 24AWG wires.
Product Description
TE Connectivity 323994 PIDG Butt Splice Connector Yellow is a precision-engineered insulated wire crimp splice connector designed for secure and reliable electrical connections. This connector features a high conductivity copper body and a tin-plated contact surface to ensure excellent conductivity and corrosion resistance.
Measuring 22.61mm in overall length, it is designed for 24AWG wires and has a crimp termination type for robust mechanical and electrical integrity. The connector includes a copper sleeve around the barrel, which improves wire insulation support after crimping, preventing wire insulation fraying or conductor breakage. Inside the barrel, serrations optimize contact and tensile strength, securing a dependable connection.
The yellow nylon sleeve is colour coded to assist with quick wire-size identification and tooling compatibility. Designed to enable uniform insulation thickness and crimp pressure, this PIDG connector is suited to demanding environments including instrumentation, control panels, lighting systems, power supplies, aerospace, transportation, motors, and appliances.
High conductivity copper body ensures reliable electrical contact. Copper sleeve enhances wire insulation support after crimping. Serrations in wire barrel provide maximum contact and tensile strength. Yellow nylon sleeve allows easy wire size identification.
Designed for uniform crimp pressure and enhanced durability. Suitable for various industrial and aerospace wiring applications. Crimp termination offers secure mechanical and electrical connection. Compatible with 26AWG to 24AWG wires.
Manufactured in the United States under strict quality standards.
This PIDG Butt Splice Connector is a trusted solution in industrial, aerospace, manufacturing, control instrumentation, and power distribution applications requiring strong and reliable wire splices. Browse similar Splice Connectors and power connector options at EnvMart for comprehensive wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is compatible with a maximum wire size of 24AWG.
It uses a crimp termination type for secure mechanical and electrical connections.
The overall length of this connector is 22.61mm.
The contact material of this connector is copper, which is tin-plated for enhanced conductivity and corrosion resistance.
The minimum wire size compatible with this connector is 26AWG.
It features a copper sleeve around the barrel that improves wire insulation support after crimping, preventing insulation fraying.
This connector is suitable for various industrial and aerospace wiring applications, including instrumentation and control panels.
The yellow nylon sleeve of the connector allows for easy wire size identification.
The thickness of the connector is 0.64mm.
This PIDG Butt Splice Connector is manufactured in the United States under strict quality standards.
Serrations inside the wire barrel provide maximum contact and tensile strength for a dependable connection.
The splice connector is yellow in color, which aids in quick identification of wire size.
