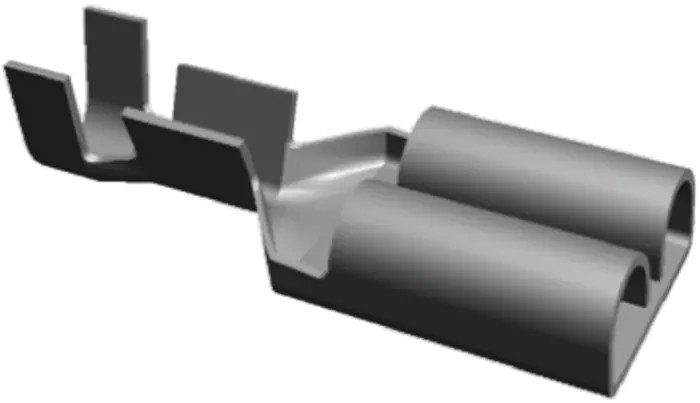

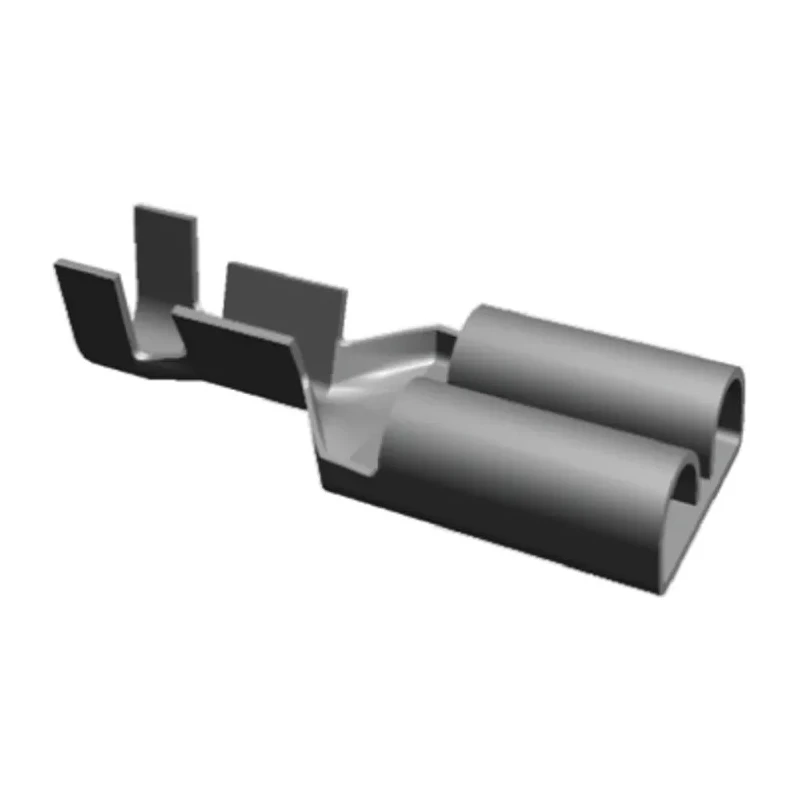

RS PRO FASTIN-FASTON 250 Black Uninsulated Female Crimp Spade Connector 6.35 x 0.81 mm Tab Size 5-160526-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Colour | Black |
| Orientation | Straight |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 19.2mm |
| Contact Material | Phosphor Bronze |
| Series | FASTIN-FASTON .250 |
| Termination Type | Crimp |
| Interfaces | lances for secure retention in housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 15AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Designed for quick application with correct crimp tooling.
- Features locking lances for secure retention in housing.
- Constructed with phosphor bronze contact material plated with tin for optimal conductivity.
- Compatible with 20 AWG to 15 AWG wire sizes.
- Black uninsulated design ensures ease of use and durability.
- Overall length measures 19.2 mm providing compact fit.
- Straight orientation for straightforward installation in various wiring applications.
- Ideal for appliance and automotive wiring harnesses.
Product Description
TE Connectivity 5-160526-9 FASTIN-FASTON 250 Black Uninsulated Female Crimp Spade Connector, featuring a 6.35 x 0.81 mm tab size, is engineered for reliable and efficient wire termination in industrial and automotive sectors.
This crimp spade connector uses a phosphor bronze contact material with tin plating to ensure excellent electrical conductivity and resistance to corrosion. The connector is uninsulated and black in color, offering easy identification and installation. With a straight orientation and an overall length of 19.2 mm, this connector provides precise mechanical fit and consistent electrical performance.
The presence of locking lances enhances secure retention within housings, preventing accidental disconnections and improving vibration resistance. Designed for wire sizes ranging from 20 AWG to 15 AWG (0.5 mm² to 1.5 mm²), it is suitable for various wiring applications such as in the appliance industry (electric ranges, washers, dryers) and automotive harness wiring.
Crimp terminations benefit from precisely controlled specifications which guarantee uniform reliability and tensile strength throughout the product life cycle. To ensure optimal results, the use of matched crimping tooling is recommended.
Quick application enabled by correct crimp tooling usage. Locking lances provide secure retention in housing assemblies. Phosphor bronze contacts with tin plating offer stable electrical conductivity and corrosion resistance.
Designed for wire size compatibility from 20 AWG to 15 AWG. Black, uninsulated design suitable for various industrial uses. Straight orientation supports straightforward wiring layouts. Robust mechanical and electrical performance under vibration and corrosion exposure.
Commonly applied in automotive and appliance wiring systems.
This Spade Connector is a reliable solution for industrial, automotive, electrical component manufacturing, and appliance wiring needs. For related product browsing, explore EnvMart’s extensive Electronics Components and Connectors categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this spade connector is 6.35 x 0.81 mm.
It is compatible with wire sizes ranging from 20 AWG to 15 AWG (0.5 mm² to 1.5 mm²).
The contact material is phosphor bronze, which is plated with tin for optimal conductivity.
The overall length of this spade connector is 19.2 mm, providing a compact fit for various applications.
This connector uses a crimp termination type, which requires the use of matched crimping tooling for optimal results.
It features locking lances that provide secure retention in housing assemblies, preventing accidental disconnections.
The connector has a straight orientation, which supports straightforward installation in various wiring layouts.
This model is commonly used in automotive wiring harnesses and appliance wiring systems, such as electric ranges and dryers.
The spade connector is black, which aids in easy identification during installation.
The tin plating on the contacts provides excellent electrical conductivity and resistance to corrosion, enhancing performance.
This spade connector is manufactured in India.
This connector is female, designed for use with compatible male connectors.
