RS PRO 9-Contact Male Interface Module D-Sub Connector DIN Rail Mount 1.5A 665-9699

Free Delivery in India | Lowest Global Shipping Charges

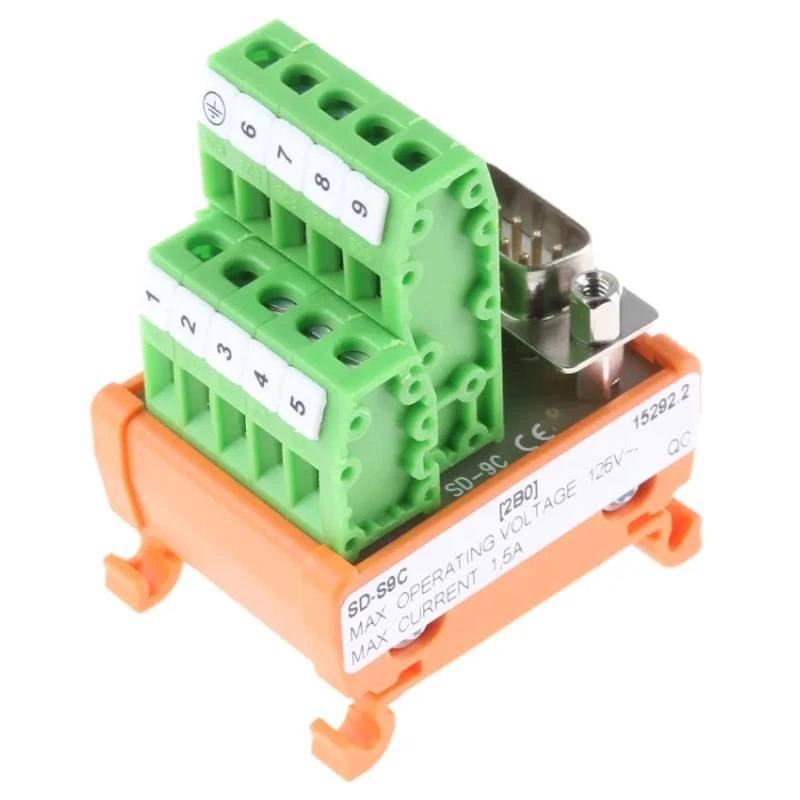

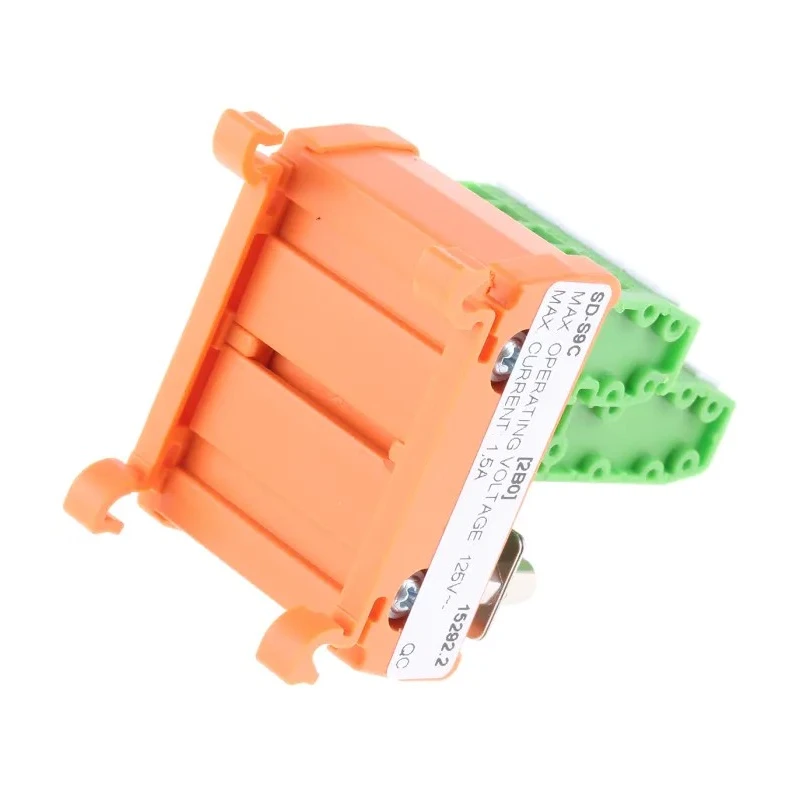

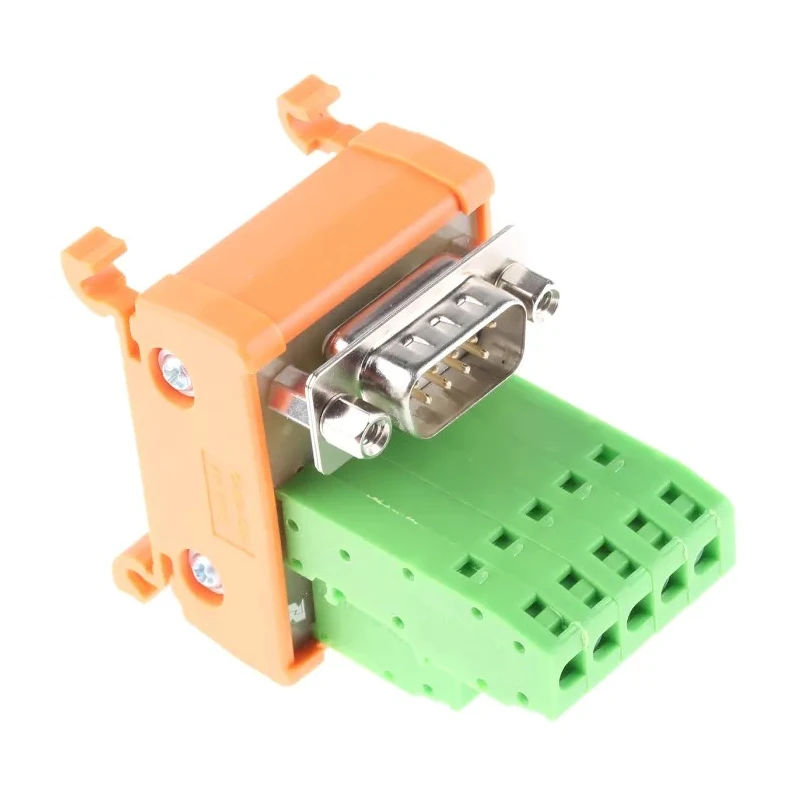

RS PRO 9-Contact Male Interface Module D-Sub Connector DIN Rail Mount 1.5A 665-9699

Name: RS PRO 9-Contact Male Interface Module D-Sub Connector DIN Rail Mount 1.5A 665-9699
Brand: RS PRO
SKU: 125325
Price: 65.8 USD
Availability: InStock



Category Interface Module Brand RS PRO Condition New

Specifications

Country of Origin	India
Voltage	125, 125V ac
Brand	RS PRO
Orientation	Straight
Current	1.5A
Length	37mm
Model	665-9699
Depth	47mm
Connector Type	D-Sub
Width	61mm
Gender	Male
Mount Type	DIN Rail
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-20°C
Wire size	14, 22AWG
Number of Contacts	9
Cable CSA	0.2, 2.5mm²
Test Proof Voltage	0.6kV

Key Features

This module features a 9-contact D-sub miniature plug for secure electrical connections.
Equipped with screw clamp terminals for easy and reliable wiring.
DIN rail TS35 mounting plate allows convenient installation and neat layout.
Supports a current rating of 1.5 A and voltages up to 125 V AC/DC.
Operates effectively in temperatures ranging from -20°C to +50°C.
Compatible with wire sizes from 0.2 to 2.5 mm² (AWG 22 to 14).
Provides test proof voltage of 0.6 kV ensuring safety and durability.
Ideal for manufacturing, industrial wiring, and control panel applications.

Product Description

RS PRO 665-9699 is a high-quality 9-contact male interface module featuring a D-Sub connector designed for efficient and reliable electrical wiring tasks. This interface module incorporates a male D-subminiature plug with screw clamp terminals, ensuring a solid electrical connection for wires sized from 0.2 to 2.5 mm² (14 to 22 AWG).

The module is mounted on a TS35 DIN rail, allowing quick and secure installation while maintaining a neat and organized setup. With a current rating of 1.5 A and a voltage tolerance of up to 125 V AC/DC, this module meets the requirements for a variety of industrial and manufacturing electrical control applications.

It operates reliably within a temperature range of -20°C to +50°C, making it suitable for varying environmental conditions typically found in factories and plants. The product dimensions of 37 mm length, 61 mm width, and 47 mm depth facilitate easy integration within control panels or electrical enclosures.

The test proof voltage of 0.6 kV enhances safety and ensures the module can withstand typical electrical stresses encountered in industrial settings. This module features a 9-contact D-sub miniature plug for secure electrical connections.

Equipped with screw clamp terminals for easy and reliable wiring. DIN rail TS35 mounting plate allows convenient installation and neat layout. Supports a current rating of 1.5 A and voltages up to 125 V AC/DC. Operates effectively in temperatures ranging from -20°C to +50°C.

Compatible with wire sizes from 0.2 to 2.5 mm² (AWG 22 to 14). Compact dimensions facilitate installation in tight spaces.

Interface Modules like the RS PRO 665-9699 are essential components in electronic assembly, manufacturing plants, and equipment requiring structured and safe electrical connections. The DIN rail mount allows easy modular installation or removal of components for maintenance or upgrades.
