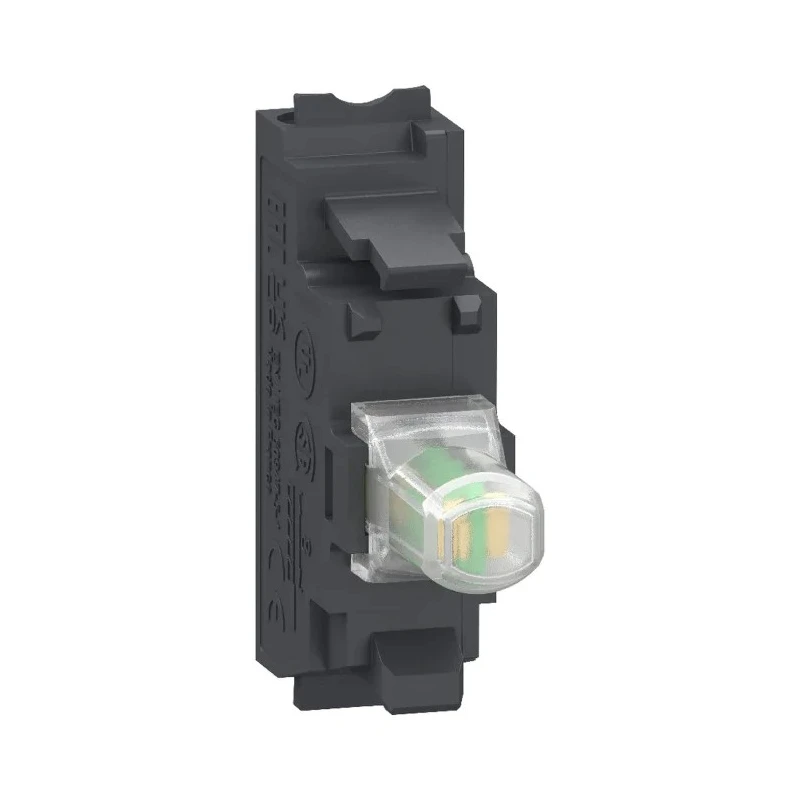

Schneider Electric Harmony XB Series Light Block, LED Illumination, White Light, 110-120V ZBVG15

Schneider Electric ZBVG15 Harmony XB Series Light Block is an LED illuminated assembly designed for push button switch applications requiring white light indication at 110-120 volts AC. This LED light block is ideal for industrial and electrical control panels where reliable visual status indication is critical.

Engineered to operate in harsh conditions, the block supports temperatures from minus 40°C up to 70°C. It features a screw terminal type connection system to ensure robust and secure wire fixing, accepting both stranded and solid wiring configurations with cable ends. The single lever action design simplifies cable clamp operation while preventing clamping on insulation to maintain connection integrity.

With compact dimensions of 56 mm length, 54 mm width, and 44 mm height, this light block fits efficiently into standard switch assemblies. The integrated white LED provides clear and energy-efficient illumination with included LED components.

The product conforms to a broad range of international standards including JIS C8201-1, UL 508, CSA C22.2 No 14, and EN/IEC 60947 series. This ensures compliance for safety and performance in global industrial and manufacturing environments.

This light block requires combination with compatible push button switch heads to enable integral LED functionality. The body/fixing collar is not included, enabling flexible assembly options.

Operates within a temperature range from -40°C to 70°C for versatile environments. Designed with screw terminal type for secure electrical connections. Compact dimensions: length 56 mm, width 54 mm, height 44 mm for easy integration.

Includes integral LED illumination with white light for clear visibility. Compatible with stranded or solid wires sized from 1x24AWG/0.2mm² to 2x14AWG/1.5mm². Single lever action opens both cable clamps for simplified wiring.

Complies with multiple international standards including UL, CSA, and IEC. Body/fixing collar not included, designed to be combined with corresponding switch heads.

Suitable for a wide range of applications including electrical panel assembly, automation control systems, industrial machine signaling, and other commercial electrical installations. Schneider Electric's Harmony XB Series is renowned for durability and optimal performance in demanding environments.
