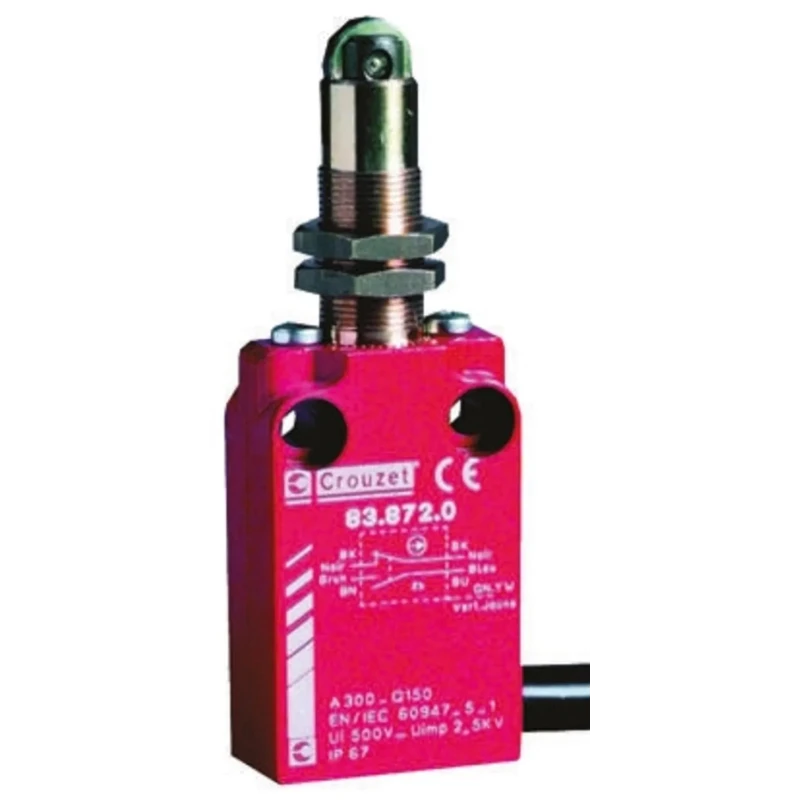

Crouzet 83872 Series Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, Metal Housing, 30V AC, 100mA 83872301
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crouzet |
| Length | 49mm |
| Model | 83872301 |
| Depth | 16mm |
| IP Rating | IP66, IP67 |
| Width | 30mm |
| Housing Material | Metal |
| Series | 83872 |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Top |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Plunger |
| Contact Type | Double Break |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Cable |
| Standards/Approvals | UL, IEC |
| Operating Force | 10N |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 30V ac |
Key Features
- This switch features a robust metal housing rated IP66 and IP67 for protection against dust and water ingress.
- The actuator is a plunger type suitable for precise position sensing.
- It supports a switching current of 100mA and operates at 30V AC and up to 125V DC voltage ratings.
- The device is equipped with a double-break contact arrangement ensuring reliable electrical performance.
- Operating temperature ranges from -25°C to 70°C, allowing use in various environments.
- The switch includes a 1 meter 5-core cable with a diameter of 7.3mm for easy installation.
- Mechanical life expectancy of 10 million cycles ensures durability in continuous industrial use.
- Designed for top mounting orientation with 20mm pitch mounting holes for secure fitting.
Product Description
Crouzet 83872301 is a plunger limit switch from the 83872 series, designed for precise and reliable position sensing in industrial automation and electrical control systems. This compact limit switch features a metal housing that provides excellent durability and resistance to harsh environmental conditions, with IP66 and IP67 ingress protection ratings, making it dust-tight and waterproof to a high degree.
The switch features a double-break contact type with a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact, allowing versatile electrical control options. It supports switching AC voltages up to 30V and DC voltages up to 125V, with a maximum switching current of 100mA. The actuator is a plunger type that offers short travel and consistent actuation force, measured at 10N.
The product is supplied with a 1 meter long cable fitted directly to the switch, simplifying wiring in control panels. Its compact dimensions (Length 49mm, Width 30mm, Depth 16mm) enable installation in tight spaces. The operating temperature range is from -25°C to +70°C, suitable for a wide range of industrial environments. With a mechanical life of 10 million cycles, it is engineered for long-term reliability in demanding applications.
Crouzet's 83872 series plunger limit switch complies with UL and IEC standards, ensuring international safety and quality compliance. It is ideal for use in industrial automation, manufacturing equipment, HVAC systems, and other control applications requiring precise limit detection.
This limit switch provides a durable metal case with excellent ingress protection. Its double break contact system offers high reliability for switching operations. The actuator's plunger design provides short travel and reliable actuation.
Compliance with UL and IEC standards guarantees quality and safety. Long mechanical life reduces maintenance and replacement frequency. Designed for easy cable connection with a fitted 5 core cable. Suitable for top mounting orientation in compact control setups.
Explore Crouzet products and Limit Switches at EnvMart for trusted industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 100mA.
It supports a switching AC voltage of up to 30V and a DC voltage of up to 125V.
This unit has an ingress protection rating of IP66 and IP67, making it dust-tight and waterproof to a high degree.
The operating temperature range for this limit switch is from -25°C to +70°C.
It uses a plunger type actuator, which provides short travel and consistent actuation force.
The dimensions are 49mm in length, 30mm in width, and 16mm in depth.
The mechanical life expectancy is 10 million cycles, ensuring long-term reliability.
It has a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
This model complies with UL and IEC standards for safety and quality.
It is designed for top mounting orientation.
The operating force of the actuator is 10N.
The switch is equipped with a cable terminal type, featuring a 1 meter long cable.
