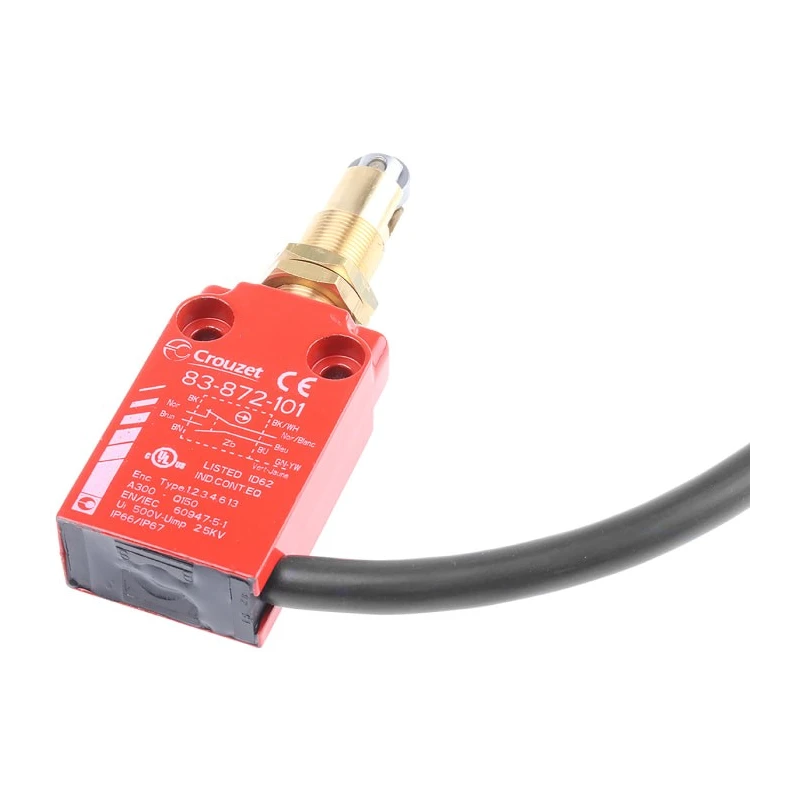

Crouzet 83872 Series Plunger Limit Switch 1 NO 1 NC, Metal Housing, IP66 IP67, 240V AC 6A 83872101

The Crouzet 83872101 from the 83872 Series is a plunger-type limit switch designed for robust industrial applications requiring precision and durability. Featuring a metal housing, this switch meets IP66 and IP67 ingress protection ratings, making it resistant to dust and capable of withstanding temporary immersion in water. It is equipped with one normally open (NO) and one normally closed (NC) double break contact element providing positive opening contacts that are electrically isolated, ensuring reliability and safety in operation under demanding conditions.

This limit switch supports switching currents of up to 6A at 240V AC and 125V DC, making it versatile for various control and automation systems. The mechanical life expectancy is rated at 28 million operations, demonstrating its suitability for long-term industrial use. It comes with a factory-fitted 1-meter 5-core cable (0.75mm² cross-section), simplifying installation through direct cable connection.

Operating temperatures range from -25°C to +70°C, allowing use in a wide range of environments. The switch features a top mounting orientation and uses 20mm pitch mounting holes for easy and secure attachment. The device complies with IEC and UL standards, including UL508 and UL50 approvals, ensuring it meets internationally recognized safety and performance criteria.

Additional technical specifications include an impulse voltage rating of 2500V and insulation voltage of 500V, with a thermal current (Ith) rating of 10A, ensuring electrical robustness. The plunger actuator type is ideal for applications requiring linear motion sensing, and the double break contact type enhances contact reliability by reducing arcing and contact wear.

This Crouzet plunger limit switch is widely used in electrical, automation, manufacturing, and process control environments, where dependable position feedback is critical. Its compact metal casing and cable output make it a practical choice for integration into control panels, conveyor systems, and machinery safety circuits.

Discover high-reliability Limit Switches like this in the Electronics & Electricals category at EnvMart, designed to meet demanding industrial and automation needs. Compact metal casing for durability in harsh environments.

Double break contact design ensures safety and reliability. IP66 and IP67 ratings provide robust ingress protection. Supports 6A switching current at 240V AC and 125V DC. Mechanical lifespan of 28 million operations for extended use.

Operating temperature range from -25°C to +70°C. Includes 1 meter fitted cable for easy connection. Compliance with IEC and UL standards ensures quality and safety. Top mounting orientation with 20mm pitch holes for secure installation.

Suitable for industrial automation, manufacturing, and electrical control systems.
