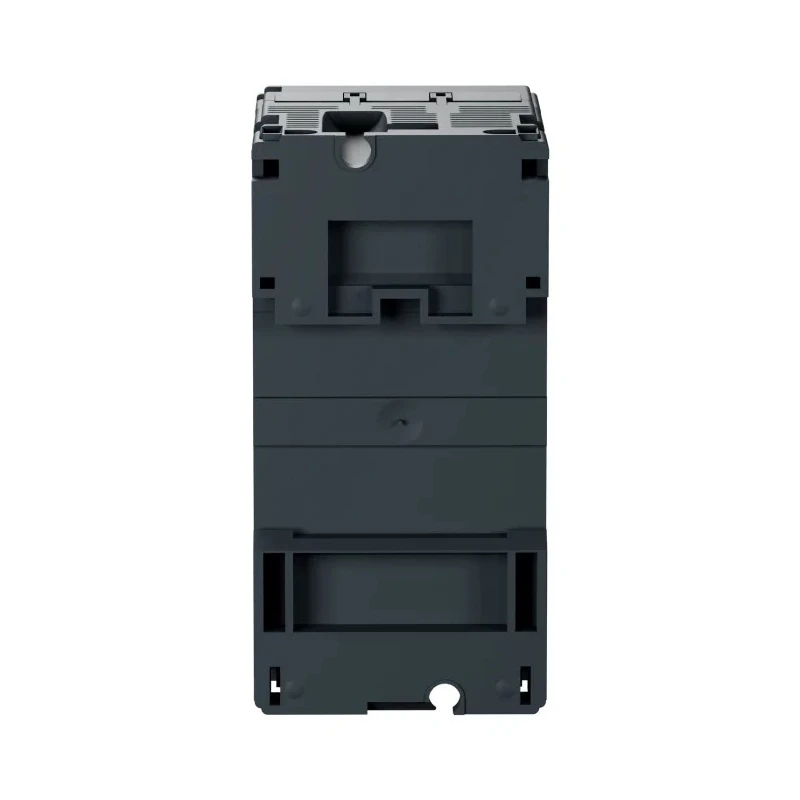

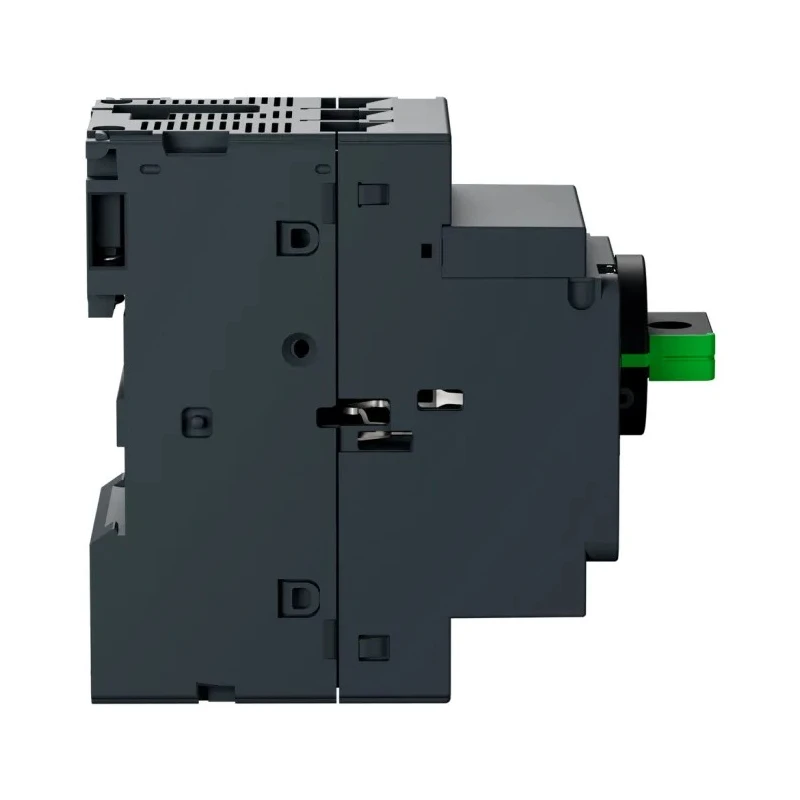

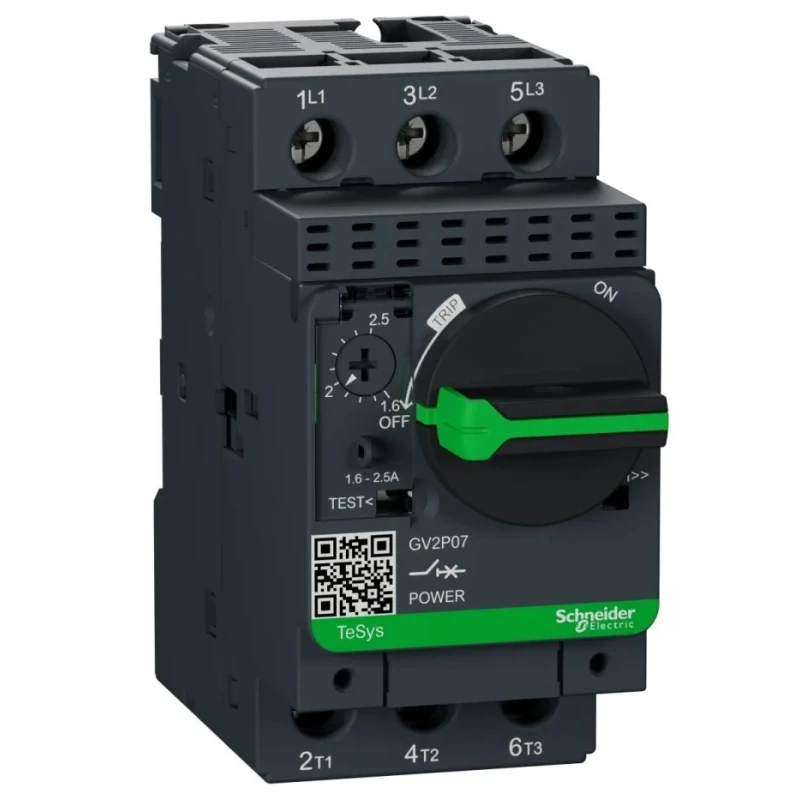

Schneider Electric TeSyS GV Motor Protection Circuit Breaker 1.6 to 2.5A, 690V, Thermal Magnetic, 3 Poles GV2P07
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schneider Electric |
| Model | GV2P07 |
| IP Rating | IP20 |
| Overall Length | 89mm |
| Current Rating | 1.6, 2.5A |
| Series | TeSyS GV |
| Overall Width | 45mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Thermal Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Overall Depth | 97mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Schneider Electric 600 V Motor Protection Circuit Breaker - 63 A, 50 kABrand | Schneider Electric |
Key Features
- Adjustable thermal protection range from 1.6 to 2.5 amperes for sustained overload safeguarding.
- Magnetic trip mechanism with a 33.5A rating for rapid short-circuit interruption.
- Rated 100% service breaking capacity ensuring dependable fault clearing across voltages.
- Durable design supports operation within -20°C to 60°C ambient temperatures.
- Screw-clamp terminals with 1.7 N·m torque for secure conductor connections.
- IP20 and IK04 protections facilitate installation within enclosed switchgear.
- Suitable for use in motor starter panels and automation control cubicles.
- Mounting options include DIN rail clipping and panel mounting with two M4 screws.
Product Description
Schneider Electric's GV2P07 Motor Protection Circuit Breaker is a 3-pole device designed to offer thermal magnetic protection for three-phase motors used in industrial applications. It supports a current rating range from 1.6 to 2.5 amperes and operates at a supply voltage of 690V. The breaker efficiently interrupts fault currents, limiting motor overloads and providing phase-failure sensitivity.
This device is engineered for rugged industrial environments, rated for continuous operation within ambient temperatures ranging from -20 °C to 60 °C. It dissipates approximately 2.5 watts per pole to maintain reliable performance. The motor protection system integrates thermal adjustment to protect against sustained overloads and magnetic tripping for swift short circuit clearing at 33.5A.
Installation versatility is offered through DIN rail mounting and panel mount options with M4 screws. Its compact dimensions (89mm length, 45mm width, and 97mm depth) combined with IP20 and IK04 protection ratings allow it to be securely installed inside enclosures and switchgear.
Designed for use in motor starter panels and automation systems, it suits retrofitting control cubicles in manufacturing plants and protects pumps, compressors, and other machinery motors up to 1.5 kW rating at 690V. The product meets an extensive range of international standards and approvals, including UL, CSA, CCC, BV, ATEX, RINA, REACH/RoHS, LROS, IECEE CB, EN/IEC 60947-2, EN/IEC 60947-4-1, EAC, and DNV GL.
Adjustable thermal overload protection between 1.6 and 2.5A. Magnetic short-circuit protection rated at 33.5A. 100% rated service breaking capacity for fault clearing. IP20 and IK04 mechanical protection ratings. Mounts on 35mm DIN rail or panel with screws.
Compact size with robust construction suitable for industrial environments. Conforms to multiple international electrical and safety standards. Ideal for motor starter panels and control cubicles. Designed for motors up to 1.5 kW at 690V.
Thermal magnetic sensing for accurate motor protection. Explore a broad range of Schneider Electric products at EnvMart for industrial automation and control gear solutions to enhance your electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating range for this model is adjustable between 1.6 to 2.5 amperes.
This circuit breaker operates at a maximum supply voltage of 690V.
It features thermal adjustment for sustained overload protection and a magnetic trip mechanism for rapid short-circuit interruption at 33.5A.
The overall dimensions are 89mm in length, 45mm in width, and 97mm in depth.
It can operate within an ambient temperature range of -20°C to 60°C.
It can be mounted on a 35mm DIN rail or directly on a panel using M4 screws.
This model has an IP20 rating, providing protection against solid objects larger than 12.5mm.
It is suitable for use in motor starter panels and automation control cubicles, protecting motors up to 1.5 kW at 690V.
It has a 100% rated service breaking capacity, ensuring reliable fault clearing across voltages.
It features screw-clamp terminals that require a torque of 1.7 N·m for secure connections.
This model conforms to multiple standards including UL, CSA, CCC, and IEC 60947-2 among others.
The sensing type for this model is thermal magnetic, which provides effective protection against overloads and short circuits.
