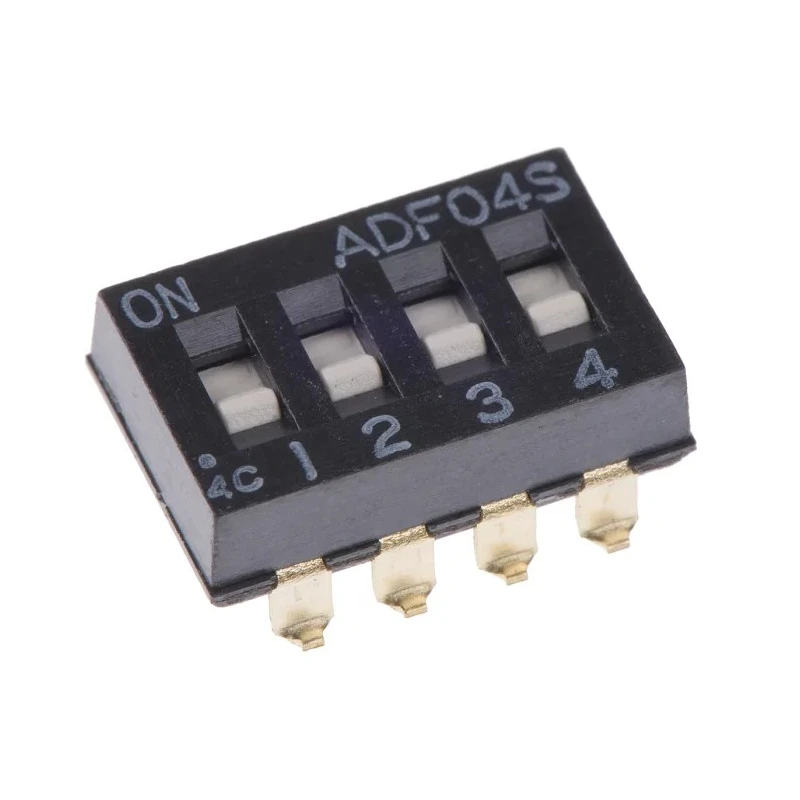

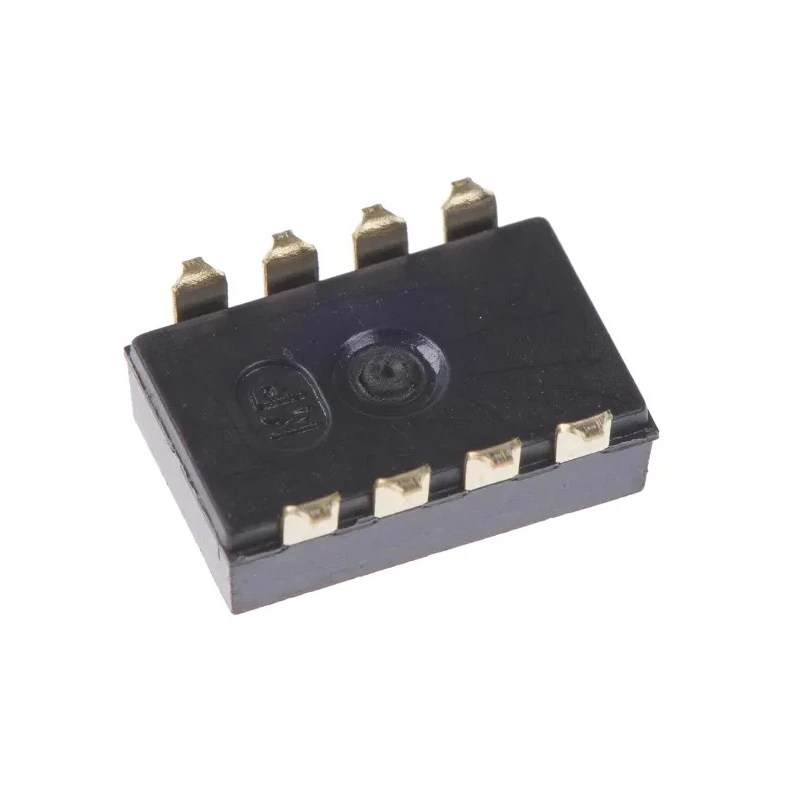

TE Connectivity Slide Rotary Coded DIP Switch Surface Mount ADF04S04

TE Connectivity ADF04S04 Slide Rotary Coded DIP Switch Surface Mount is engineered for reliable multifunctional switching in electronic circuits. Featuring a flush actuator slide design, this switch offers a robust mechanical and electrical performance suitable for industrial electronics and automation systems.

The high pressure wiping contact ensures durability. It supports aqueous or solvent cleaning without requiring a tape seal, enhancing maintenance and manufacturing efficiency. The switch also endures vapour phase reflow and wave soldering without compromising reliability.

Electrical characteristics include a low contact resistance of 50 milliohms, minimizing signal loss and ensuring efficient circuit performance. Insulation resistance is exceptionally high at 1000 Megaohms tested at 100 Vdc, which enhances safety and prevents leakage currents.

Designed for durability, this switch withstands mechanical wear with 1000 life cycles under normal operating conditions. It uses a dual-in-line package that facilitates easy integration onto printed circuit boards (PCBs) with surface mount technology (SMT).

The slide actuator enables precise control over switching positions, making it suitable for applications requiring rotary coded DIP switch functions such as setting addresses, configurations, or programming options in electronic devices.

This product is widely used in electronics, industrial automation, telecommunications, and instrumentation where reliable rotary coded switching is required. This switch features high pressure wiping contacts suited for aqueous or solvent cleaning without a tape seal.

It can withstand vapour phase reflow and wave soldering processes. Contact resistance is rated at 50 milliohms ensuring efficient signal transmission. Insulation resistance measures 1000 Megaohms at 100 Volts DC, providing excellent electrical isolation.

The mechanical life is rated at 1000 cycles, suitable for repeated actuation in electronic devices. Dual-In-Line configuration allows easy mounting on surface-mounted assemblies. The slide actuator type ensures precise and tactile operation for accurate switching.

Ideal for applications in electronics, automation, and electrical switching systems. Explore the comprehensive range of Rotary Coded DIP Switches and related components at EnvMart for your industrial and commercial electronic assembly needs.
