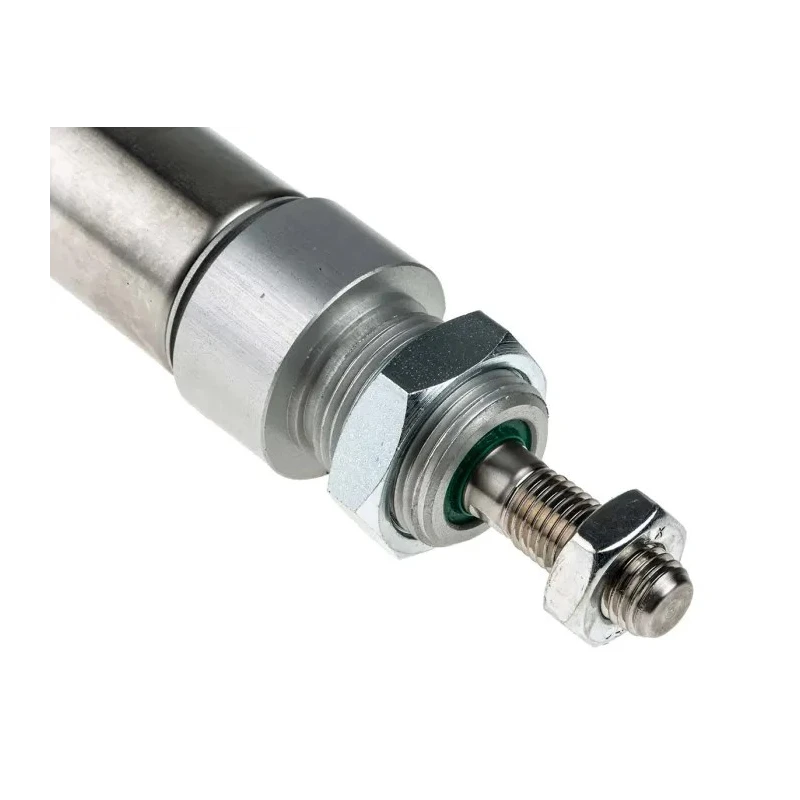

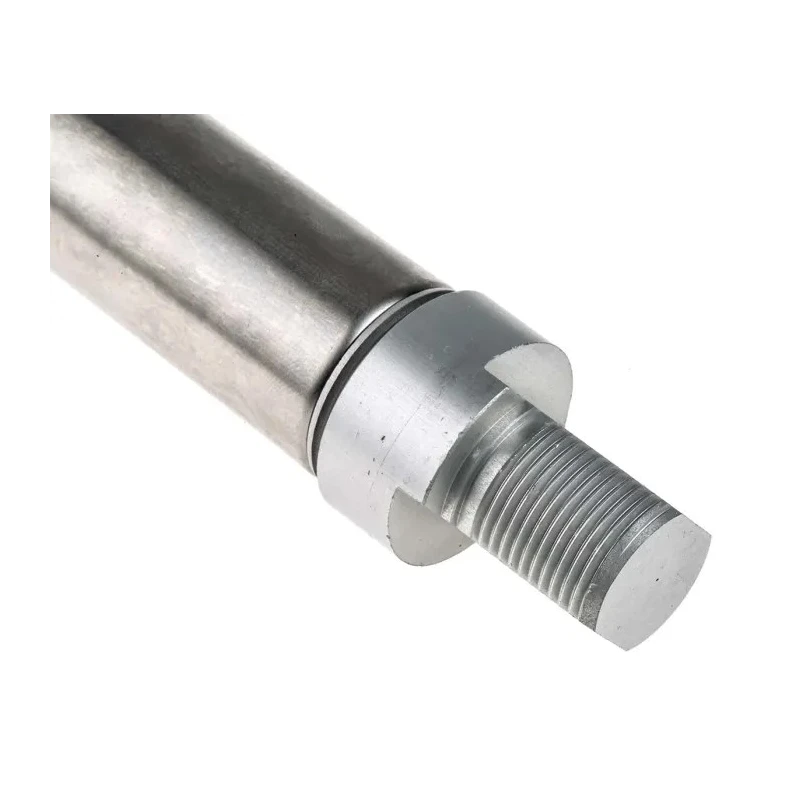

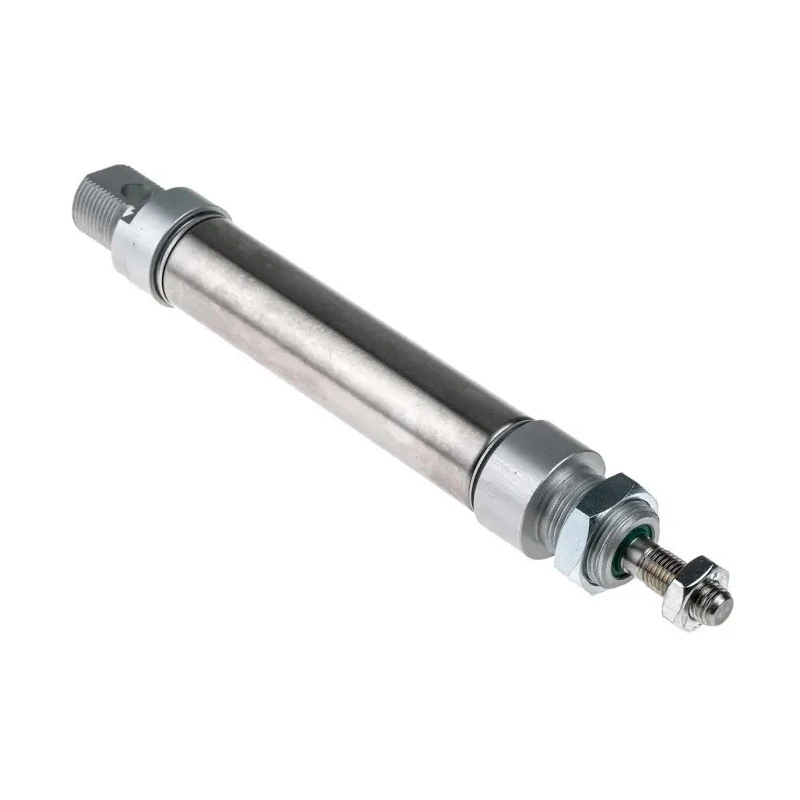

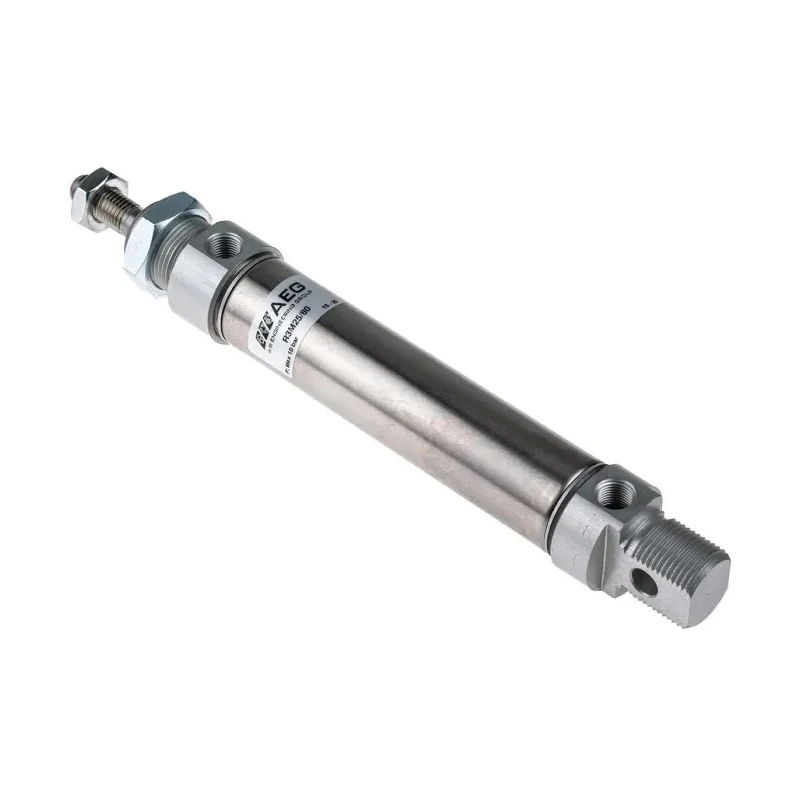

SMC RS PRO Pneumatic Piston Rod Cylinder 25mm Bore 80mm Stroke ISO 6432 Series Double Acting 304-3606

SMC 304-3606 Pneumatic Piston Rod Cylinder is a precision-engineered pneumatic actuator with a 25 mm bore and an 80 mm stroke length, conforming to ISO 6432 standards. This double acting cylinder controls airflow in both directions, making it ideal for automation systems requiring reliable linear movement.

The cylinder’s body is crafted from high-grade stainless steel, providing excellent corrosion resistance and durability in harsh industrial environments. Its single-rod design includes a female piston rod gender with an M22 x 1.5 metric threaded rod to facilitate easy integration with existing assemblies.

The buffer cushioning feature enhances the smoothness of operation and reduces mechanical shocks at the end of the stroke, contributing to prolonged equipment life. The pneumatic roundline cylinder is compatible with lubricated and non-lubricated compressed air, delivering flexibility for a variety of pneumatic systems.

Operating reliably within a pressure range up to 10 bar and a temperature span from -20°C to 80°C, it performs well across diverse industrial applications such as HVAC systems, vacuum pumps, automation manufacturing, and material handling.

The cylinder uses pre-lubricated nitrile rubber seals to prevent air leakage, and its anodised aluminium end caps and sintered bronze nose bearings improve lubrication and resist corrosion. It adheres to RoHS compliance regulations and electrostatic control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 ensuring safety in sensitive environments.

Double acting cylinder manages airflow in both directions efficiently. Constructed with durable stainless steel body ensuring corrosion resistance. Buffer cushioning type improves stroke damping and reduces wear. Suitable for use with lubricated or non-lubricated compressed air.

Maximum operating pressure is 10 bar for high-performance operation. Temperature range from -20°C to 80°C for versatile industrial environments. Features a single rod with female piston rod gender and M22 x 1.5 metric thread size.

Complies with RoHS and ANSI/ESD electrostatic control standards for safety and reliability. Includes mounting lock nut and piston rod lock nut as end-of-stroke buffers for secure installation.

This pneumatic piston rod cylinder is suitable for industrial pneumatic systems across laboratory, manufacturing, HVAC, and commercial automation sectors. Its reliable construction and compliance with industrial standards make it a trusted choice for precise pneumatic actuation.
