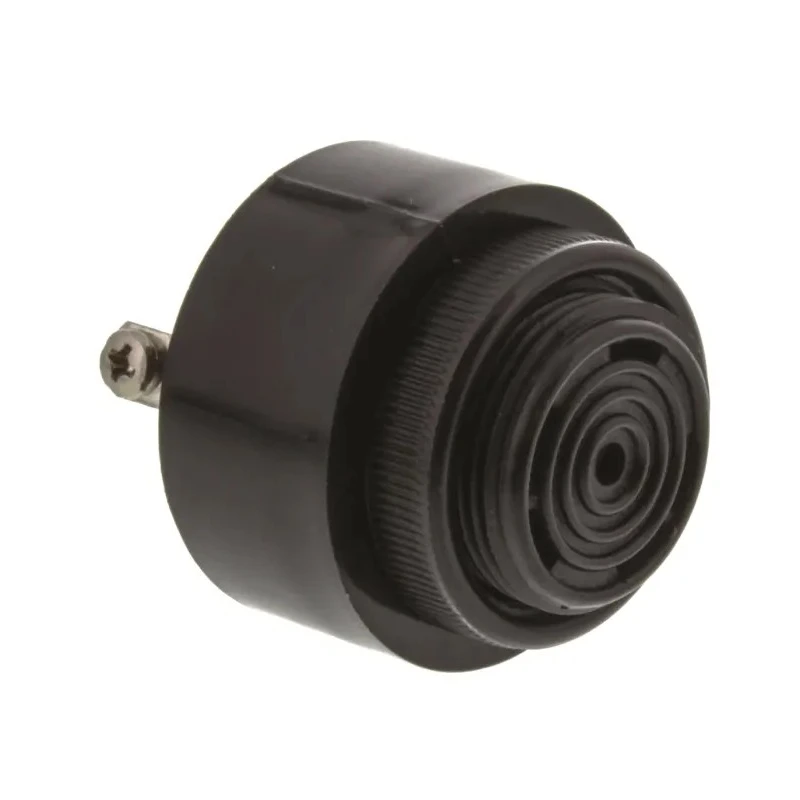

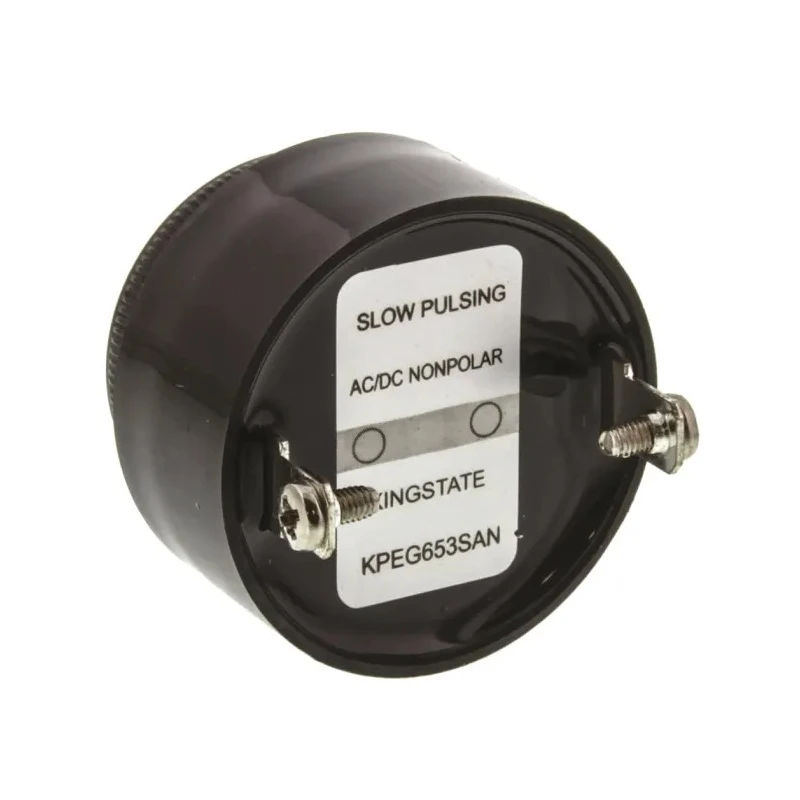

RS PRO 85 dB Screw Mount Slow Pulse Internal Piezo Buzzer 6 V ac/dc Min 28 V ac/dc Max 6221483P

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 85 dB Screw Mount Slow Pulse Internal Piezo Buzzer 6 V ac/dc Min 28 V ac/dc Max 6221483P

Name: RS PRO 85 dB Screw Mount Slow Pulse Internal Piezo Buzzer 6 V ac/dc Min 28 V ac/dc Max 6221483P
Brand: RS PRO
SKU: 124424
Price: 20.22 USD
Availability: InStock



Category Piezo Buzzers Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Diameter	42.5mm
Brand	RS PRO
Sound Level	85dB
Height	33mm
Model	6221483P
Drive Type	Internal
Mount Type	Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Maximum Frequency	3.3kHz
Maximum Supply Voltage	28V ac/dc
Minimum Supply Voltage	6V ac/dc
Supply Current	23mA
Tone Type	Slow Pulse
Minimum Frequency	2300Hz

Key Features

This piezo buzzer operates between 6 V ac/dc and a maximum of 28 V ac/dc voltage.
It features a slow pulse internal drive producing a clear 85 dB tone.
The device has a diameter of 42.5 mm and height of 33 mm for compact installation.
It operates reliably within temperatures from -30°C to +85°C.
The buzzer consumes a supply current of 23 mA for efficient performance.
Mounting is via a screw mount design allowing secure and easy installation.
Piezo buzzers like this are suitable for car equipment, doorbells, and fire alarms.
The frequency range is from 2300 Hz minimum to 3.3 kHz maximum.

Product Description

RS PRO 6221483P is a screw mount piezo buzzer designed to produce a slow pulse internal tone at 85 dB sound level. Supporting a supply voltage range from 6 V ac/dc to 28 V ac/dc, it provides versatility for numerous electronic applications requiring audible signaling.

This buzzer has a diameter of 42.5 mm and a height of 33 mm, making it compact for integration into electronic devices. The slow pulse tone ensures clear and distinct alerts that can be heard at a considerable distance, making it ideal for applications such as car equipment, doorbells, fire alarms, and other consumer electronics.

The device draws a supply current of 23 mA at rated voltage and operates reliably within an ambient temperature range from -30°C to +85°C, enabling use in industrial environments with varied thermal conditions. Its screw mounting facilitates secure installation and ease of replacement or maintenance.

Piezo Buzzers such as this one from RS PRO outperform magnetic buzzers in minimizing interference with surrounding circuitry. RS PRO guarantees quality by rigorous testing and compliance with electrostatic discharge handling standards to ensure durability and performance.

This piezo buzzer operates on a voltage range of 6 V ac/dc to 28 V ac/dc. It produces a slow pulse tone at 85 dB sound level with internal drive. Compact physical dimensions allow easy integration in electronic assemblies.

Operating temperature extends from -30°C to +85°C for broad application use. Characteristic supply current is 23 mA for reliable operation. The product is screw mount for robust and straightforward attachment. Frequency range spans from 2300 Hz to 3.3 kHz ensuring suitable tone variation.

Common industrial and consumer uses include alarms, signaling, and notification systems.

RS PRO offers trusted quality and industry tested components ideal for engineering and manufacturing applications. Browse related piezo buzzer components at EnvMart for complementary parts and replacements.
