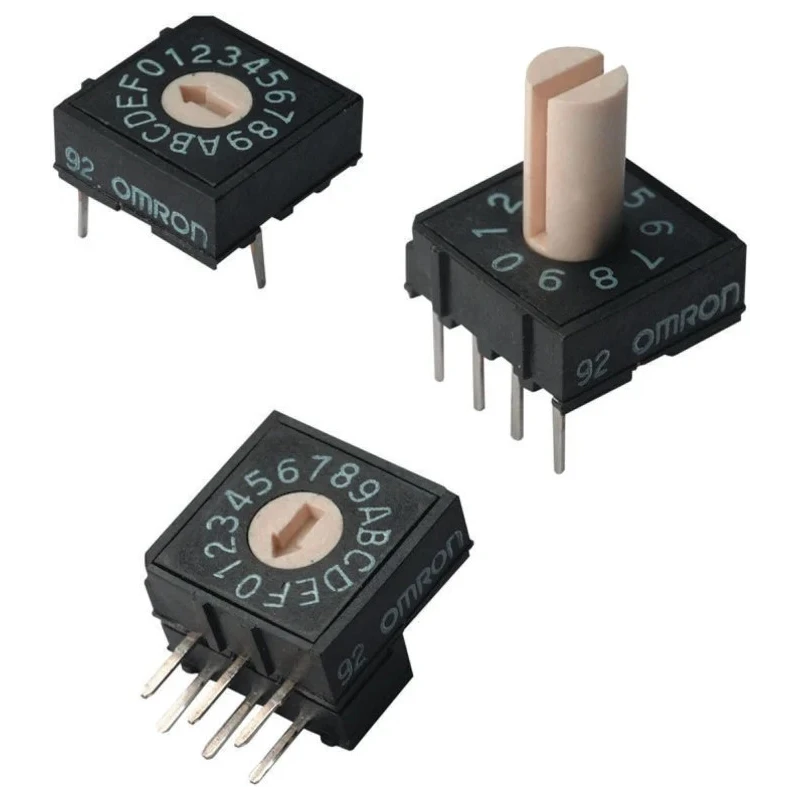

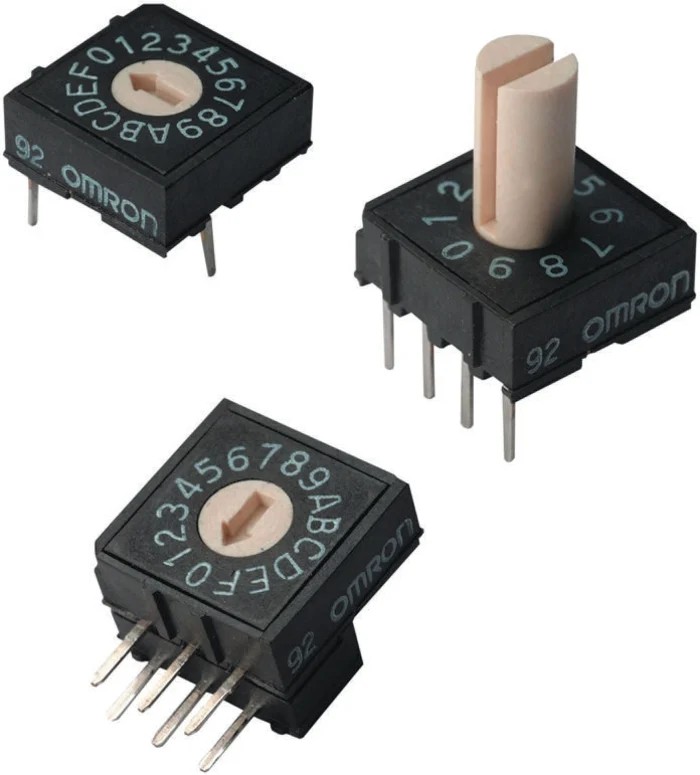

Omron Rotary Coded DIP Switch Through Hole IP60 25mA 24Vdc Contact Rating A6R-101RS CHN

Omron A6R-101RS CHN rotary coded DIP switch is a sealed rotary switch with a rotary shaft actuator, designed for through-hole PCB mounting in electronic applications. It features an IP60 rated O-ring sealed construction preventing ingress of dirt and dust, making it suitable for industrial and commercial automation scenarios.

The switch provides precise 10 or 16 position switching capability, allowing complex multi-position controls in equipment. It is ideally used in low power circuits with a contact rating of 25mA at 24Vdc, and maintains low contact resistance at a maximum of 200 milliohms to ensure reliable operation.

With a robust electrical life rated for 5000 steps per minute and insulation resistance of 100MΩ minimum at 250Vdc, it offers durable performance in diverse environments. Operating temperature ranges span -25 to +80 degrees Celsius, suitable for harsh industrial or laboratory conditions requiring stable switch operation.

The device pin spacing of 2.54mm supports standard PCB layout designs, facilitating easy integration and assembly. Applications include industrial automation, instrumentation, HVAC controls, laboratory equipment, and general electronic switching where accurate rotary position encoding is necessary.

This switch's sealed construction provides protection against dust ingress, enhancing reliability. Its multi-position rotary shaft actuator allows complex control schemes on PCBs. Suitable for industrial, laboratory, and manufacturing applications requiring precision switching.

Compact through-hole mounting design fits standard PCB manufacturing processes. The robust electrical life supports frequent switching cycles without degradation. Temperature ratings ensure performance in harsh or variable global environments.

Low contact and insulation resistance guarantee stable electrical performance over time.

Omron rotary coded DIP switches are trusted components in precision electronic assemblies. Explore more products in the Rotary Coded DIP Switch category at EnvMart to find optimal solutions for your application needs.
