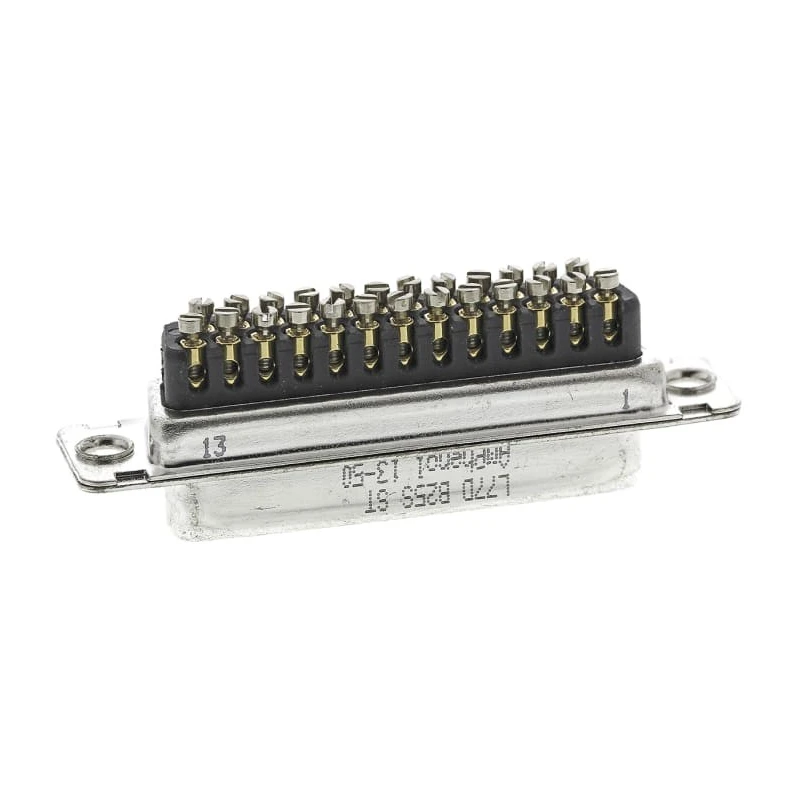

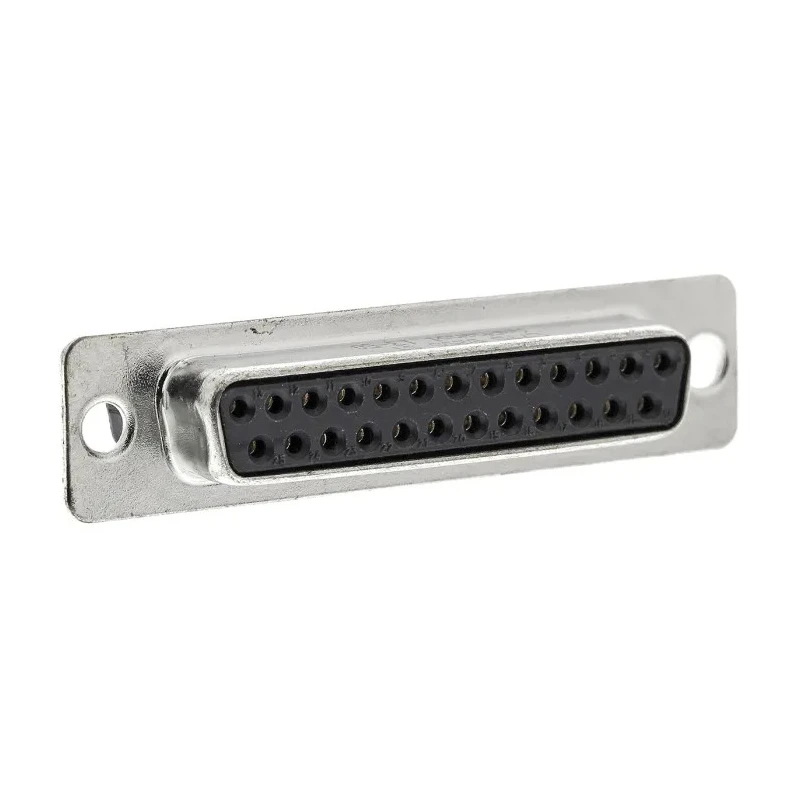

Amphenol Communications Solutions 25 Way Straight 2.76 mm Pitch Cable D-Sub Connector Female L77D B25S ST

Amphenol Communications Solutions L77D B25S ST is a high-quality 25 way straight cable D-Sub connector female designed for robust and reliable electronic connections. It features a 2.76 mm pitch and supports an operating voltage of 300V, making it suitable for industrial and commercial electronic applications.

The connector has 25 female contacts made from brass with gold over nickel plating to ensure excellent conductivity and resistance to corrosion. The housing is fabricated from durable steel, offering mechanical protection and longevity in demanding environments.

This connector supports a current rating of 7.5A and operates effectively within a temperature range of -55°C to 85°C, ensuring performance across varying conditions. The termination uses a screw type for secure attachment and easy wiring using standard tools.

Amphenol's D-Sub connectors are widely used in industries such as automation, control systems, building services including lighting and HVAC, and infrastructure applications like public lighting and remote control systems. Their 2-row configuration facilitates efficient connections in compact layouts.

The product complies with relevant standards including UL94-0 flame rating and RoHS, endorsing its safety and environmental adherence. It is ideal for field installation scenarios due to its straightforward mounting and wiring requirements.

The connector features 25 contacts for robust connection performance. Supports a current rating of 7.5A for power and signal transmission. Straight orientation with cable mounting type for easy installation. Female contacts made of brass with gold over nickel plating for corrosion resistance.

Steel housing offers mechanical strength and durability. Rated for 300V operating voltage, suitable for diverse applications. Wide operating temperature range from -55°C to 85°C. Screw termination ensures secure wiring without special tools.

Compliance with UL94-0 flame rating and RoHS standards. B25 contact size and 2.76mm pitch support standard D-Sub configurations.

For detailed design and mechanical integration support, 3D models, schematics, and footprints are available. This connector aligns with industry needs in electronics manufacturing, laboratory equipment, HVAC controls, and manufacturing automation.
