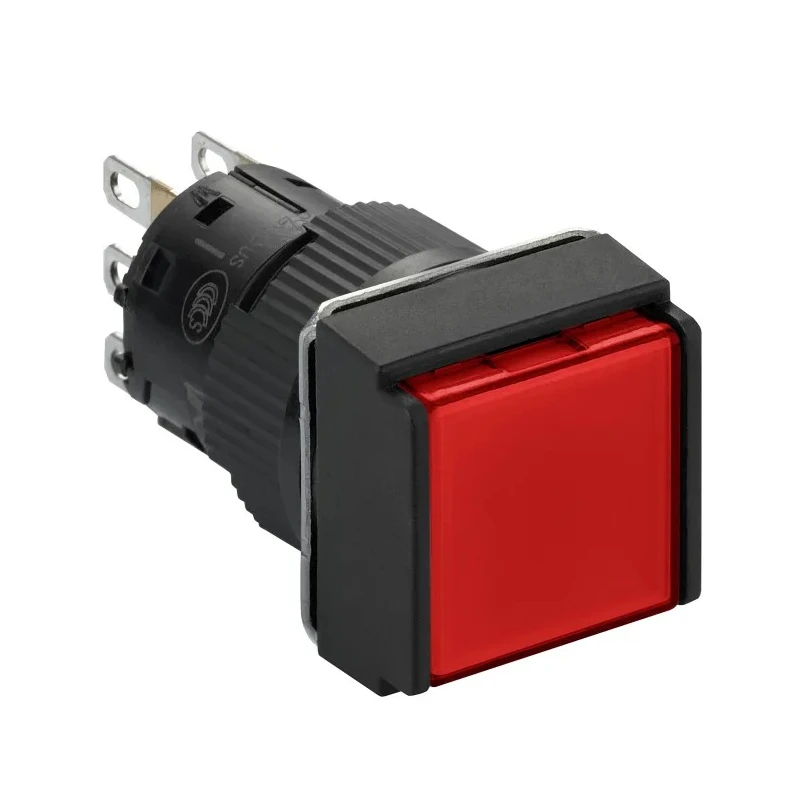

Schneider Electric Harmony XB6 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 16 mm Cutout XB6ECW4B1P

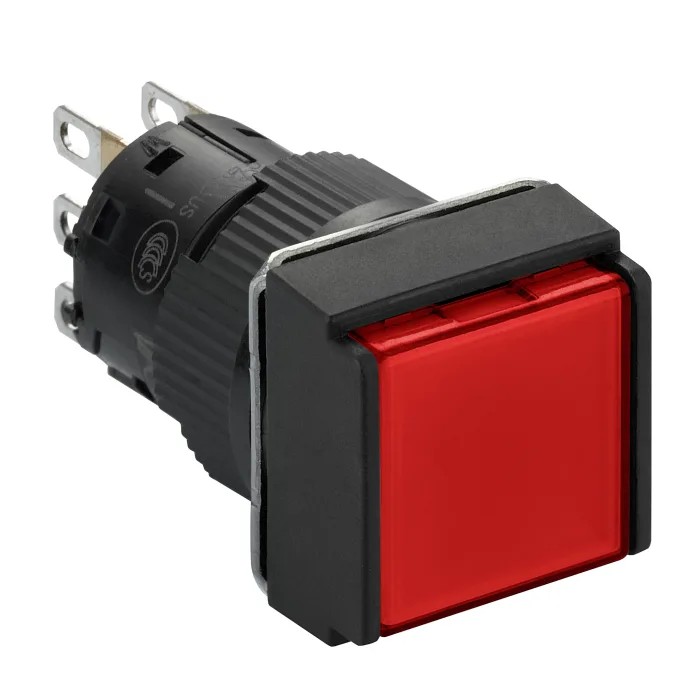

Schneider Electric XB6ECW4B1P Harmony XB6 Series Illuminated Push Button Switch is an industrial-grade control device designed for panel mounting with a 16 mm cutout diameter. The switch features a red LED actuator for improved visibility, making it easy to locate the button on control panels or automation lines. Its spring-return mechanism ensures the button automatically returns to its resting position after activation, enhancing safety and operational efficiency.

This push button switch supports a single-pole double-throw (SPDT) contact configuration, suitable for versatile control station wiring schemes. Terminal connections are provided via quick connect and solder tags, enabling straightforward installation and maintenance.

The device is rated IP65, offering dust-tight protection and resistance to low-pressure water jets from all directions, making it highly suitable for industrial, commercial, and automation line environments that demand reliable and robust components. The product complies with multiple international standards, including IEC 60947-1, UL 508, and CSA C22.2 No. 14, ensuring quality and safety compliance.

Designed for harsh conditions, this push button switch operates effectively within a temperature range of -25°C to +55°C. It can handle a contact AC voltage of up to 250 V and a current rating of 1 A, providing dependable performance in electrical control circuits.

With a compact form factor measuring 30 mm height, 90 mm width, and 200 mm length, this push button is optimized for installations with limited panel space. Its lightweight design, approximately 0.006 kg, reduces strain on mounting panels.

The Push Button Switch is ideal for automation lines, control stations, commercial units, and industrial processing applications. Mechanical life of one million cycles ensures long service life in continuous operation. Low 10 mA current consumption of the LED actuator adds energy efficiency to the control system.

Red LED illumination enables quick and accurate operation acknowledgment under various lighting conditions. IP65 ingress protection allows use in dusty or wet environments without compromising performance.

This product is manufactured in China and represents the quality standards of Schneider Electric Harmony series components. It is a new product condition unit ready for immediate industrial application.
