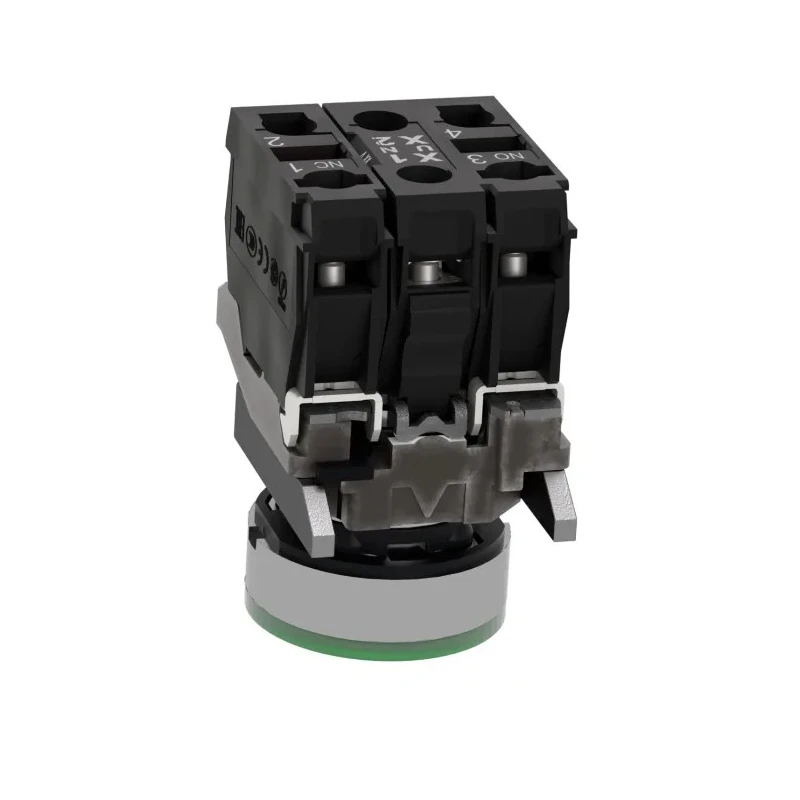

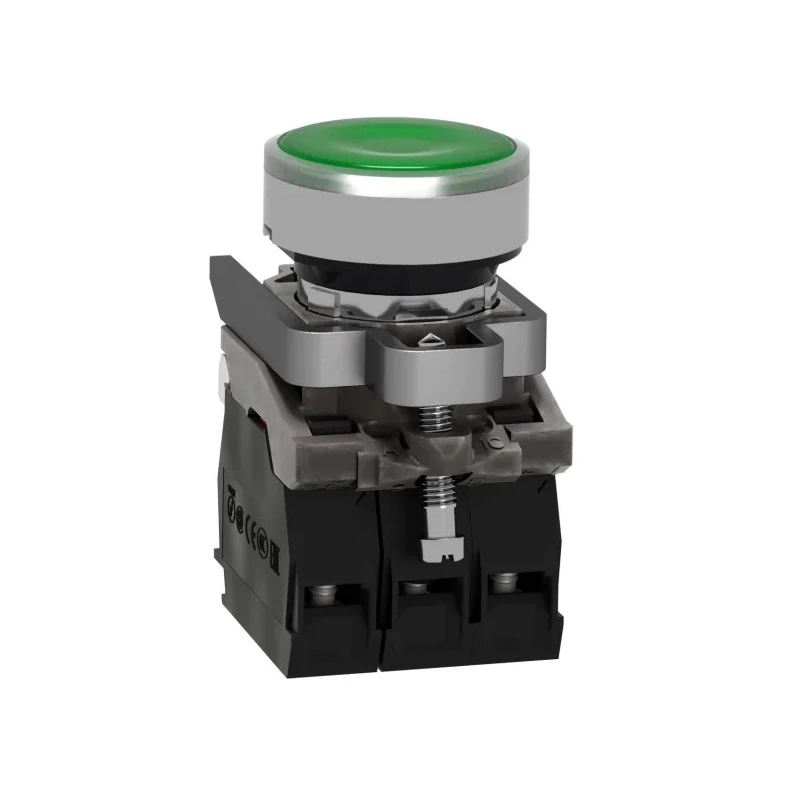

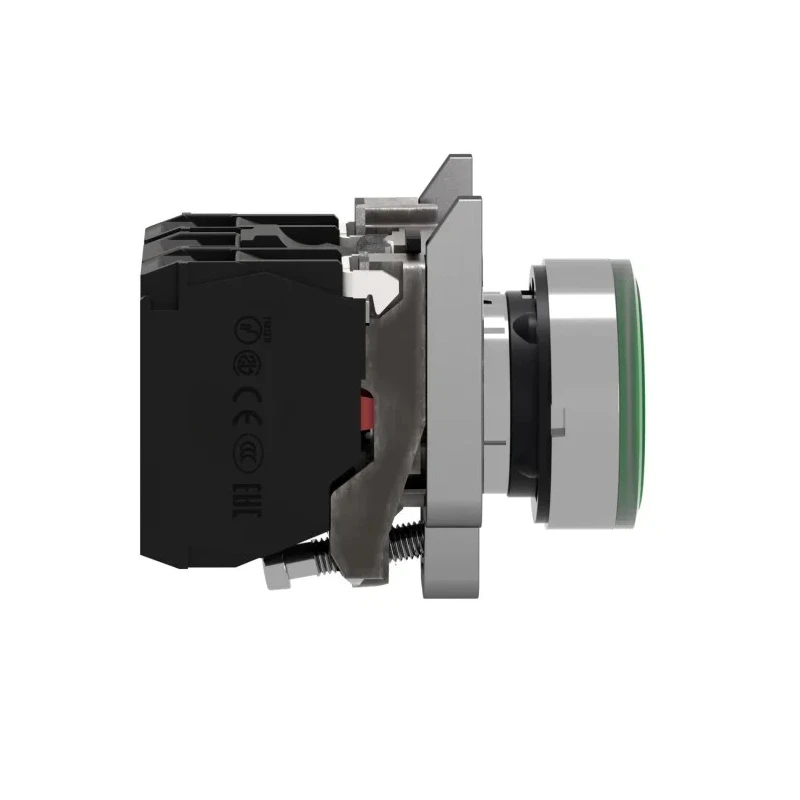

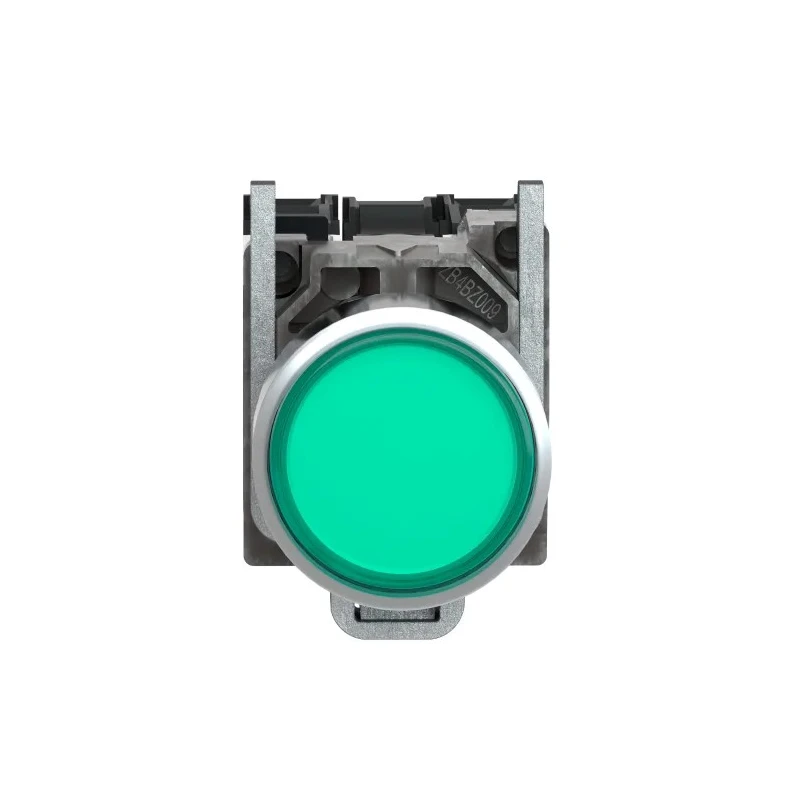

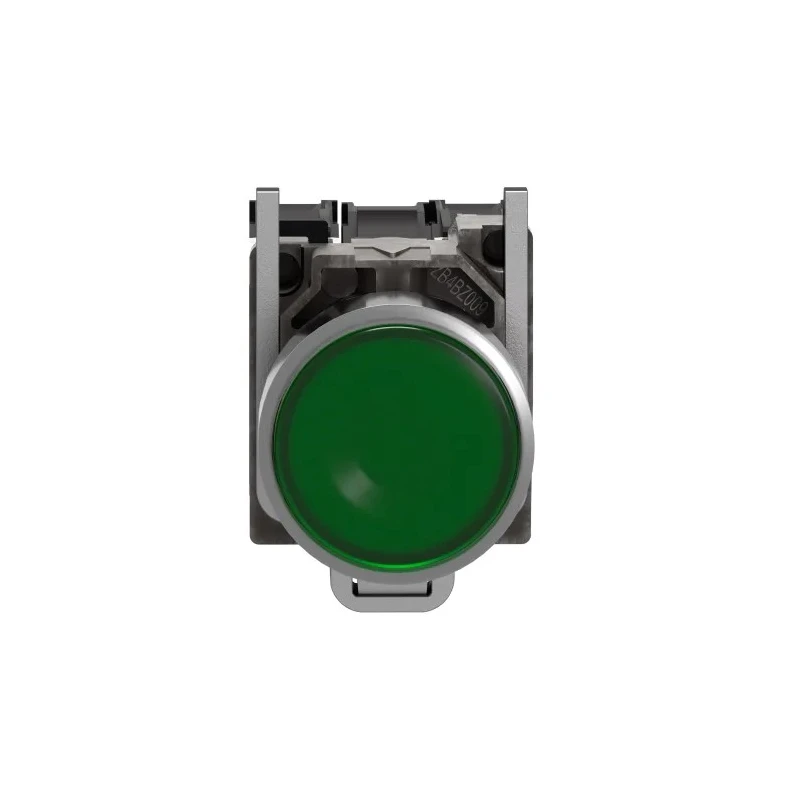

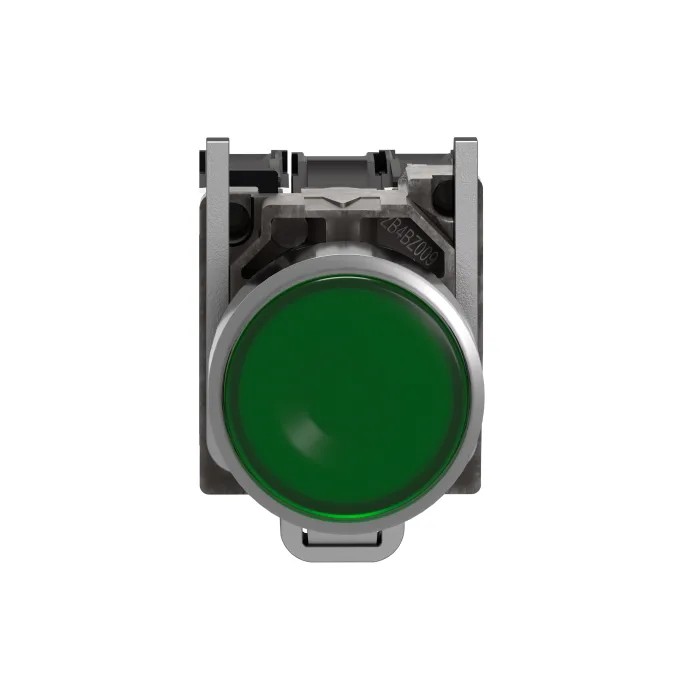

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW33G5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 57mm |
| Model | XB4BW33G5 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Width | 30mm |
| Mount Type | Panel Mount |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw Clamp |
| LED Colour | Green |
| Switch Operation | Spring Return |
| Actuator Colour | Green |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 12A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- Features a green illuminated round actuator for clear visual signaling.

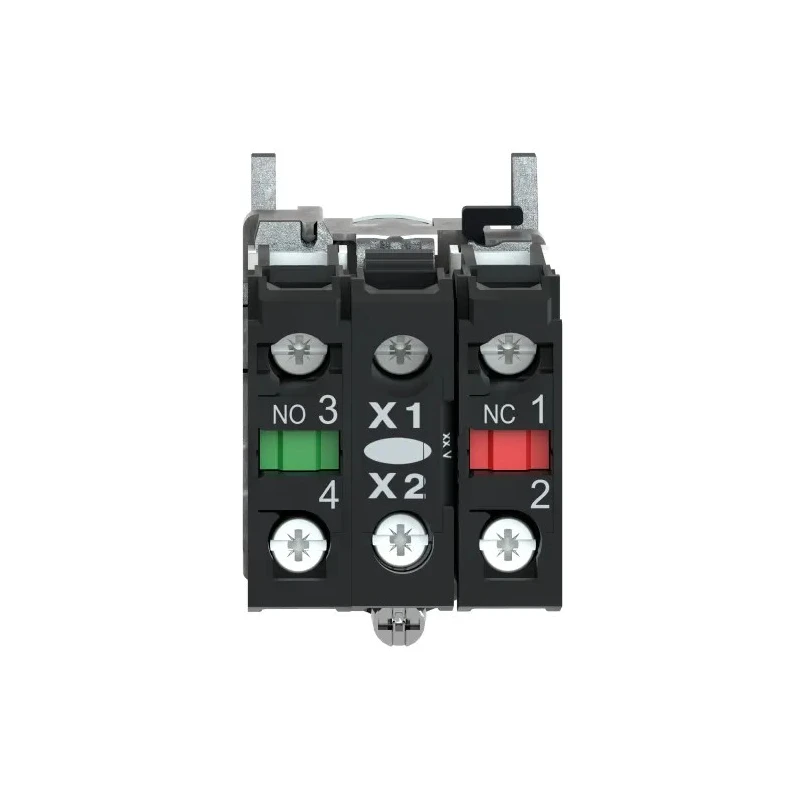

- Designed with screw clamp terminals accommodating up to 2x1.5mm² wiring.
- IP66, IP67, IP69, and IP69K rated for high-pressure washdown protection.
- Suitable for industrial control panels requiring robust, waterproof switches.
- Spring-return actuator ensures immediate reset after actuation.
- Silver-alloy contacts rated at 12A handle moderate electrical loads reliably.
- Operates within a temperature range of -25°C to 70°C.
- Mechanical durability of 10 million cycles and electrical endurance of 1 million cycles provide long service life.
Product Description
Schneider Electric XB4BW33G5 Harmony XB4 Series illuminated push button switch is engineered for industrial, manufacturing, and automation control panels, providing reliable user-actuation with spring-return mechanism. This panel-mounted switch features a 22 mm cutout and offers a single-pole double-throw (SPDT) contact configuration suitable for various control applications.
The unit includes a green round actuator lens illuminated by an integral LED light source, ensuring clear operational status indication. Its screw clamp terminals accept wiring up to 2x1.5mm² for secure and efficient installation. The device offers exceptional environmental protection with IP66, IP67, IP69, and IP69K ratings, making it ideal for harsh industrial environments, including food and beverage machinery requiring washdown resistance.
Designed to withstand rigorous use, the actuator has a mechanical life of 10 million cycles and electrical endurance rated for 1 million cycles under AC-15 and DC-13 switching conditions. The silver-alloy contacts are rated at 12A, ensuring reliable switching of moderate electrical loads. Operating temperature range extends from -25°C to 70°C, suitable for diverse industrial settings.
This switch conforms with multiple rigorous standards such as IEC 60947-5-1, IEC 60947-1, UL 508, and CSA C22.2 No 14, ensuring compliance and safety. The spring-return action provides immediate reset after operation, beneficial for automation test rigs and manual reset control stations.
Features a green illuminated round actuator for clear visual feedback. SPDT contact configuration with silver-alloy contacts rated for 12A. Screw clamp terminals for secure wiring connections. IP66, IP67, IP69, and IP69K rated sealing for harsh environment use.
Mechanical life of 10 million cycles and electrical endurance of 1 million cycles. Operating temperature range from -25°C to 70°C for versatile applications. Complies with international industrial standards ensuring quality and safety.
Ideal for industrial control panels, food machinery, marine stations, and automation test rigs. Panel mounting with 22 mm cutout size for easy installation.
The Schneider Electric Harmony XB4 Series Push Button Switch caters to industrial, laboratory automation, electrical cabinets, marine control stations, and HVAC applications requiring durable, reliable, and waterproof operator controls. Explore a wide range of similar control switches and components at EnvMart to fulfill your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration, suitable for various control applications.
The dimensions of this unit are 57 mm in length, 30 mm in width, and 47 mm in height.
The maximum operating temperature for the XB4BW33G5 is 70°C, making it suitable for diverse industrial environments.
It is equipped with screw clamp terminals that can accommodate wiring up to 2x1.5mm² for secure connections.
This switch has an IP rating of IP66, IP67, IP69, and IP69K, providing high-pressure washdown protection for harsh environments.
The electrical endurance of this push button switch is rated for 1 million cycles under AC-15 and DC-13 switching conditions.
The spring-return mechanism ensures that the actuator resets immediately after actuation, which is beneficial for automation applications.
The contacts of this model are rated for 12A, allowing it to handle moderate electrical loads reliably.
The minimum operating temperature for this switch is -25°C, making it suitable for a wide range of industrial applications.
The actuator of this model is green, and it is illuminated by an integral LED light source for clear operational status indication.
This unit conforms to multiple standards, including IEC 60947-5-1, IEC 60947-1, UL 508, and CSA C22.2 No 14, ensuring compliance and safety.
It is suitable for industrial control panels, food machinery, marine control stations, and automation test rigs, requiring durable and waterproof operator controls.
