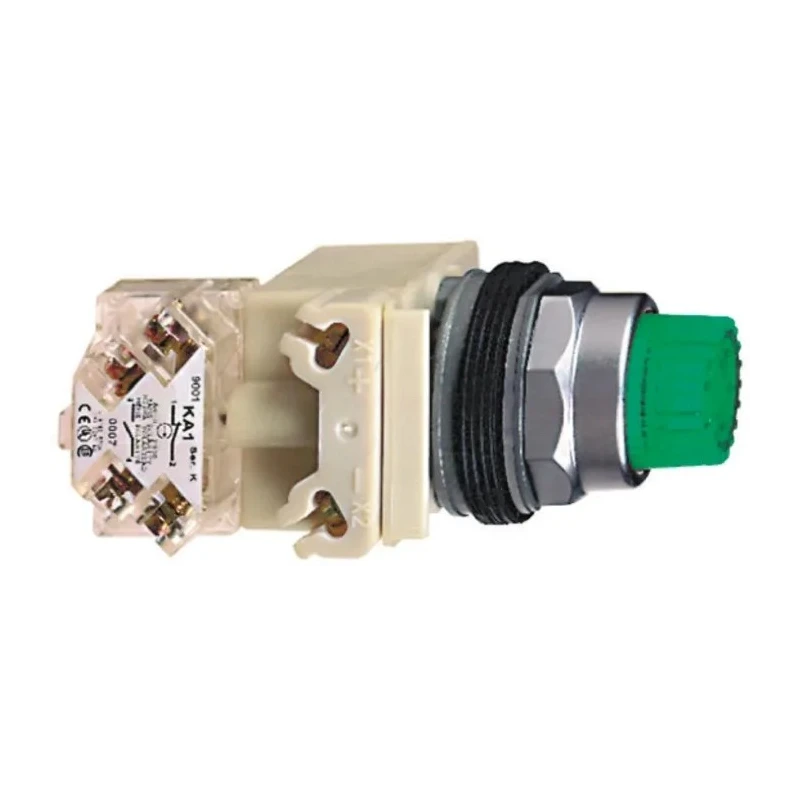

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm 9001K2L38LGGH13

Schneider Electric 9001K2L38LGGH13 Harmony 9001K Series Illuminated Push Button Switch is designed for panel mounting in industrial automation and electrical control systems. It features a spring return actuator with an octagonal style for precise control and ergonomic operation. The switch is illuminated with a red LED, enhancing visibility in control panels.

This push button switch requires a 30 mm cutout in the panel and uses a Single Pole Double Throw (SPDT) contact configuration with a 1 CO switch configuration. It is constructed for durability and safety with an IP66 rating, ensuring protection against dust ingress and water jets, suitable for harsh industrial environments.

The switch supports contact voltages of up to 125V DC and 600V AC with a contact current rating of 550mA. The mounting is panel-based with screw terminal connections, optimizing ease of installation and maintenance. Operating temperature ranges from -25°C to 70°C, allowing use in varied environmental conditions.

Dimensions measure 103mm in length, 54mm in width, and 42mm in height, fitting compact control panels without occupying excess space. The product meets extensive global standards such as EN/IEC 60947-1, 5-1, 5-4, UL 508, CSA C22.2 No 14, and Japanese JIS C 4520 and C 852, providing assured quality and compliance.

The red LED illumination is powered from 24V or 120V AC/DC supplies and comes supplied with a lens and BA9s base mounted superbright LED. This product is ideal for use in industrial control panels, manufacturing equipment, electrical enclosures, and automation systems where reliable and visible push-button operation is essential.

Features a spring return actuator for reliable operation. Designed for a 30 mm panel cutout size. Contact configuration is Single Pole Double Throw (SPDT). Illuminated with a red LED ensuring high visibility. Constructed to meet IP66 rating for dust and water resistance.

Suitable for contact DC voltage up to 125V and AC voltage up to 600V. Operates within a temperature range of -25°C to 70°C. Compact size with dimensions 103mm length, 54mm width, and 42mm height. Equipped with screw terminals for secure wiring.

Complies with multiple international standards including EN/IEC 60947 and UL 508.

This illuminated Push Button Switch from Schneider Electric’s Harmony 9001K Series is a premium component for electrical panels and automation control systems. It offers high durability, excellent performance, and clear indication, suitable for demanding industrial applications. Browse more Schneider Electric control devices on EnvMart for a comprehensive range of industrial electrical components.
