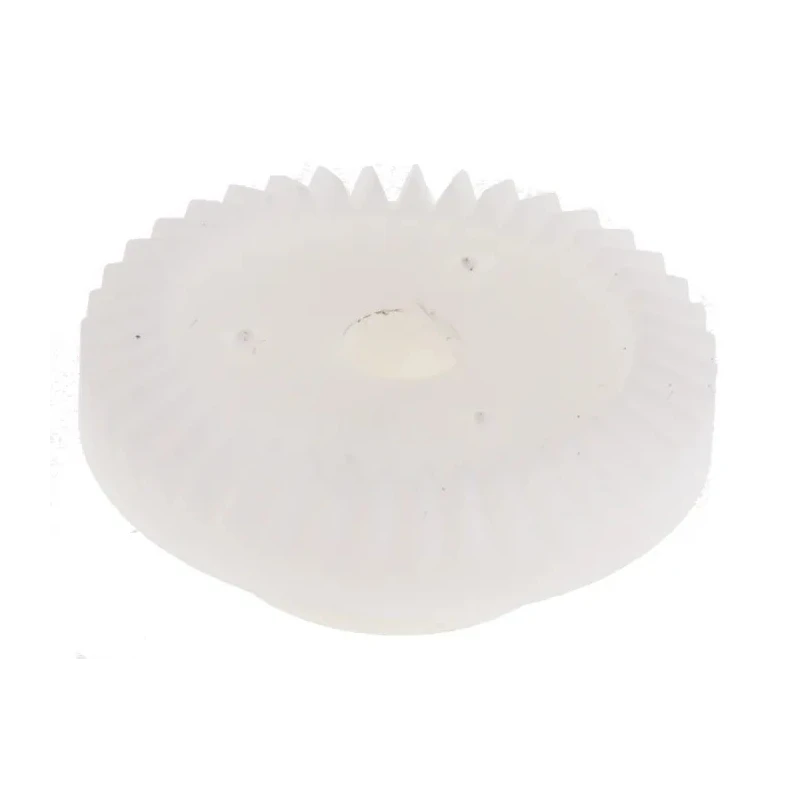

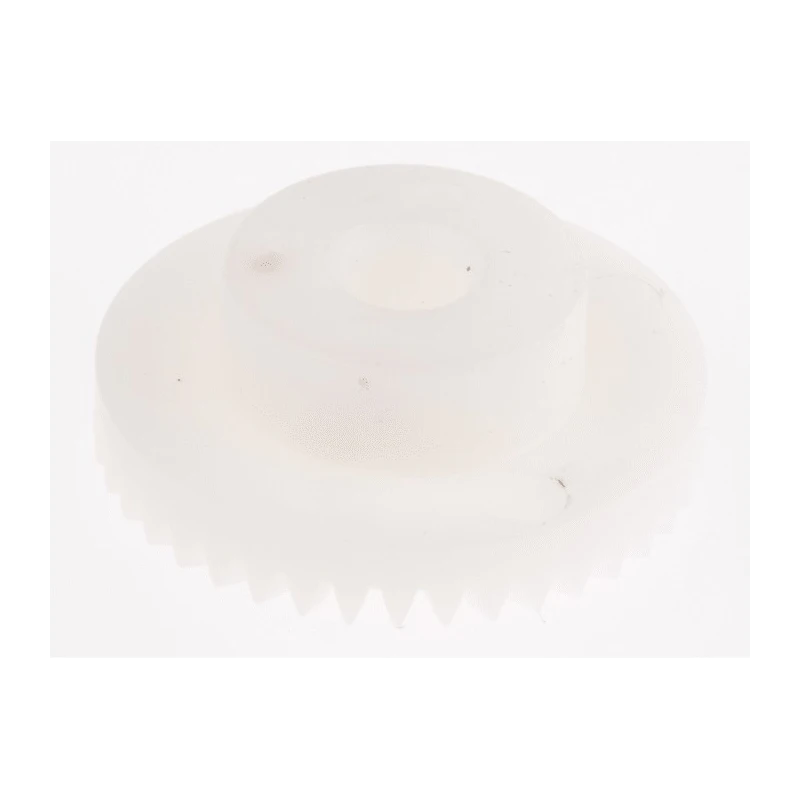

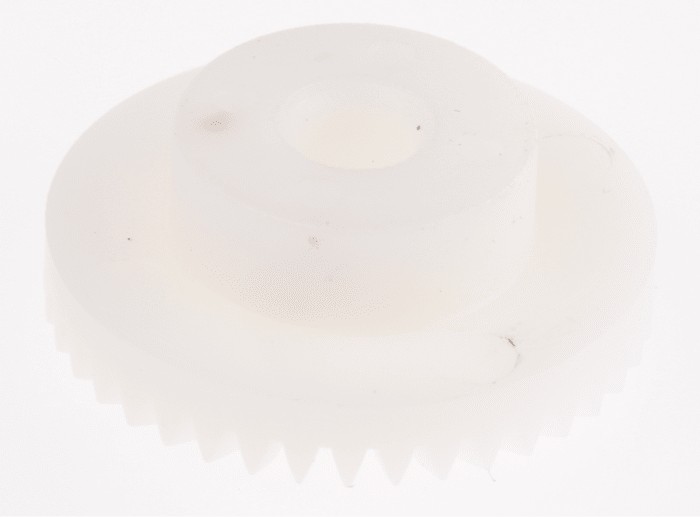

RS PRO Polyoxymethylene Bevel Gear 4mm Bore 40 Teeth 0.5 Module 521-6070
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Polyoxymethylene |
| Model | 521-6070 |
| Gear Type | Bevel |
| Number of Teeth | 40 |
| Bore Diameter | 4mm |
| Gear ratio | 2:1 |
| Standards/Approvals | RoHS |
| Pitch Diameter | 0.5mm |
| Hub Diameter | 12mm |
| Module | 0.5 |
| Pressure Angle | 20° |
| Gears sold as a single unit, match pair with module size to give a 2 | 1 ratio |
| POM Bevel Gear, 4mm Bore, 40 Teeth, 0.5 ModuleBrand | NEUTRAL |
Key Features
- Constructed from durable, injection moulded acetal co-polymer for high tensile strength.
- Features a 4mm bore diameter suitable for various shaft fittings.
- Includes 40 teeth with a 0.5 module for smooth gear operation.
- Pressure angle is at 20 degrees ensuring efficient power transmission.
- Compliance with RoHS standards for environmental safety.
- Hub diameter is 12mm providing robust mounting support.
- Pitch diameter measures 0.5mm, optimized for gear meshing accuracy.
Product Description
RS PRO 521-6070 Polyoxymethylene Bevel Gear is a precisely engineered component fabricated from high-quality polyoxymethylene material, also known as Delrin. This injection moulded acetal co-polymer delivers excellent tensile strength of 75 N/mm² and a Rockwell R hardness rating between 110 and 120, ensuring durability and long service life in demanding mechanical power transmission applications.
The gear features a 4mm bore diameter and a hub diameter of 12mm, making it compatible with a variety of shaft sizes. The gear comprises 40 teeth with a module size of 0.5, designed to maintain accurate pitch diameter and smooth meshing with mating gears. The pressure angle of 20° and the pitch angle specifications support efficient torque transmission with minimal backlash and wear.

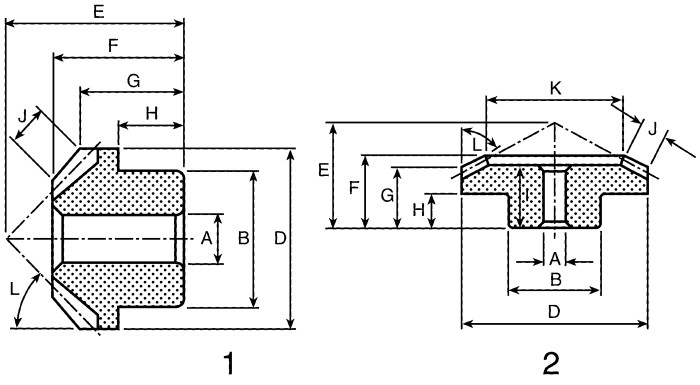

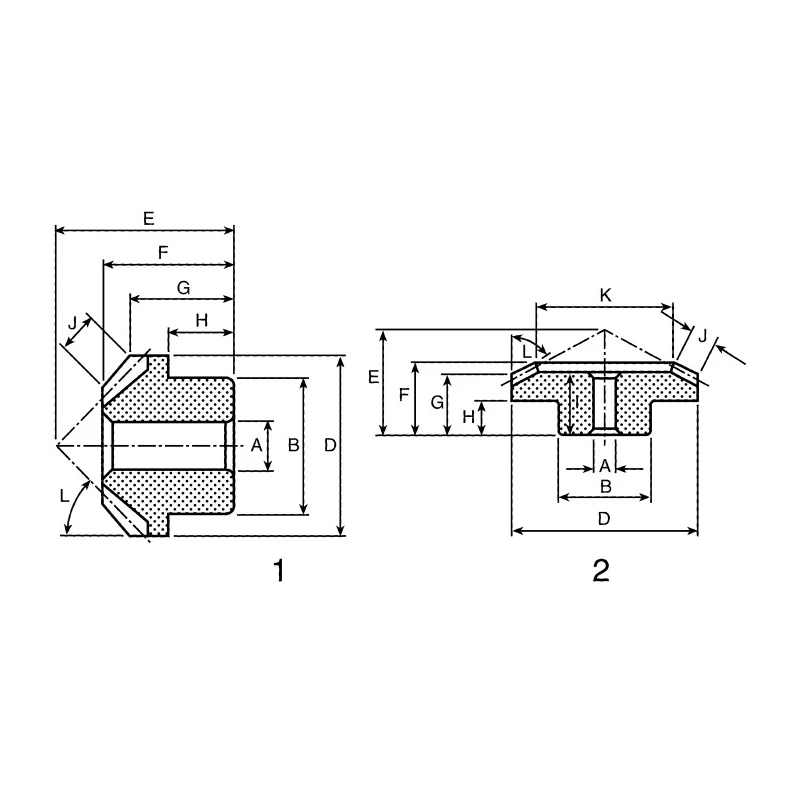

This bevel gear has a 2:1 gear ratio, optimized for matching with corresponding pinion gears of the same module size to achieve desired speed and torque conversion ratios. The gear's pitch angle is 63° 26' for the gear and 26° 34' for the pinion, with face angles of 65° 36' (gear) and 30° 29' (pinion), illustrating its precise geometric configuration for reliable mechanical assembly.
The product is fully RoHS compliant, ensuring it meets regulatory standards for hazardous substances, making it suitable for use in industrial, manufacturing, and mechanical engineering environments. It is sold as a single unit and can be paired with matching components to build complete transmission systems.
Typical applications include use in automation equipment, robotics, machinery repair, and mechanical power transmission systems requiring high precision and durability. Constructed from durable, injection moulded acetal co-polymer for high tensile strength.
Features a 4mm bore diameter suitable for various shaft fittings. Includes 40 teeth with a 0.5 module for smooth gear operation. Pressure angle is at 20 degrees ensuring efficient power transmission. Gear ratio of 2:1 enables matching with mate parts for desired mechanical advantage.
Compliance with RoHS standards for environmental safety. Hub diameter is 12mm providing robust mounting support. Pitch diameter measures 0.5mm, optimized for gear meshing accuracy. Explore the selection of precision gears at EnvMart for enhanced Mechanical Power Transmission solutions designed for professional industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bevel gear features a bore diameter of 4mm, making it suitable for various shaft fittings.
This bevel gear includes 40 teeth, designed to provide smooth gear operation.
The gear ratio is 2:1, allowing it to match with corresponding pinion gears of the same module size for effective speed and torque conversion.
It is constructed from polyoxymethylene, also known as Delrin, which provides high tensile strength and durability.
The pressure angle is 20 degrees, which supports efficient power transmission with minimal backlash.
The hub diameter measures 12mm, providing robust mounting support for installation.
The gear has a module size of 0.5, optimized for accurate meshing with mating gears.
Yes, it is fully RoHS compliant, ensuring it meets regulatory standards for hazardous substances.
The pitch diameter measures 0.5mm, which is optimized for gear meshing accuracy.
Typical applications include automation equipment, robotics, machinery repair, and mechanical power transmission systems.
The material has a Rockwell R hardness rating between 110 and 120, indicating its strength.
This bevel gear is sold as a single unit and can be paired with matching components to build complete transmission systems.
