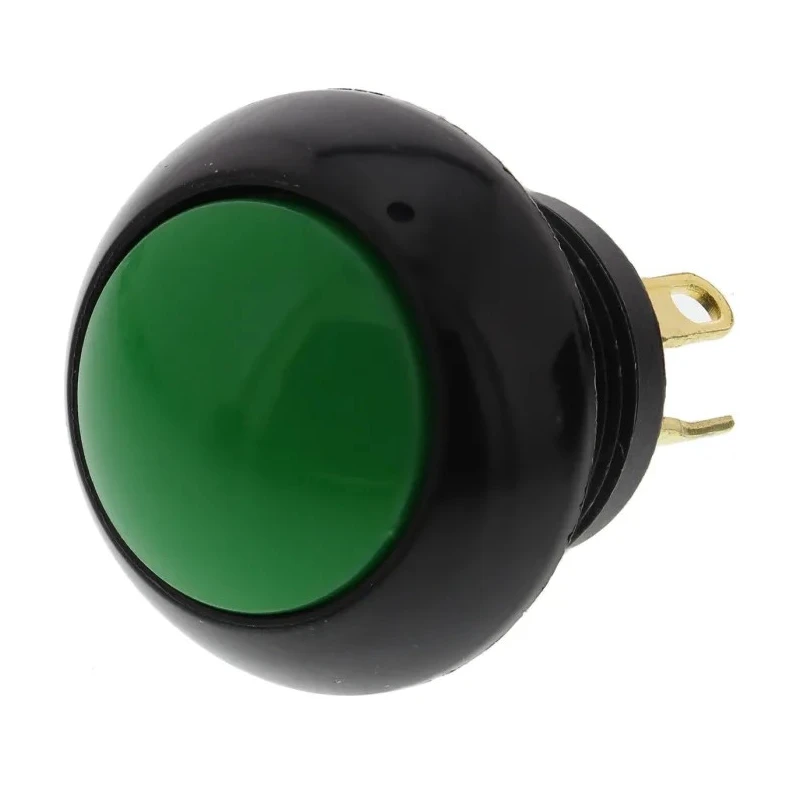

Otto P9 Series Momentary Panel Mount Push Button Switch SPDT Green LED IP68 28 V dc 115 V ac P9113125W

Otto P9113125W is a robust and precision engineered momentary push button switch designed for panel mounting applications. This SPDT switch features a green LED illuminated actuator and is sealed to IP68 standards, making it watertight and suitable for submersion pressures up to 1 meter. It operates reliably at both 28 V dc and 115 V ac with a contact rating of 5 amps, supporting a broad range of industrial and heavy equipment applications.

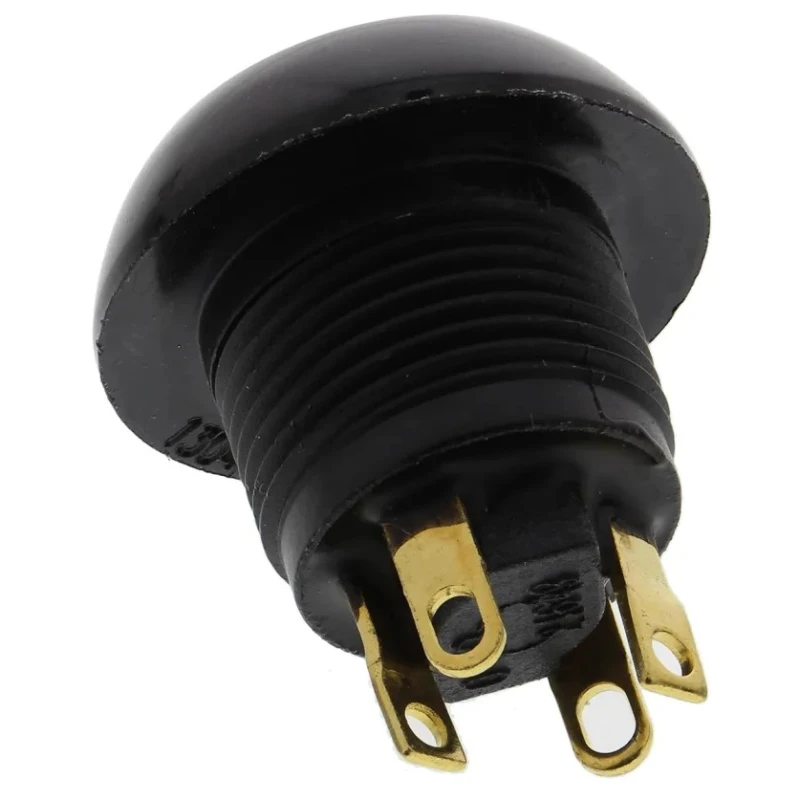

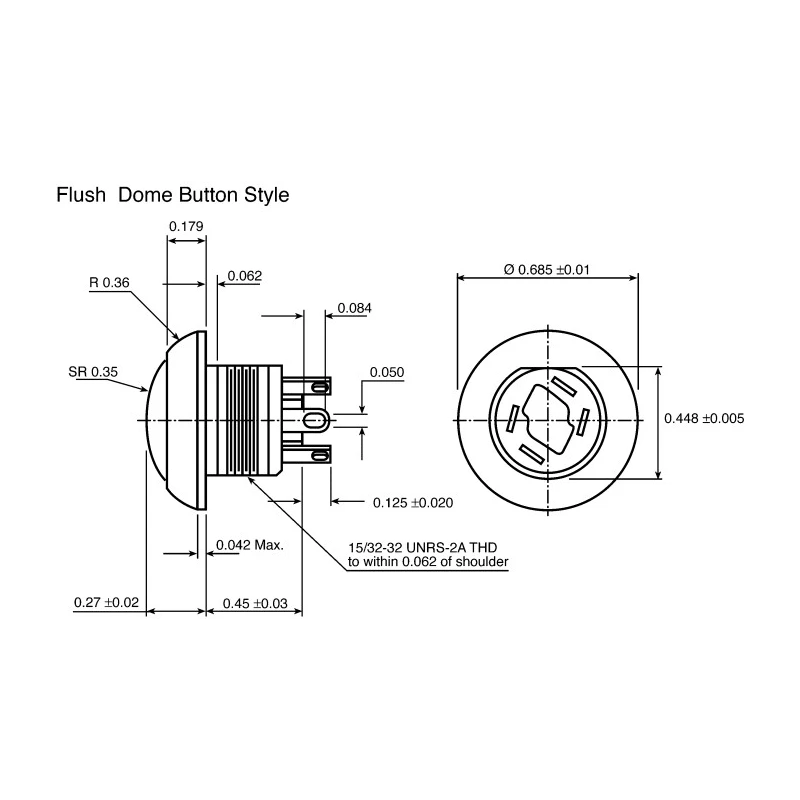

The switch includes a threaded body designed for hex nut mounting, making installation secure and convenient in control panels, instruments, and machinery. It is constructed with a black bezel and body with a contoured dome push button, available in flush or raised dome profiles to suit different design requirements.

The Otto P9 Series switch offers an electrical life of approximately 25,000 operations and a mechanical life of around one million operations, ensuring long-term durability and reliability. Its low contact resistance supports low-level switching, ideal for precise industrial control systems.

Operating temperature spans from -55°C to +85°C which enables use in demanding environments including industrial automation, instrumentation, HVAC control systems, and manufacturing equipment. The product is RoHS compliant and supplied with a nut and panel seal gasket to maintain integrity under harsh conditions.

This switch is particularly suited for use in control grips, computers, instruments, and heavy duty operations where rugged and attractive push button switches are required. The IP68 rating assures resistance against dust and water ingress, enhancing reliability in exposed environments.

Package includes one Otto P9 series momentary push button switch with green LED and panel mounting accessories. Suitable for electrical, automation, water treatment, manufacturing, and commercial control panel applications.

Momentary switch action with SPDT contacts. IP68 watertight sealing suitable for submersion. Robust construction with black bezel and dome style button. Operating voltage 28 V dc and 115 V ac. Panel mount with threaded body and sealing gasket.

High mechanical and electrical endurance ratings. Wide temperature range from -55°C to +85°C. Green LED status indication for operational clarity. RoHS compliant and environmentally safe. Compact form factor with easy installation.
