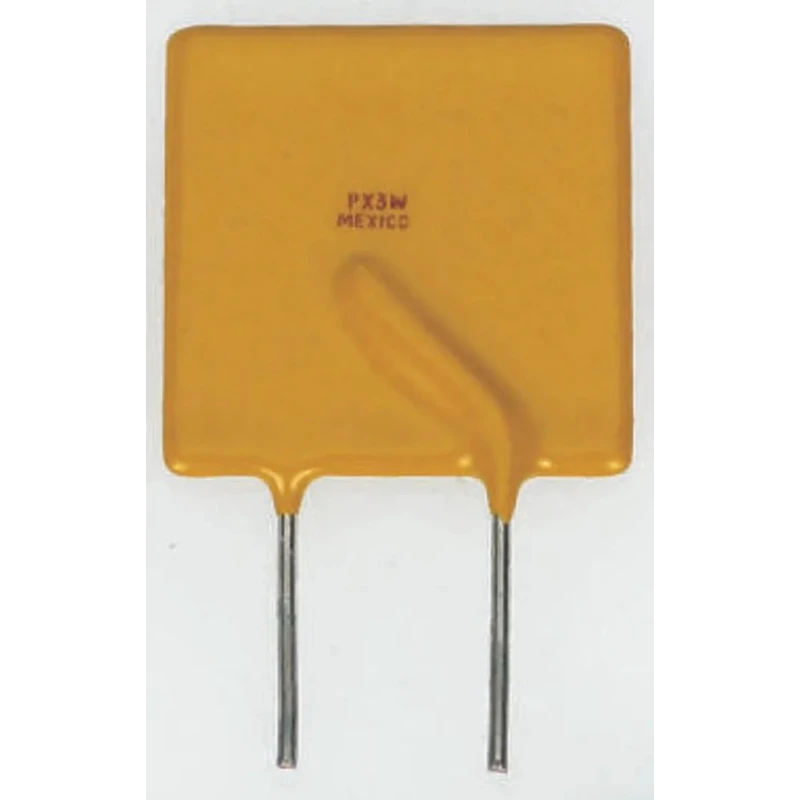

Littelfuse 9 A Resettable Fuse 16V Radial Lead Orientation RGEF900
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 16V |
| Brand | Littelfuse |
| Height | 21.7mm |
| Length | 14mm |
| Model | RGEF900 |
| Width | 3mm |
| Current Rating | 100A |
| Series | RGEF |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 15.3A |
| Power Dissipation | 3.3W |
| Standards/Approvals | RoHS, UL, TUV, CSA |
| Time to Trip | 5.5s |
| Hold Current | 9A |
| Minimum Resistance | 0.005Ω |
| Maximum Resistance | 14mΩ |
| Lead Orientation | Radial |
| TE Connectivity 9A Resettable Fuse, 16VBrand | TE Connectivity |
Key Features
- Automatically resets itself thousands of times, eliminating the need for fuse replacement.
- Compact size with radial lead orientation facilitates easy PCB mounting.
- Maintains low resistance during normal operation and quickly switches to high resistance on overload.
- Power dissipation rated at 3.3 watts ensures efficient thermal management.
- Operates safely within temperatures from -40°C to 60°C.
- Complies with RoHS, UL, TUV, and CSA standards for quality assurance.
- Ideal for security systems, power supplies, automotive, and medical equipment protection.
- Maintenance free design reduces operational downtime.
Product Description
Littelfuse RGEF900 is a 9 A resettable fuse rated at 16 volts designed to protect electrical and electronic circuits from excessive current loads. Featuring radial lead orientation and compact dimensions of 14mm length, 21.7mm height, and 3mm width, this fuse offers efficient circuit safeguarding and easy integration on printed circuit boards.
The fuse automatically switches from a low-resistance state to a high-resistance state within 5.5 seconds under an overload condition with a trip current of 15.3 A and a current rating of 100 A, allowing rapid response to protecting devices. It resets itself thousands of times, restoring normal operation without replacement, making it ideal for maintenance-free applications.
Designed with a power dissipation capacity of 3.3 W, it functions reliably within a temperature range from -40°C minimum operating temperature to a maximum operating temperature of 60°C. The fuse complies with leading international standards including RoHS, UL, TUV, and CSA, ensuring high safety and environmental compliance.
Main applications of the Littelfuse RGEF900 include circuit protection for security systems, power supplies, transformers, automotive circuits, medical devices, instrumentation, control systems, computers, audiovisual equipment, and telecommunications. Its compact size eliminates the need for a fuseholder, further simplifying installation.
This resettable fuse belongs to the PolySwitch™ RUEF & RGEF series and is suitable for rapid and automatic circuit protection where reusable overcurrent protection is desired. The radial lead orientation enables straightforward PCB wire-ended mounting.
Automatically resets thousands of times to ensure continuous protection. Maintenance free with no fuse replacement required. Compact size (14mm x 21.7mm x 3mm) saves space on PCB. Fast trip time of 5.5 seconds under overload conditions.
Power dissipation rating of 3.3 watts aids safe operation. Wide operating temperature range from -40°C to 60°C. Compliant with RoHS, UL, TUV, and CSA standards. Ideal for use in automotive, industrial, instrumentation, and medical equipment.
Explore more reliable protective devices and Resettable Fuses within the Electronics & Electricals category at EnvMart for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse RGEF900 has a hold current rating of 9 A and a maximum current rating of 100 A.
This model is rated for a voltage of 16V.
The dimensions of the RGEF900 are 14mm in length, 21.7mm in height, and 3mm in width.
The trip current for the Littelfuse RGEF900 is 15.3 A.
The fuse switches to a high-resistance state within 5.5 seconds under overload conditions.
It has a power dissipation rating of 3.3 watts, aiding in safe operation.
The operating temperature range is from -40°C to 60°C.
This model complies with RoHS, UL, TUV, and CSA standards for quality assurance.
The radial lead orientation facilitates easy PCB mounting, simplifying installation.
It is ideal for circuit protection in applications such as security systems, power supplies, automotive, and medical equipment.
The fuse can reset itself thousands of times, eliminating the need for replacement.
The minimum resistance is 0.005Ω and the maximum resistance is 14mΩ during normal operation.
