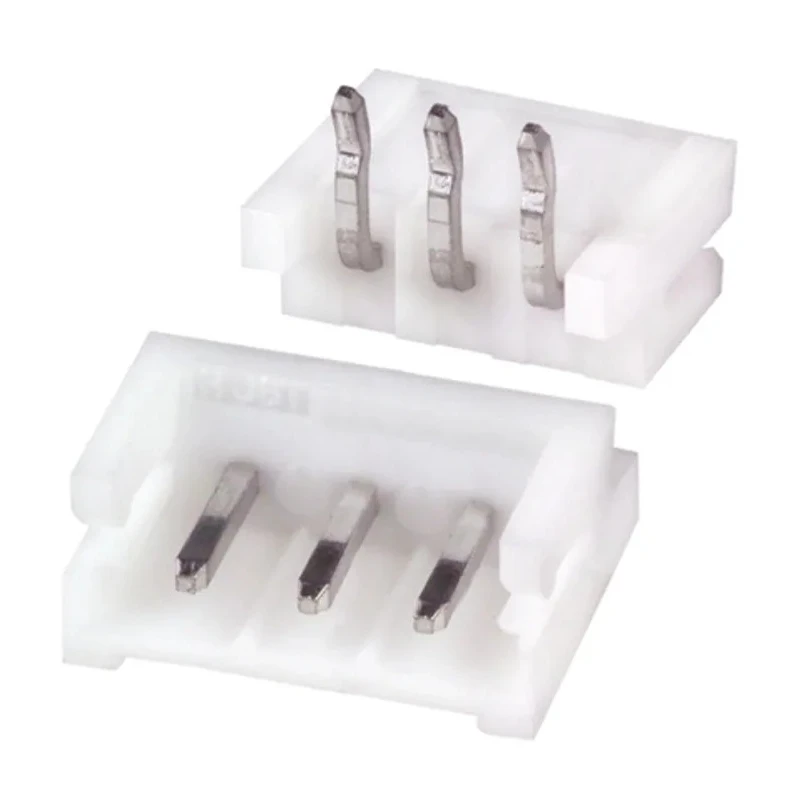

RS PRO EH Series 90° Right Angle Through Hole PCB Header 3 Contacts 2.5 mm Pitch 1 Row Shrouded S3B-EH (LF) (SN)

The JST S3B-EH (LF) (SN) EH Series right angle through hole PCB header is engineered for robust wire-to-board connections in electronics assembly. This 3-contact, 1-row PCB header with a 2.5 mm pitch and shrouded housing offers reliable mechanical and electrical contact.

The right angle orientation facilitates compact PCB layouts, optimizing space without compromising connection integrity. Constructed with high-quality brass contacts plated in tin, the connector ensures excellent electrical conductivity and resistance to corrosion. The polyamide housing material offers superior durability and thermal endurance.

Rated for a current of 3A and voltage up to 250V, this PCB header is suitable for a wide range of industrial, laboratory, and manufacturing electronic applications. Operating temperature ranges from -25°C to 85°C support use in various environmental conditions.

The shrouded design provides mechanical protection and integral keying to guarantee correct mating orientation, reducing the risk of connection errors during assembly. The solder termination and through hole mounting type make the header easy to integrate into printed circuit boards using standard mounting techniques.

With a mating pin length of 3.2 mm, this PCB header ensures secure and stable electrical connections suitable for demanding applications. Designed with a right angle orientation for space saving PCB assembly. Constructed with brass contact material plated with tin for excellent conductivity and corrosion resistance.

Polyamide housing ensures high durability and thermal stability. Supports a current rating of 3A at a voltage of 250V. Shrouded design provides protection and correct polarization for mating connections. Suitable for solder termination and through hole mounting.

Operates reliably within a temperature range from -25°C to 85°C. Features a mating pin length of 3.2 mm for secure connections. Ideal for electronic, industrial, and electrical assembly applications. Ensures consistent performance with integral keying to avoid misalignment.

This JST EH Series PCB header meets the needs of engineers and technicians involved in PCB manufacturing, providing a durable and reliable connector solution. For further component integration, a wide range of compatible socket housings and accessories are available.
