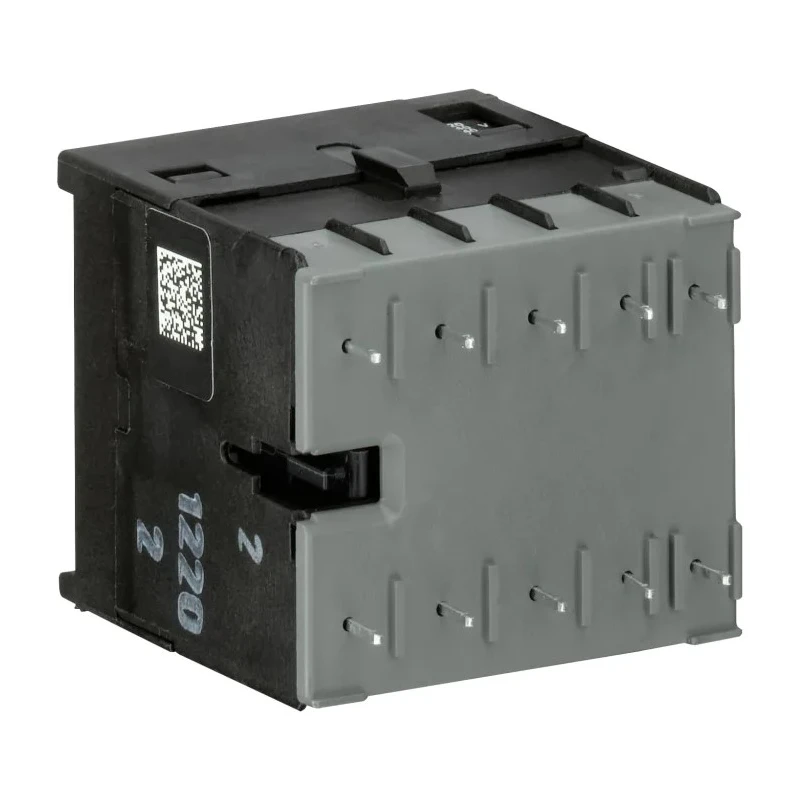

ABB BC7 Contactor, 24V DC Coil, 3-Pole, 12 A Contact Current, 5.5 kW Power Rating, 690V AC Contact Voltage GJL1313009R0011



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Function	Motor Control
Length	45.5mm
Model	GJL1313009R0011
Depth	51.5mm
Width	47.5mm
Mount Type	DIN Rail
Series	BC7
Power Rating	5.5kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	PCB Terminal
Number of Poles	3
Standards/Approvals	CCC, CE, CSA, EAC, UKCA, UL, IEC, RoHS
Contact Voltage	690V ac
Coil Voltage	24V dc
Normal State Configuration	3 NO
Contact Current	12A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	16A
Control Circuit Voltage Uc	24V dc
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

Operates at 24V DC coil voltage for efficient control.
Features a compact 3-pole configuration to save space.
Rated for 12 A contact current and 690V AC contact voltage.
Includes 1 auxiliary contact with 1 NC configuration for extended functionality.
Designed for DIN rail mounting ensuring easy installation.
Suitable for motor control applications in industry and HVAC systems.
Operates reliably within -25°C to 55°C ambient temperature range.
Equipped with PCB terminal type for secure electrical connections.

Product Description

ABB GJL1313009R0011 BC7 Series Contactor is engineered for precision motor control applications, operating with a 24V DC coil voltage and capable of switching loads up to 690V AC. This robust 3-pole contactor supports contact currents up to 12A and a power rating of 5.5 kW, making it suitable for diverse industrial machinery and HVAC systems.

Equipped with a single auxiliary contact configured as one normally closed (1 NC), it enhances flexibility in control circuits. The device features a durable DIN rail mount design and PCB terminal connections, allowing secure and straightforward installation in compact electrical panels.

This contactor reliably operates within a wide temperature range from -25°C to 55°C, suited for demanding industrial environments. Manufactured in Germany, it adheres to internationally recognized standards including CCC, CE, CSA, EAC, UKCA, UL, IEC, and RoHS, ensuring superior safety and performance.

Applications include industrial automation, motor control systems, HVAC system management, and general electrical load switching in commercial and manufacturing settings. Its compact dimensions (47.5mm width, 45.5mm length, 51.5mm depth) optimize space efficiency in control cabinets.

Operates efficiently with 24V DC coil voltage. Supports motor control with 3-pole and 12A contact current rating. Compact size with DIN rail mount and PCB terminal connections. Includes 1 auxiliary contact (1 NC) for control circuit flexibility.

Suitable for industrial machinery and HVAC applications. Wide temperature range from -25°C to 55°C ensures reliable operation. Complies with global standards including CE, UL, IEC, and RoHS. Manufactured in Germany ensuring quality and reliability.

Compact dimensions optimize panel space usage. Explore more ABB Contactors and automation control gear products at EnvMart for reliable industrial automation and control solutions.
