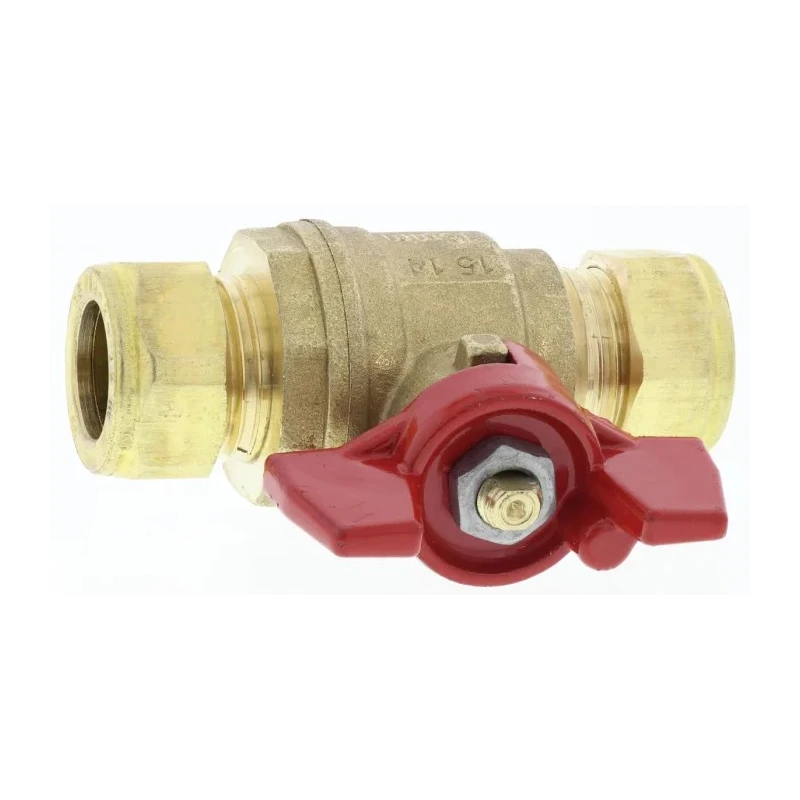

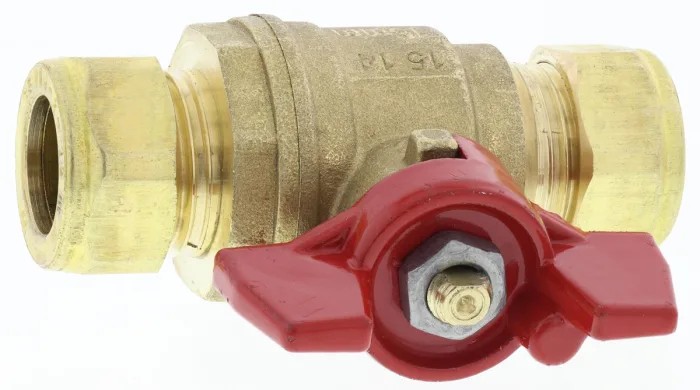

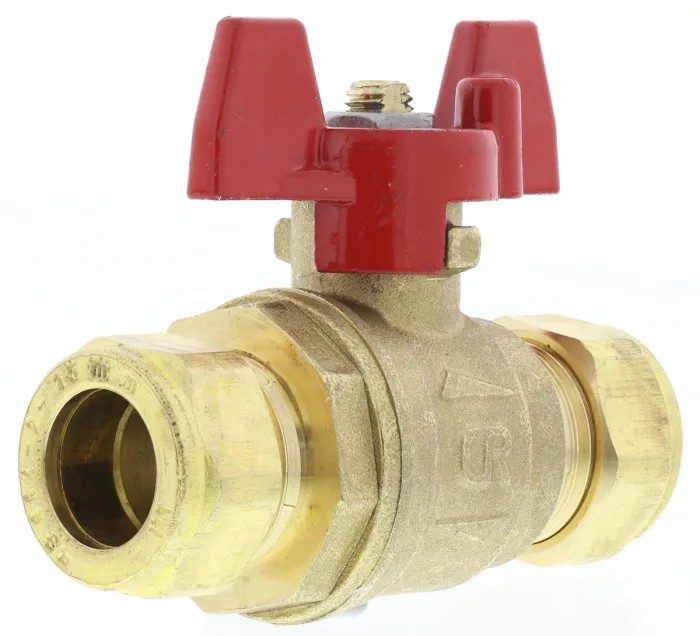

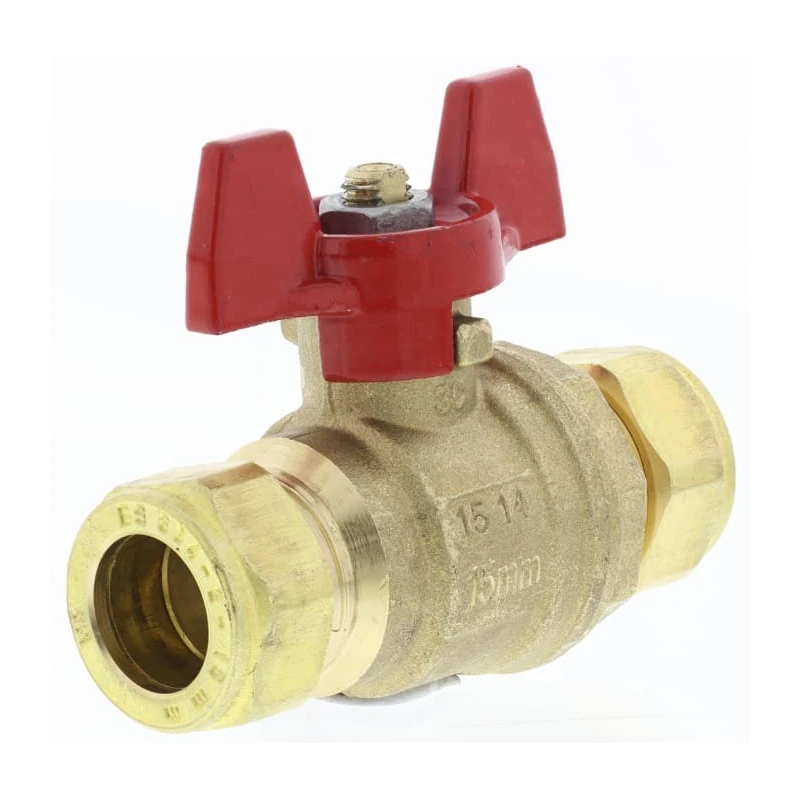

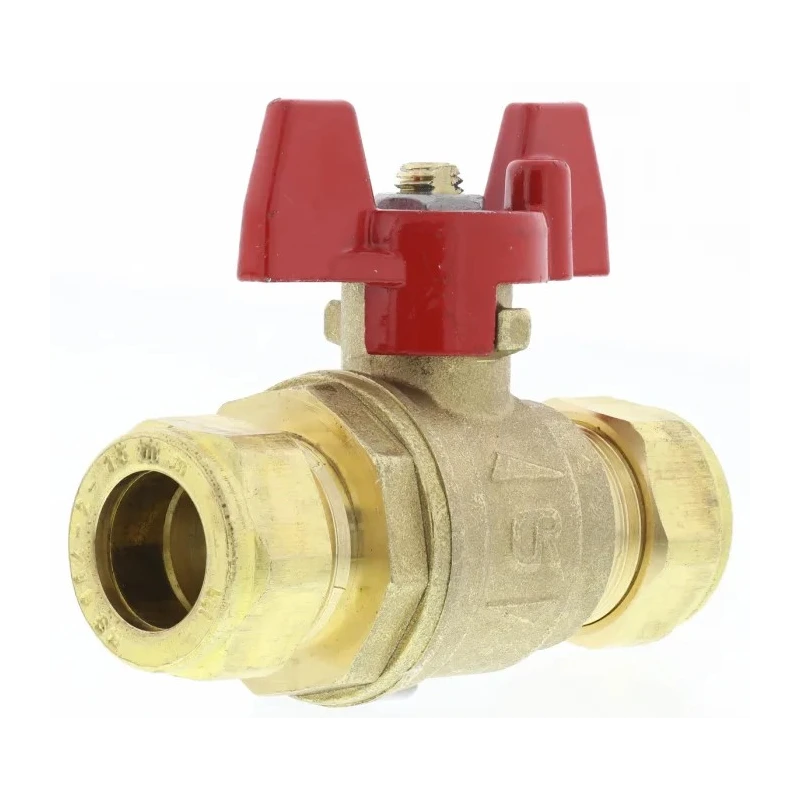

RS PRO Brass Compression Full Port Ball Valve 16 Bar, 12-54 mm Inlet, 15 mm Outlet 486-299

RS PRO 486-299 Brass Compression Full Port Ball Valve is engineered for reliable flow control in industrial, HVAC, plumbing, and water treatment applications. This quarter-turn manual valve features a dezincification-resistant brass body and a chrome plated brass ball that ensures excellent corrosion resistance and durability. The valve is designed with compression fittings for both inlet and outlet, with sizes of 12-54 mm and 15 mm respectively, enabling straightforward installation in piping systems.

The manual lever handle, made from polyvinyl chloride coated steel, is built to provide a clear indication of the ball's position and flow direction, simplifying operation. Its dual sealing system offers effortless valve operation in either direction while preventing leaks and mechanical wear, due to the absence of metal-to-metal moving parts. The valve is rated to operate at a maximum pressure of 16 bar (230 PSI) and can endure temperatures from -20°C (-4°F) up to +120°C (+250°F), affording versatility across various industrial and commercial environments.

RS PRO's dezincification resistant (DZR) brass construction ensures minimal corrosion risk, especially in areas with hard water or varying pH levels, extending the valve's service life. The valve’s design allows it to manage media such as water, steam, air, gases, chemicals, and petrochemical products effectively. Its robust build and secure compression fittings make it suitable for plumbing, air conditioning, heating plants, and compressed air systems.

Additional features include travel stops on the valve body to reduce stem stress and a handle designed for durability and easy manual operation. This valve requires no maintenance and provides long-term reliable shut-off and flow control.

The valve features a chrome plated brass ball for enhanced durability. Compression connection type enables secure and leak-free installation. Handle material is polyvinyl chloride coated steel for corrosion resistance. Designed for ease of operation with a dual sealing system allowing valve operation in either direction.

Operating temperature ranges from -20°C to +120°C, suitable for diverse industrial applications. Resistance to dezincification ensures long service life in hard water or chemically active environments. Manual lever includes position indicating arrows for easy flow status monitoring.

Suitable for domestic water services, HVAC systems, compressed air systems, and various industrial uses.

RS PRO Ball Valves are a trusted choice for industrial workflows requiring reliable shut-off and control valves. Browse our comprehensive selection of industrial valves and fittings at EnvMart to find suitable components for your project needs.
