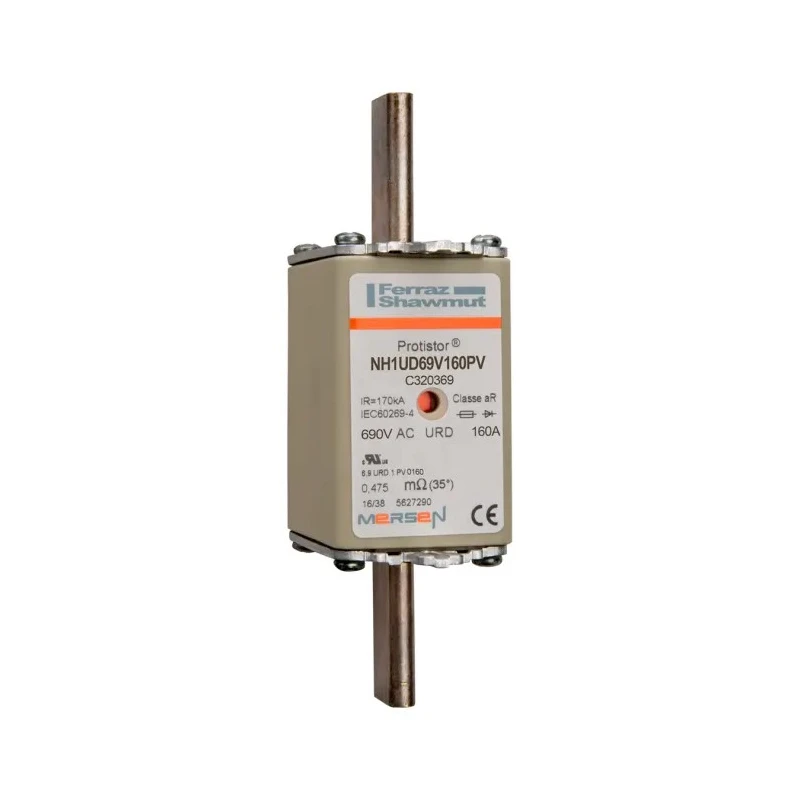

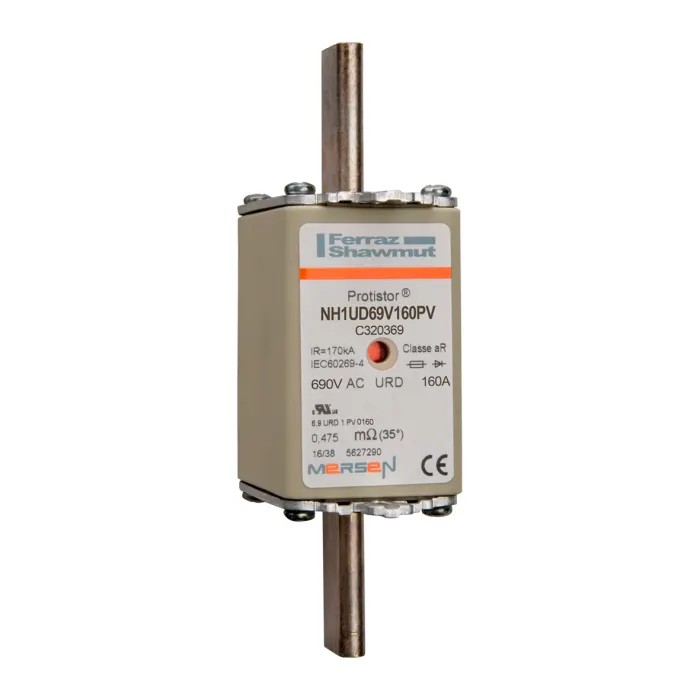

Mersen 160A NH Fuse NH1 690V ac Highly Current Limiting Ultra Fast Acting High Breaking Capacity C320369 / NH1UD69V160PV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 690V ac |
| Brand | Mersen |
| Height | 52.5mm |
| Length | 68mm |
| Model | C320369 / NH1UD69V160PV |
| Width | 39.5mm |
| Overall Length | 135mm |
| Current Rating | 160A |
| Series | NH1UD |
| Fuse Type | NH |
| Standards/Approvals | IEC |
| Fuse Characteristics | Highly Current Limiting, Ultra Fast Acting, High breaking capacity, Full Range Fast Acting |
| Fuse Size | NH1 |
| Tag Width | 6mm |
| Application Category | aR |
| Tag Type | Plain Blade |
| Eaton 160A Centred Tag Fuse NH1 690V acBrand | Eaton |
Key Features
- The fuse features highly current limiting and full range fast acting characteristics.
- It complies with IEC standards for fuse types.
- Constructed to be DIN 43620 size T71 for easy integration.
- Equipped with a plain blade 6mm tag for secure connections.
- Designed with a highly reliable Protistor® body capable of protecting power semiconductors.
- The fuse has a high rupture capacity ensuring safe disconnection under fault conditions.
- Compatible with auxiliary micro-switch accessories (ordered separately) for enhanced circuit monitoring.
Product Description
Mersen C320369 / NH1UD69V160PV NH Fuse NH1 690V ac is a high performance electrical safety device designed for rapid disconnection of power circuits. This fuse is highly current limiting and ultra fast acting with full range fast acting capabilities to protect industrial and commercial power semiconductor devices. It operates reliably at a voltage rating of 690 volts alternating current (ac) and a current rating of 160 amperes.

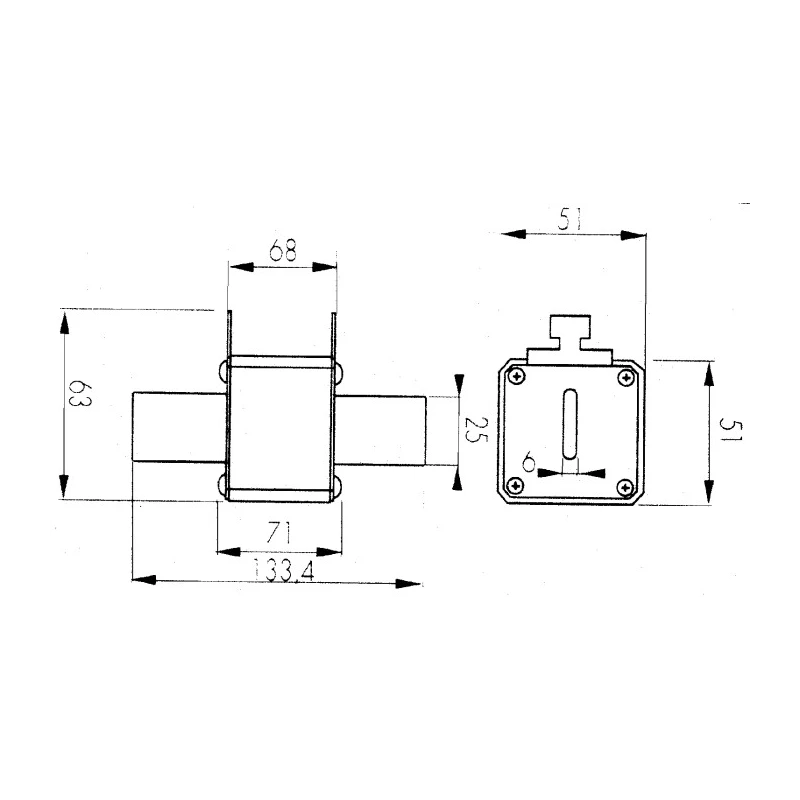

The fuse conforms to IEC standards and follows DIN 43620 size T71, facilitating compatibility with a wide range of industrial fuse holders and switchgear. Its compact dimensions of 68mm length, 135mm overall length, 52.5mm height, and 39.5mm width ensure ease of installation within panel assemblies where space optimization is critical.
Constructed with a Protistor® fuse body, this NH1 series fuse offers a very high breaking capacity, essential for safeguarding sensitive semiconductor components in demanding electrical environments. The plain blade type tag, 6mm wide, ensures secure and stable electrical connections.
For advanced protection features, the fuse body is equipped with a fusion striker capable of activating a dedicated micro-switch (sold separately) to facilitate remote circuit status monitoring and control.
This product is ideal for use in industrial manufacturing facilities, electrical automation systems, power distribution centers, and in HVAC systems where fast and reliable fuse operation is paramount for operational safety and equipment protection.
The fuse features highly current limiting and full range fast acting characteristics. It complies with IEC standards for fuse types and applications. Fuse size NH1 with DIN 43620 series NH1UD body. Equipped with a 6mm plain blade tag type for connection.
Dimensions: length 68mm, overall length 135mm, height 52.5mm, width 39.5mm. High rupture capacity for industrial fault conditions. Protistor® fuse body highly suitable for power semiconductor protection. Option for auxiliary micro-switch activation via fusion striker (micro-switch sold separately).
Explore more fuses and circuit protection devices to ensure optimum safety and compliance in your electrical installations on EnvMart.
Explore more products in our Tag Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse operates reliably at a voltage rating of 690 volts alternating current (ac).
This model has a current rating of 160 amperes.
The compact dimensions are 68mm in length, 135mm overall length, 52.5mm in height, and 39.5mm in width.
It is an NH fuse, specifically designed as a highly current limiting and ultra fast acting fuse.
Yes, it complies with IEC standards for fuse types and applications.
The fuse is equipped with a plain blade tag type that is 6mm wide for secure connections.
It is ideal for use in industrial manufacturing facilities, electrical automation systems, power distribution centers, and HVAC systems.
The fuse features a high breaking capacity, essential for safeguarding sensitive semiconductor components under fault conditions.
The fuse is constructed with a Protistor® body, which is designed to protect power semiconductors.
Yes, it is compatible with auxiliary micro-switch accessories, which can be ordered separately for enhanced circuit monitoring.
The fuse belongs to the NH1UD series.
The overall length of this fuse is 135mm.
