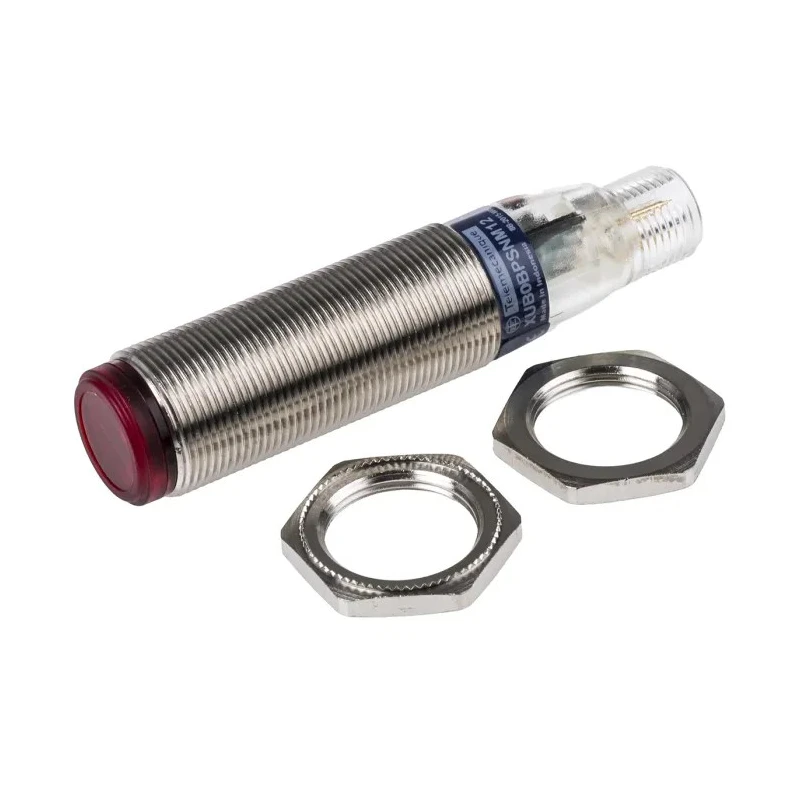

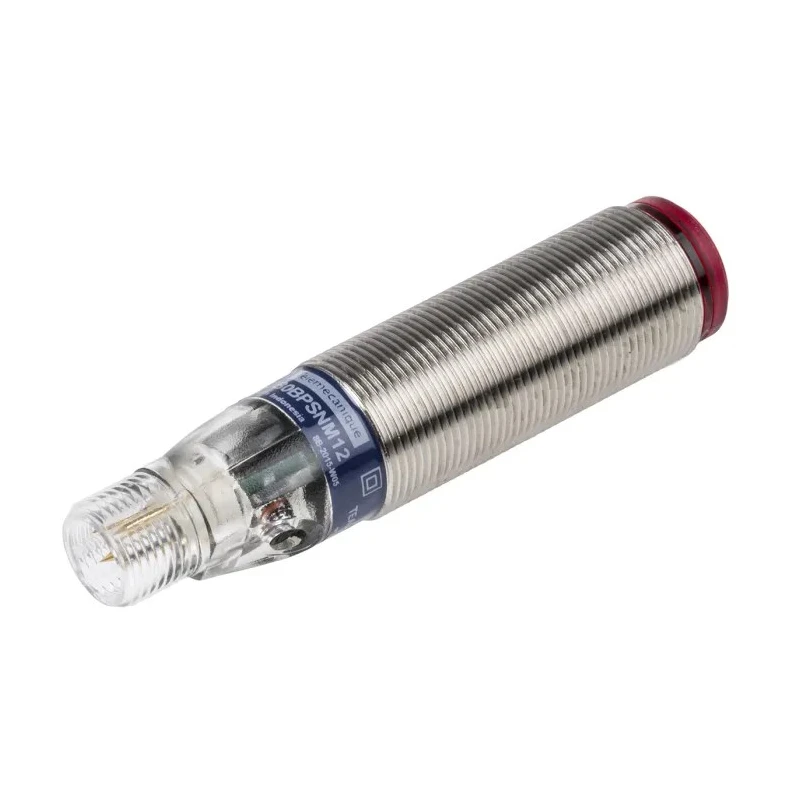

Telemecanique Sensors Through Beam Photoelectric Sensor, Barrel Style, Infrared, 120 mm to 15 m Detection Range XUB0BPSNM12

Telemecanique Sensors XUB0BPSNM12 is a through beam photoelectric sensor designed in a barrel style with a sturdy M18 cylindrical metal housing and nickel-plated brass enclosure material. It features an infrared light source and a broad detection range from 120 mm to 15 m, making it suitable for a variety of industrial applications including automation, material handling, and food and beverage industries.

This sensor operates on a DC supply voltage of 12 to 24 V and has a maximum current rating of 100mA. The output is a PNP type with programmable NO/NC switching capability, connected via a 4-pin M12 male connector. Its fast response time of 2 milliseconds allows precise and reliable detection of objects within the sensing range.

The robust design includes IP65, IP67, and IP69K protection ratings according to IEC standards, ensuring resistance to dust, water jets, and high-pressure cleaning. The sensor is equipped with multiple LED indicators for output state (yellow), supply (green), and stability (red), facilitating easy operational monitoring and maintenance.

Dimensionally, it measures 18 mm in diameter and 78 mm in length, weighing approximately 0.055 kg. The device is rated to operate effectively within a temperature range of -25°C to +55°C, providing versatility for various environmental conditions.

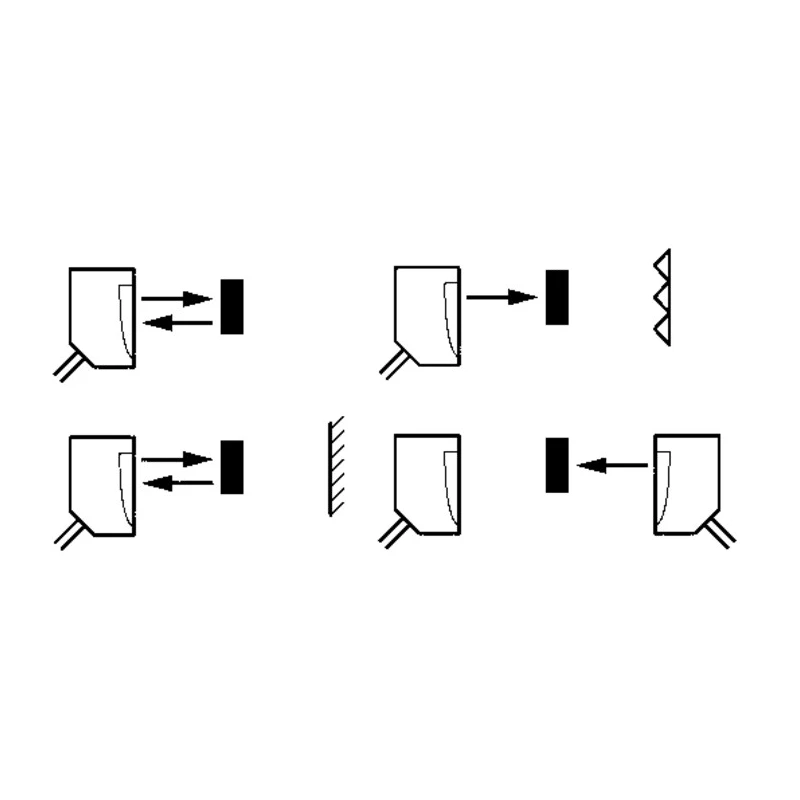

Telemecanique's OsiSense XU range offers a comprehensive selection of photoelectric sensors providing multimode detection including infrared diffuse emission with background suppression and polarized reflex functions.

This sensor is made in Indonesia and is supplied new, reflecting high manufacturing standards. It is well-suited for integration into industrial automation systems requiring precise and durable sensing solutions.

Equipped with a 4-pin M12 terminal type for robust connections. Operates on a maximum DC voltage of 24V with a maximum current of 100mA. Housing is made of durable nickel-plated brass with a PMMA lens for longevity. Wide operating temperature range from -25°C to +55°C suitable for various environments.

Thread size M18 cylindrical metal housing offers easy installation. Fast response time of 2 ms for efficient detection. Includes LED indicators for output state, supply status, and stability monitoring. Protection rating conforms to IEC 60529 standards, providing IP65, IP67, and IP69K protection.

Ideal for industrial automation, material handling, food and beverage sectors for precise object detection. Originates from Indonesia and is supplied in new condition. Explore a broad range of Photoelectric Sensors on EnvMart for industrial and commercial automation needs.
