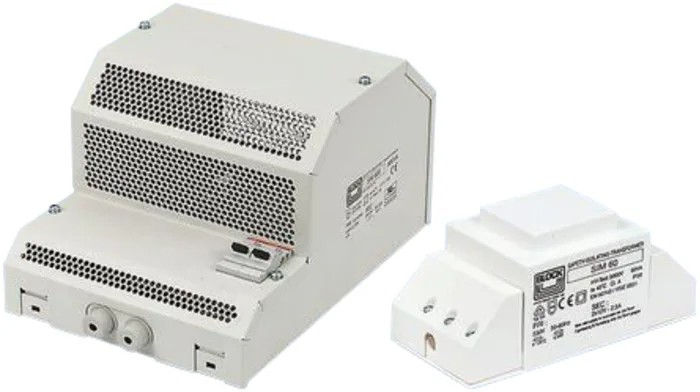

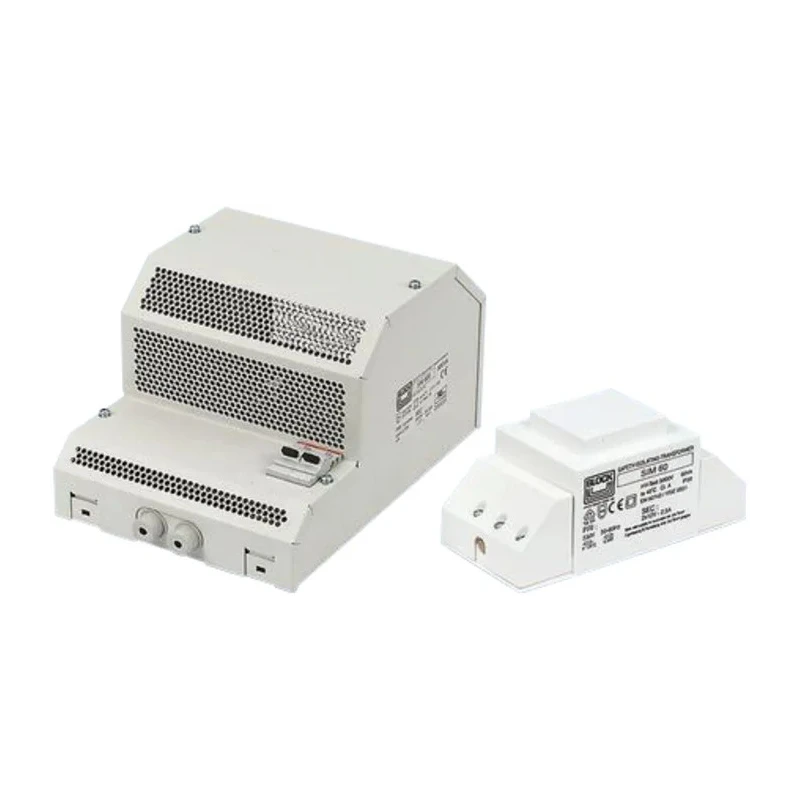

Block Site Transformer 500 VA, 230 V ac Primary, 2 x 115 V ac Secondary, 2.17 A Output Current TIM500

Free Delivery in India | Lowest Global Shipping Charges

Block Site Transformer 500 VA, 230 V ac Primary, 2 x 115 V ac Secondary, 2.17 A Output Current TIM500

Name: Block Site Transformer 500 VA, 230 V ac Primary, 2 x 115 V ac Secondary, 2.17 A Output Current TIM500
Brand: Block
SKU: 120832
Price: 450.29 USD
Availability: InStock



Category Power Supplies & Transformers Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Length	283mm
Model	TIM500
Depth	123mm
Gross Weight	9.1kg
Width	245mm
Mount Type	Fixing Hole
Construction	Class 2
Series	TIM
Output Current	2.17A
Maximum Operating Temperature	40°C
Primary Voltage	230 V ac
Secondary Voltage	2 x 115 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Protection Index	IP20
Insulation Category	Class B (Typical)
Max ambient temp	+40°C

Key Features

The transformer features a 2.17 A output current suitable for various electronic applications.
Constructed with a metal enclosure offering robust mechanical protection and thermal overload safeguards.
Equipped with fixing holes for easy mounting and installation in electrical panels.
Provides electrical safety isolation with dual secondary windings capable of series or parallel connection.
Designed to operate efficiently up to 88% efficiency with a maximum ambient temperature rating of +40°C.
Adheres to international standards including EN 61558-2-4, VDE 0570 Part 2-4, UL 506, and IEC 61558-2-4 for quality and safety compliance.
The insulation is rated as Class B with a protection index of IP20 ensuring safety under typical industrial environments.
Suitable for heavy-duty usage in construction sites, laboratories, manufacturing facilities, and power supply applications.

Product Description

Block TIM500 site transformer is a single-phase transformer with a 230 V ac primary input voltage and two independent 115 V ac secondary outputs capable of delivering 2.17 A output current. Engineered for safety isolating applications, this transformer provides electrical isolation and power step-down for sensitive electronic equipment.

Encased in a robust metal housing, it offers durability and thermal overload protection to ensure reliable operation in demanding industrial and commercial environments. The transformer is designed with fixing holes for straightforward mounting and installation in control panels or machinery.

This model features dual secondary windings that can be connected in series or parallel, catering to versatile installation requirements. The transformer demonstrates high efficiency, approximately 88%, ensuring energy savings during operation. It supports a frequency range from 50 Hz to 60 Hz.

Compliant with standards such as EN 61558-2-4, VDE 0570 Part 2-4, UL 506, and IEC 61558-2-4, this transformer assures safety and reliability. The insulation is rated at Class B, capable of handling up to +40°C ambient temperature, and the unit has an IP20 protection index to safeguard internal components.

The product is suitable for use in construction sites, manufacturing plants, laboratories, and industrial power supply scenarios. It includes thermal overload protection and short-circuit proof design enhancing operational safety.

Provides two 115 V secondary outputs for flexible wiring configurations. Mounting holes allow for fixed and secure installation. Operates with a maximum operating temperature of 40°C, ensuring stable performance.

This model originates from Germany and is categorized as a new product. It is an ideal choice for applications requiring reliable power supply isolation and voltage transformation.
