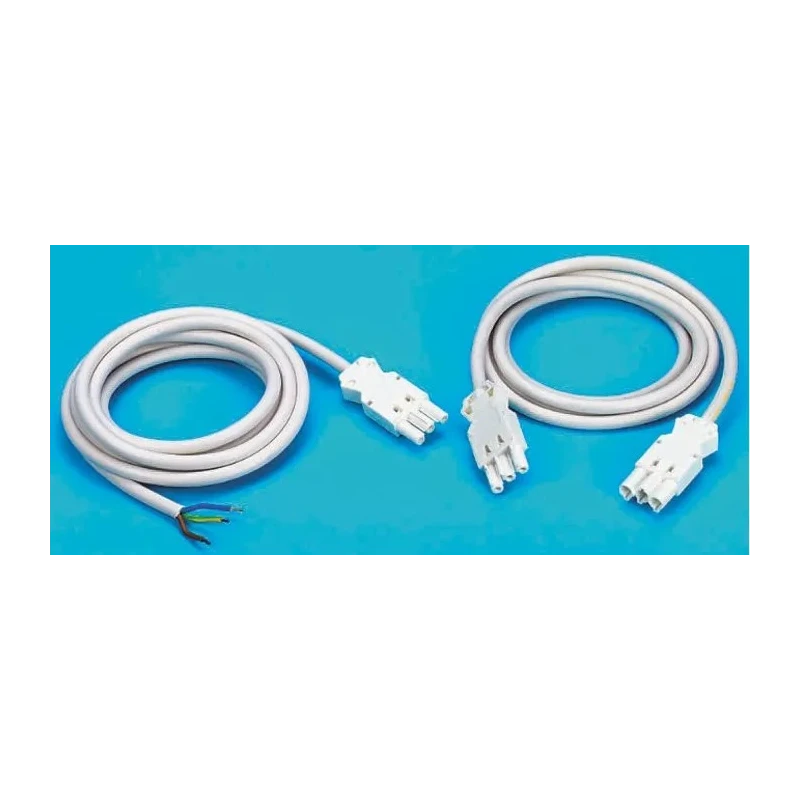

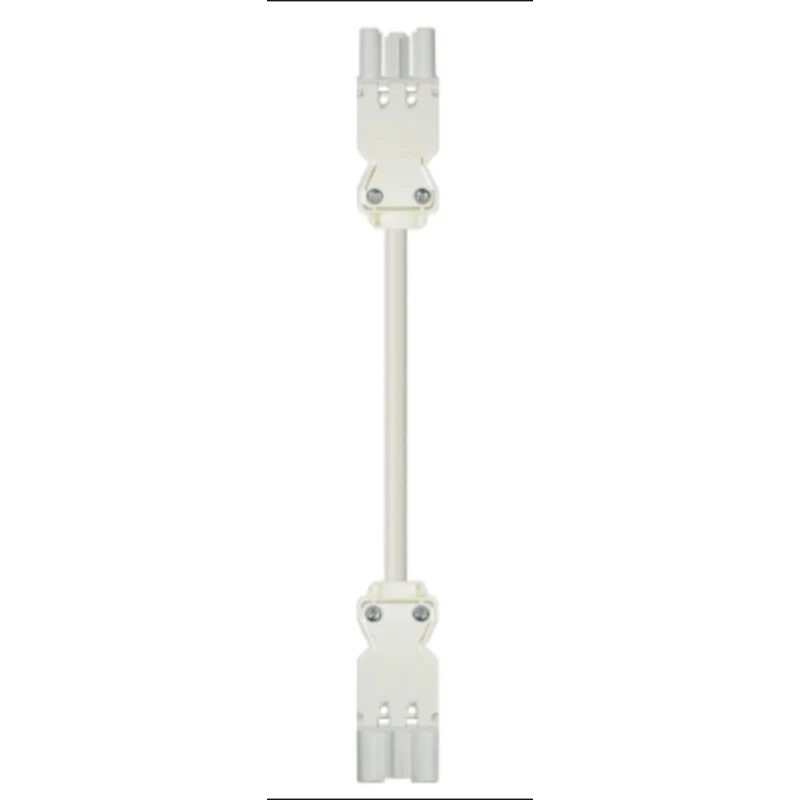

Wieland GST18 Series Cable Assembly Male/Female, 3-Pole, 16A, 3-Way, 250V, IP40 92.232.1000.2
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Diameter | 10.3mm |
| Brand | Wieland |
| Colour | White |
| IP Rating | IP40 |
| Cable Length | 1m |
| Number Of Ways | 3 |
| Mount Type | Cable |
| Contact Material | Brass |
| Sub Type | Cable Assembly |
| Wire size | 1.5mm² |
| Pole Format | 3 |
| Contact Plating | Tin |
| Contact Gender | Male/Female |
| Connector Gender | Male/Female |
| Lighting Connector Current | 16A |
| Wieland GST18 Series Cable Assembly Male/Female, 3-Pole, 16A, 3-Way, IP40Brand | Wieland |
Key Features
- The cable assembly includes male and female connectors for flexible power applications.
- It supports electrical ratings of up to 16A at 250V with a 1.5mm² flexible cable.
- Constructed with brass contact material with tin plating for reliable conductivity.
- Features strain relief with a top cover for mechanical durability and longevity.
- Designed with mechanical and colour coding to prevent mismating and ensure safe connections.
- The device supports connection cycles between 50 to 100 at 16A resistive load.
- Panel cut-out size is 33 x 15.6mm, with an approximately 1m cable length.
- Operates reliably at temperatures up to 100°C with thermoplastic insulation.
Product Description
Wieland 92.232.1000.2 GST18 Series Cable Assembly Male/Female is a high-quality 3-pole, 16A, 3-way power connector designed for industrial and commercial electrical applications offering a safe and reliable connection rated at 250V with IP40 ingress protection.
This cable assembly utilizes a flexible 1.5mm² cable with brass, tin-plated contacts to guarantee excellent conductivity and resistance to wear. The design includes strain relief via a top cover, enhancing mechanical stability and durability for use in rigorous environments.
Mechanical and colour coding ensure safe separation of different applications, preventing mismating errors. The connector assembly supports connection cycles ranging from 50 to 100 at a 16A resistive load, demonstrating robust endurance for repeated use.
Its panel cut-out dimensions are 33 x 15.6mm and it can operate at temperatures up to 100°C with thermoplastic insulation providing excellent electrical safety. This product is suited for lighting applications, construction sites, data, signal, control, power transmission, shop displays, and exhibition stand wiring.
The assembly is factory pre-assembled and manufactured to meet DIN VDE 0628 and EN/IEC 61535 standards, ensuring compliance with recognized quality and safety benchmarks. The cable assembly includes male and female connectors designed for flexible power applications.
Rated for 16A current at 250V voltage with a 1.5mm² flexible cable. Brass contacts are tin-plated for enhanced corrosion resistance and conductivity. Integrated strain relief with a top cover improves mechanical strength.
Colour coding and mechanical keying prevent mismating in complex installations. Supports 50 to 100 connection cycles at a 16A resistive load. Compact panel cut-out size of 33 x 15.6mm for easy mounting. Thermoplastic insulation allows operation at temperatures up to 100°C.
Ideal for use in lighting, industrial, and commercial electrical systems. Manufactured in Germany under DIN VDE 0628 and EN/IEC 61535 standards.
This Wieland GST18 Series Cable Assembly is a reliable choice for industrial, construction, HVAC, manufacturing, and commercial electrical wiring projects requiring safe, durable, and easy-to-install connector solutions. Explore more Power Connectors and wiring solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This cable assembly is rated for 16A at 250V, making it suitable for various power applications.
The cable length of this assembly is approximately 1 meter.
It features male and female connectors designed for flexible power applications.
This model has an IP40 ingress protection rating, which indicates protection against solid objects larger than 1mm but not against water.
The required panel cut-out size for this assembly is 33 x 15.6mm.
The contacts are made of brass and are tin-plated for enhanced conductivity and corrosion resistance.
It supports between 50 to 100 connection cycles at a 16A resistive load.
This model can operate reliably at temperatures up to 100°C.
Yes, it includes strain relief with a top cover to enhance mechanical stability and durability.
It is manufactured to meet DIN VDE 0628 and EN/IEC 61535 standards, ensuring compliance with recognized quality and safety benchmarks.
The assembly features thermoplastic insulation, providing excellent electrical safety.
This cable assembly is manufactured in Germany.
