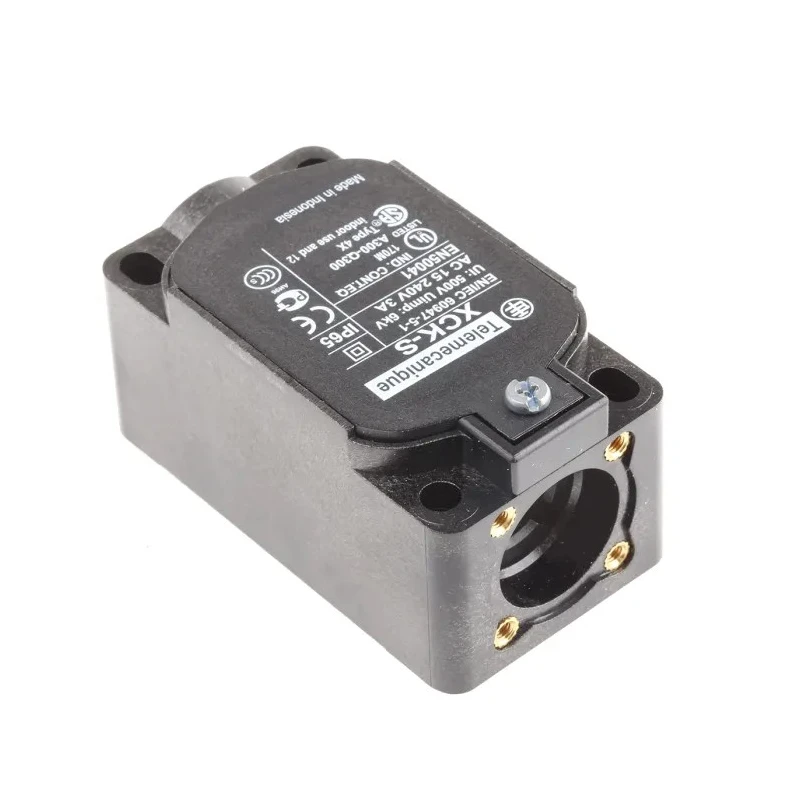

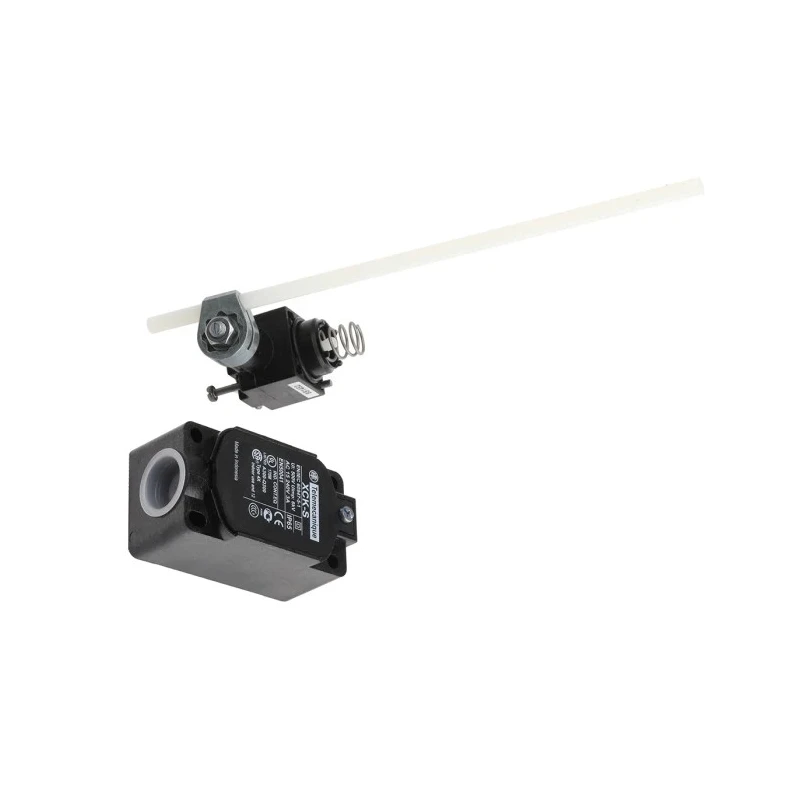

Telemecanique Sensors OsiSense XC Series Lever Limit Switch 1 NO/1 NC IP65 Plastic Housing 240V AC 3A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 72.5mm |
| Model | IP65 |
| Depth | 36mm |
| IP Rating | IP65 |
| Width | 40mm |
| Housing Material | Plastic |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | Screw Clamp |
| Standards/Approvals | CCC, CSA, REACH, RoHS, UL |
| Operating Force | 0.1Nm |
| Mechanical Life | 20000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | PG13 |
Key Features
- Equipped with a lever actuator for precise mechanical switching.
- Rated for switching current of 3A at 240V AC and 250V DC.
- IP65 protection ensures resistance against dust and water ingress.
- Robust plastic housing withstands temperatures between -25°C and 70°C.
- Features screw clamp terminal type for secure electrical connections.
- Mechanical life rated at 20 million cycles for long-term reliability.
- Includes PG13 conduit entry for convenient installation.
Product Description
Telemecanique Sensors XCKS159 Lever Limit Switch belongs to the OsiSense XC series, featuring a lever actuator with snap action contact type. This limit switch is engineered for reliable detection and control in industrial automation systems. With a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact, it is suitable for varied control tasks such as escalators, material handling, and electrical assembly equipment.
The device supports an AC switching voltage of 240V and a DC switching voltage of 250V, with a maximum switching current of 3 amperes. The plastic housing and IP65 ingress protection rating ensure durability and protection against dust and water, enabling use in demanding industrial environments. Operating temperature ranges from -25°C up to 70°C, ensuring performance stability under different conditions.
The mechanical life expectancy of the switch is rated at 20 million cycles, confirming its suitability for high-use industrial applications. The switch features screw clamp terminals for secure wiring and a PG13 conduit entry facilitating flexible installation options.
Compact in size, it measures 72.5mm length, 40mm width, and 36mm depth, providing ease of integration in control panels or machinery. The low operating force of 0.1Nm reduces actuator wear and ensures precise actuation.
This limit switch complies with standards including CCC, CSA, REACH, RoHS, and UL, reflecting global acceptance for safety and environmental considerations. It does not hold hazardous area certification but is ideal for general industrial use.
Equipped with lever actuator for precise mechanical actuation. Contact configuration of 1 NO and 1 NC with snap action contact type. Switching current rated at 3 amperes with 240V AC and 250V DC voltage ratings. IP65 rated plastic housing for dust and water resistance.
Mechanical life of 20 million cycles ensuring durability. Operates within temperature range of -25°C to 70°C. Screw clamp terminal type and PG13 conduit entry for installation flexibility. Compact dimensions for easy mounting in industrial setups.
This limit switch is a reliable choice for industrial automation, electrical, and material handling applications requiring precise position and limit detection. Explore more Limit Switches and related control devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The limit switch has a maximum switching current of 3A and is rated for 240V AC and 250V DC.
It features a lever actuator, which provides precise mechanical actuation.
The switch has an IP65 rating, ensuring resistance against dust and water ingress.
The dimensions are 72.5mm in length, 40mm in width, and 36mm in depth.
It operates within a temperature range of -25°C to 70°C.
The mechanical life is rated at 20 million cycles, indicating long-term reliability for high-use applications.
It features screw clamp terminals for secure electrical connections.
It complies with several standards including CCC, CSA, REACH, RoHS, and UL.
The contact configuration is 1 normally open (NO) and 1 normally closed (NC).
It includes a PG13 conduit entry for convenient installation options.
The operating force is 0.1Nm, which helps reduce actuator wear.
The country of origin for this limit switch is India.
