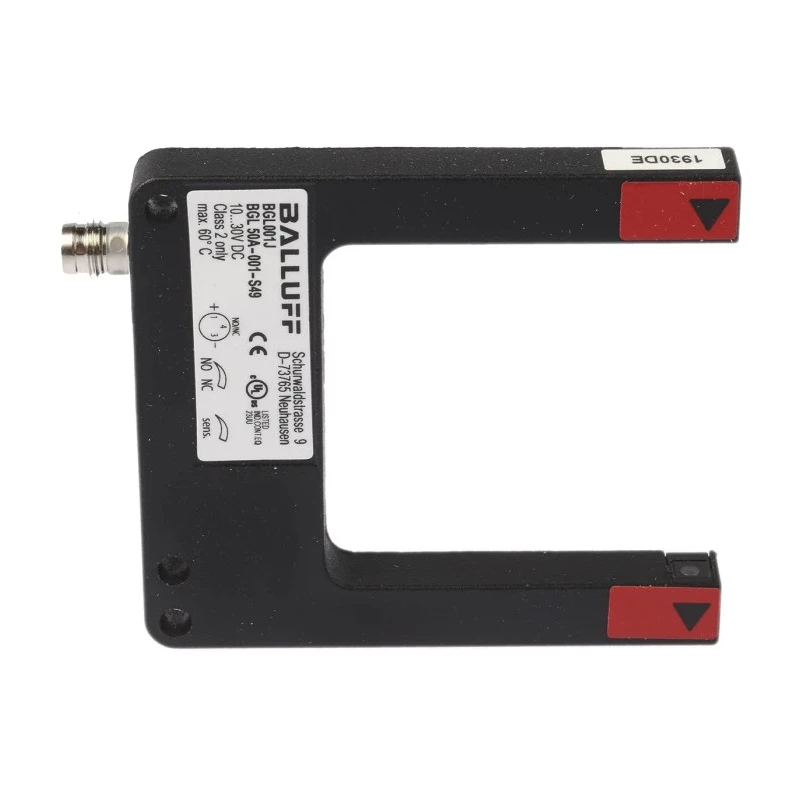

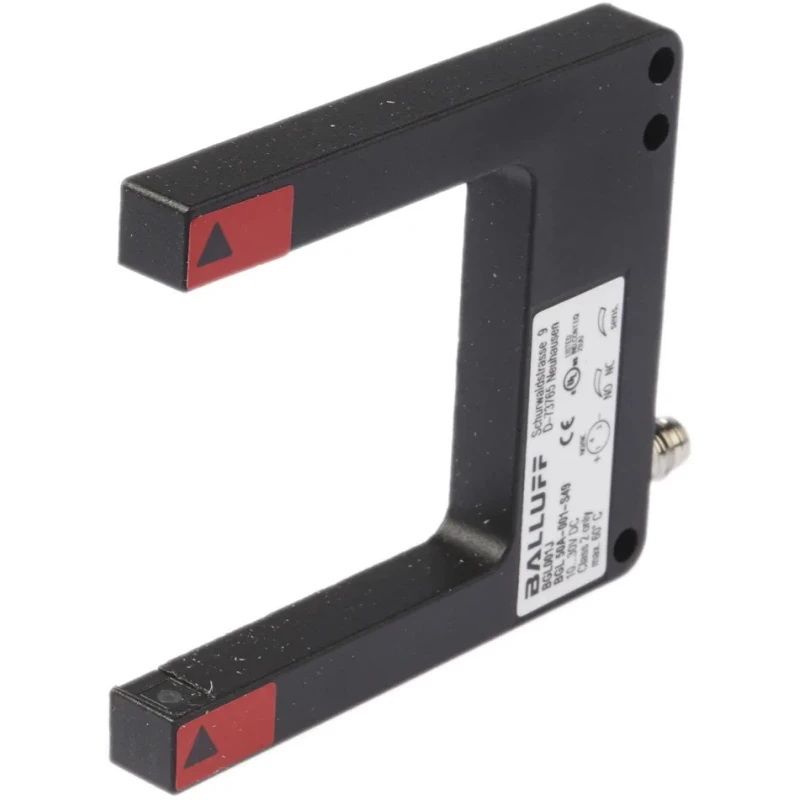

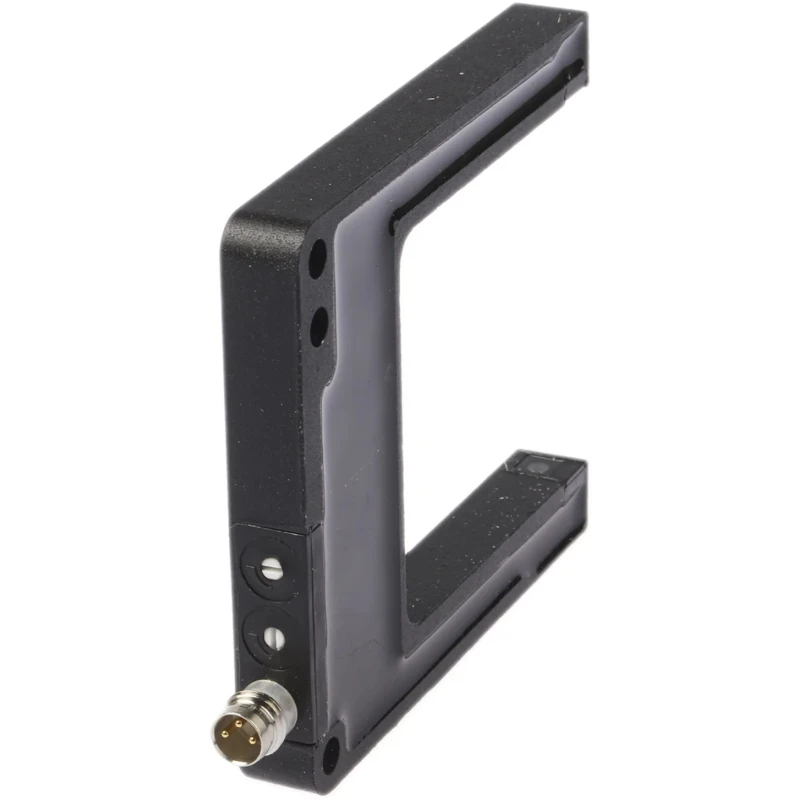

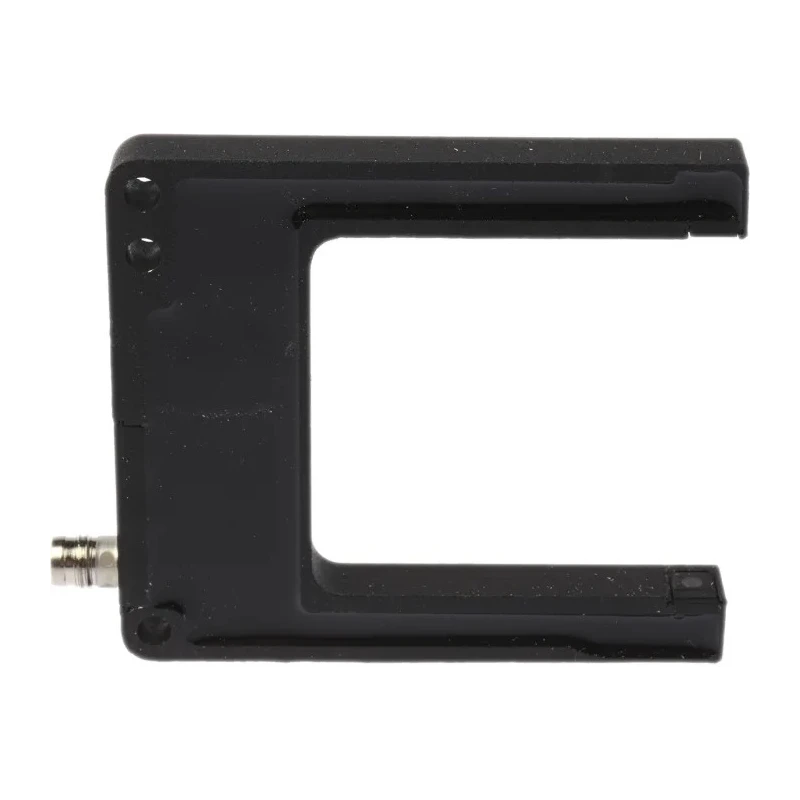

BALLUFF Through Beam Photoelectric Sensor Fork Style 50 mm Detection Range 30V DC 200mA Output PNP IP67 BGL 50 A-001-S49
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | BALLUFF |
| Light Source | LED |
| Detection range | 50 mm |
| Model | BGL 50 A-001-S49 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Anodised Aluminium |
| Output type | PNP |
| Series | BGL |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 200mA |
| DetectIon Type | Through Beam |
| Terminal type | Connector |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | IEC 60947-5-2, CE |
| Materials Detected | Glass |
| Sensor Style | Fork |
| BALLUFF Through Beam Photoelectric Sensor, Fork Sensor, 30 mm, PNP, IP67Brand | BALLUFF |
Key Features
- The fork sensor style enables accurate slotted switch applications for small component detection.
- Output type is PNP with a maximum current of 200 mA for reliable switching.
- Operates with a supply voltage of 10 to 30 V DC, providing flexible integration.
- Sensor housing is made from anodised aluminium ensuring durability in industrial environments.
- IP67 rating protects against dust and water, suitable for harsh settings.
- Designed for glass material detection with LED light source and red emitted light indication.
- Adjustable sensitivity control allows fine-tuning for precise operation.
- Reversible switching (PNP NO / NC) and screw mount type provide installation versatility.
Product Description
BALLUFF BGL 50 A-001-S49 through beam Photoelectric Sensor fork style features a 50 mm detection range with PNP output and a robust IP67 rated anodised aluminium housing. This sensor is designed for high-accuracy detection of glass materials in industrial automation applications.
The fork sensor style consists of a slotted switch with sender and receiver enclosed in a durable metal housing. It supports high switching frequency and requires only one cable connection. The sensor is equipped with an LED display showing red emitted light for clear operational status.
Key features include adjustable sensitivity control and reversible switching configured for PNP normally open or normally closed output. It is mounted using screws, ensuring secure fitting in manufacturing or automation environments.
Operating conditions cover a temperature range from -10°C to 60°C with a maximum current of 200 mA and maximum DC voltage of 30 V. The sensor complies with IEC 60947-5-2 and CE standards, ensuring compliance and safety.
This sensor is widely used in industrial manufacturing, automation, material handling, and packaging sectors requiring reliable small component or glass detection. The IP67 rating guarantees protection against dust and water ingress, making it suitable for harsh or outdoor installations.
The fork sensor style provides unbeatable accuracy for small component and detail detection. Anodised aluminium housing offers high durability and robust protection. Adjustable sensitivity enables fine control based on application needs.
Reversible switching output offers versatile logic configuration. LED indicator provides clear operational feedback.
EnvMart offers this BALLUFF sensor model BGL 50 A-001-S49 for automation and control applications requiring precise and reliable presence detection with a compact fork sensor design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BALLUFF BGL 50 A-001-S49 has a detection range of 50 mm, making it suitable for precise small component detection.
This model features a PNP output type with a maximum current of 200 mA for reliable switching operations.
It operates with a supply voltage range of 10 to 30 V DC, allowing for flexible integration into various systems.
This sensor is specifically designed for detecting glass materials, making it ideal for applications requiring precise material identification.
The sensor has an IP67 rating, providing protection against dust and water ingress, suitable for harsh environments.
The operating temperature range for this sensor is from -10°C to 60°C, accommodating various industrial conditions.
This model is mounted using screws, ensuring a secure installation in manufacturing or automation environments.
Yes, it features adjustable sensitivity control, allowing fine-tuning for precise operation based on application needs.
The sensor utilizes an LED light source, providing clear operational feedback with red emitted light indication.
It complies with IEC 60947-5-2 and CE standards, ensuring safety and compliance for industrial applications.
The housing is made from anodised aluminium, which enhances durability in industrial environments.
This model features an IO-Link interface type, allowing for easy integration and communication with other devices.
