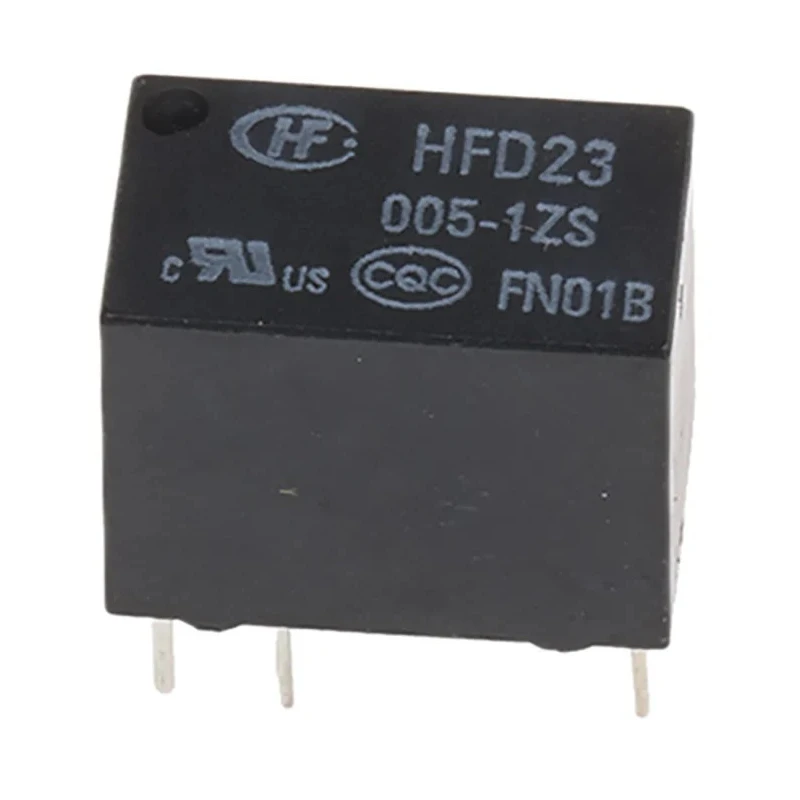

RS PRO PCB Signal Relay 5V Coil Voltage 2A Switching Current SPDT Contact Configuration 0476757P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 10mm |
| Length | 12.5mm |
| Model | 0476757P |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated Silver Nickel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Contact Rating | 0.5A @ 125Vac, 1A @ 30Vdc |
| Minimum Operating Temperature | -30°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2504Ω |
| Coil Voltage | 5V |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 230mW |
| Switching Power | 60W |
| High Coil sensitivity | 150mW |
Key Features
- Features SPDT contact configuration for versatile switching.
- Capable of switching AC voltage up to 125V and DC voltage up to 60V.

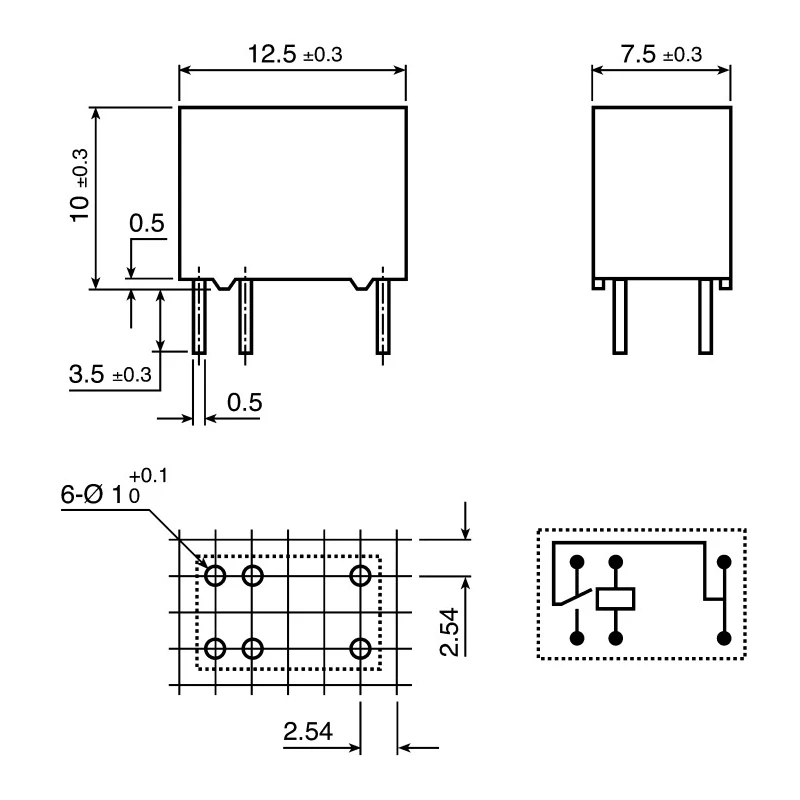

- Compact dimensions with length 12.5mm, width 7.5mm, and height 10mm.
- Operates reliably in temperatures from -30°C to 70°C.
- High coil sensitivity with coil power consumption of 230mW.
- Contact material is gold plated silver nickel ensuring durability.
- Low contact resistance of 100 milliohms for efficient conduction.
- Coil resistance is 2504 ohms, providing stable operation.
Product Description
RS PRO 0476757P PCB Signal Relay is a subminiature relay specifically engineered for printed circuit board mounting applications. It features a 5V coil voltage and a maximum switching current capacity of 2A, making it suitable for low power signal switching tasks. The relay is designed with an SPDT contact configuration, allowing for single-pole double-throw switching needs.
Its compact form factor, measuring 12.5mm in length, 7.5mm in width, and 10mm in height, allows for efficient circuit designs with space constraints. Operating temperature ranges from -30°C to 70°C ensure reliable performance in varied environmental conditions.
The relay coil exhibits a high sensitivity with coil power consumption of just 230mW. Contact resistance is low at 100 milliohms to minimize power losses. Gold plated silver nickel contact materials provide enhanced conductivity and corrosion resistance, while the coil resistance of 2504 ohms supports stable energization.
The relay is wash tight, allowing for cleaning processes without performance degradation, and it holds multiple certifications including RoHS compliance and approvals from UL (File no. E133481) and CQC (File no. CQC02001001948), confirming its quality and safety.
This product is ideal for use in electronics manufacturing, automation systems, signal conditioning, and general electrical applications requiring reliable small signal switching in industrial, HVAC, and commercial environments.
Features SPDT contact configuration for versatile switching. Capable of switching AC voltage up to 125V and DC voltage up to 60V. Compact dimensions with length 12.5mm, width 7.5mm, and height 10mm. Operates reliably in temperatures from -30°C to 70°C.
High coil sensitivity with coil power consumption of 230mW. Contact material is gold plated silver nickel ensuring durability. Low contact resistance of 100 milliohms for efficient conduction. Coil resistance is 2504 ohms, providing stable operation.
Wash tight design suitable for various industrial applications. Complies with RoHS standards and has UL and CQC approvals. Explore the broader range of RS PRO relays and signal conditioning components on EnvMart to find reliable solutions for industrial and electronic control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 2A.
The coil voltage for this relay is 5V.
This relay operates reliably in temperatures ranging from -30°C to 70°C.
The contact material is gold plated silver nickel, which enhances conductivity and corrosion resistance.
The contact resistance is low at 100 milliohms, which helps in efficient conduction.
The coil resistance is 2504 ohms, providing stable operation.
It is capable of switching AC voltage up to 125V and DC voltage up to 60V.
The coil power consumption is 230mW, indicating high coil sensitivity.
Yes, it complies with RoHS standards and has approvals from UL and CQC.
This relay is designed for PCB (Printed Circuit Board) mounting.
