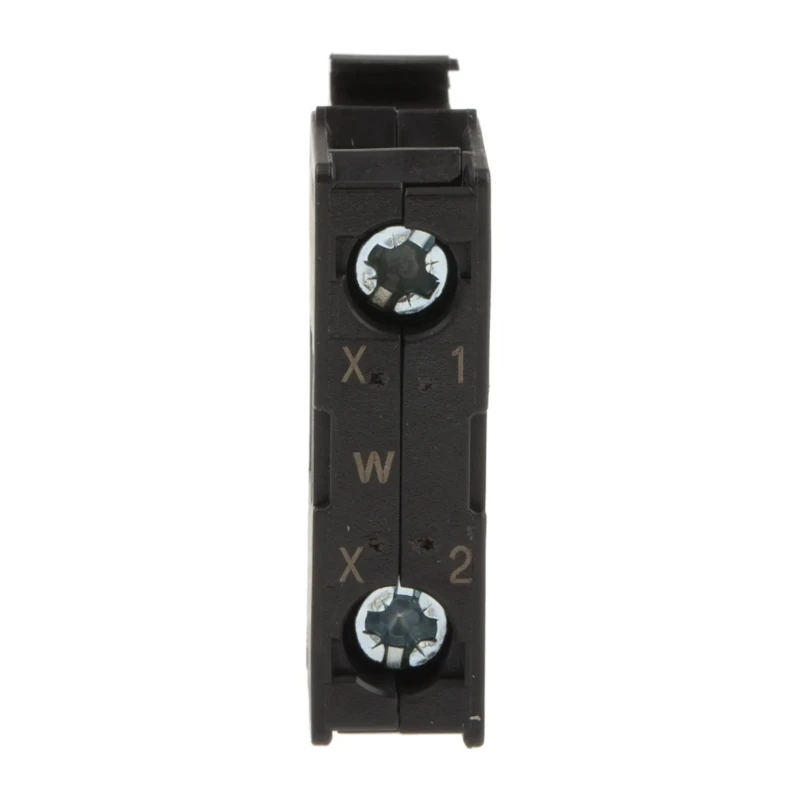

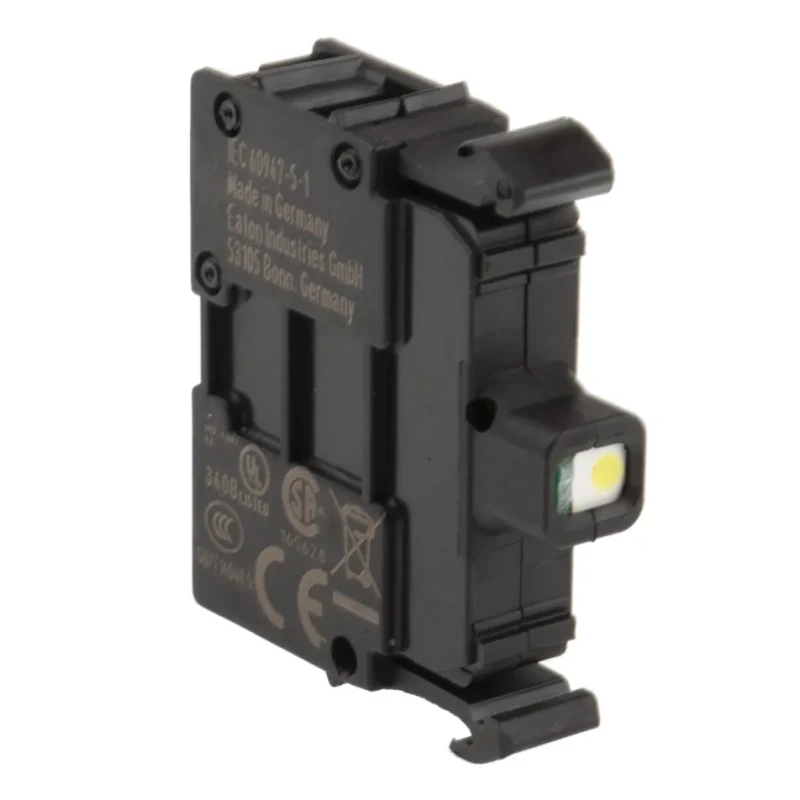

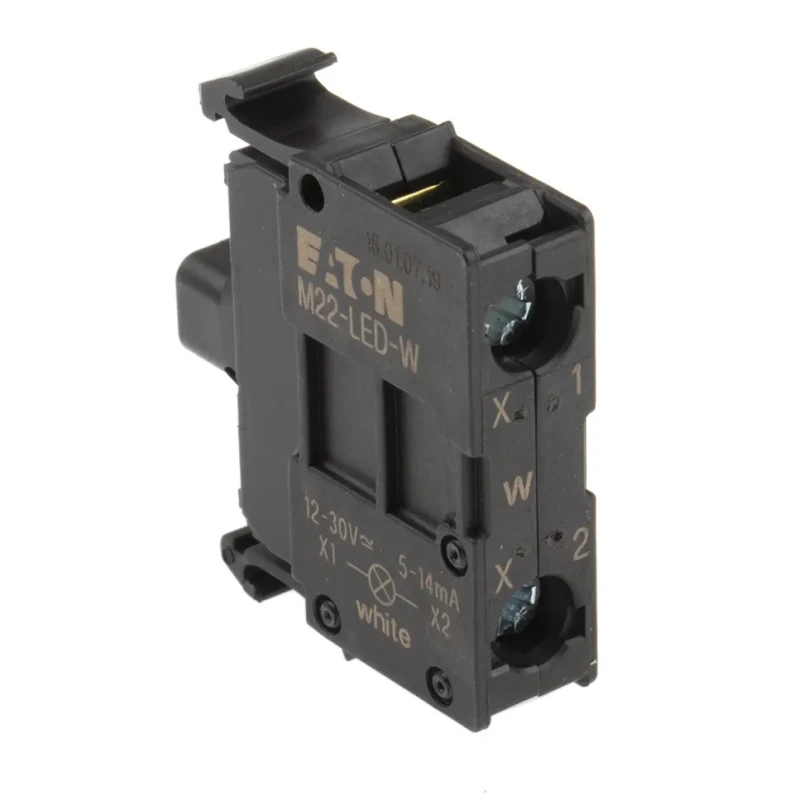

Eaton RMQ Titan M22 Series Light Block 12 to 30 V AC/DC, White LED Illumination, Screw Terminal, 37.2mm x 216557 M22-LED-W
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 12, 12, 30, 30V ac |
| Brand | Eaton |
| Height | 37.2mm |
| Length | 71mm |
| Model | 216557 M22-LED-W |
| Width | 30mm |
| Current Rating | 15mA |
| Series | RMQ Titan M22 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Illumination type | LED |
| Block Type | Light Block |
| Illumination Colour | White |
| Eaton RMQ Titan M22 Series Light Block, 30 V ac, 30V dc, White LightBrand | Eaton |
Key Features
- The light block features white LED illumination for clear indicator visibility.
- Compatible with M22 contact blocks and push button heads for modular assembly.
- It supports a voltage range of 12 V AC/DC up to 30 V AC/DC.
- Screw terminal type ensures secure electrical connection.
- The unit has a compact size of 37.2 mm height, 30 mm width, and 71 mm length for space-efficient installation.
- Designed for harsh conditions with operating temperature from -25°C to 70°C.
- IP66 rated for protection against dust and high-pressure water jets.
- Complies with UL 508, IEC/EN 60947-5 and CSA standards.
Product Description
Eaton 216557 M22-LED-W is a RMQ Titan M22 Series Light Block designed for industrial automation and control applications. This unit offers reliable white LED illumination to signal machine status or operational conditions effectively within a wide voltage range from 12 V AC/DC up to 30 V AC/DC. Its modular design allows compatibility with M22 contact blocks and push button heads, providing flexibility to create tailored control panel setups.
The light block features screw terminals for secure, easy electrical connection and a compact slim form factor measuring 37.2 mm in height, 30 mm in width, and 71 mm in length, ideal for tight panel spaces in mechanical and manufacturing environments. It is IP66-rated, offering excellent protection against dust ingress and high-pressure water jets, making it suitable for demanding industrial environments.
Operating temperature ranges from -25°C to 70°C, enabling dependable performance even in harsh conditions. The block conforms to international safety and quality standards including UL 508, IEC/EN 60947-5, IEC 60947-5-1, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, and CE marking assurance.
This product does not include a fixing collar; however, a compatible fixing collar (RS Stock No. 399-3589) can be acquired separately to complete the installation as required. White LED illumination for clear indication.
Screw terminal connection ensures secure wiring. Wide voltage compatibility from 12 V to 30 V AC/DC. Compact dimensions suitable for space-constrained panels. IP66 rated for dust and water resistance protection. Wide operating temperature range between -25°C to 70°C.
Meets various regulatory standards for industrial safety. Modular design compatible with Eaton M22 series components. Fixing collar sold separately for customized mounting options.
This Eaton RMQ Titan M22 Series Light Block is ideal for automation, manufacturing, machine control, and other industrial applications requiring reliable visual indicators to improve operational safety and efficiency. Browse our comprehensive range of Eaton components and accessories for complete control panel solutions on EnvMart.
Explore more products in our Push Button Contact Blocks & Light Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage range of 12 V AC/DC up to 30 V AC/DC.
The light block has a height of 37.2 mm, a width of 30 mm, and a length of 71 mm.
It features white LED illumination for clear indicator visibility.
The operating temperature ranges from -25°C to 70°C.
It uses screw terminals for a secure electrical connection.
Yes, it is compatible with M22 contact blocks and push button heads for modular assembly.
The current rating is 15 mA.
No, the fixing collar is sold separately, but a compatible collar can be acquired.
It is IP66 rated, providing protection against dust and high-pressure water jets.
It complies with UL 508, IEC/EN 60947-5, and CSA standards.
The country of origin for this light block is Germany.
It is suitable for industrial automation, manufacturing, and machine control applications requiring reliable visual indicators.
