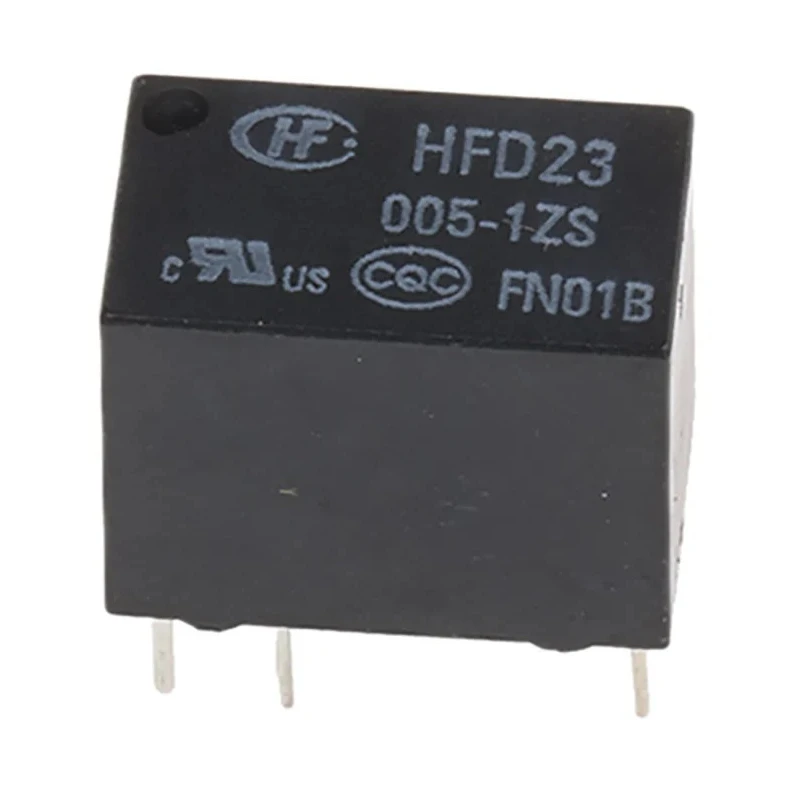

RS PRO PCB Signal Relay 5V Coil 2A Switching Current SPDT Contact Configuration 125V AC 60V DC 476-757

RS PRO 476-757 PCB Signal Relay is a subminiature, high-performance relay specifically engineered for PCB mounting. It operates with a 5V coil voltage and offers a maximum switching current of 2A, making it ideal for signal conditioning and automation applications requiring precise electrical control.

This relay exhibits a high coil sensitivity of 150mW, facilitating low power consumption during operation. Its gold plated silver nickel contacts provide excellent conductivity and resistance to corrosion, maintaining reliable switching performance even in rigorous industrial environments.

The contact configuration is Single Pole Double Throw (SPDT), supporting switching voltages up to 125V AC and 60V DC, with a total switching power rating of 60W. It can handle contact currents of 0.5A at 125VAC and 1A at 30VDC, suitable for a broad range of control circuit demands.

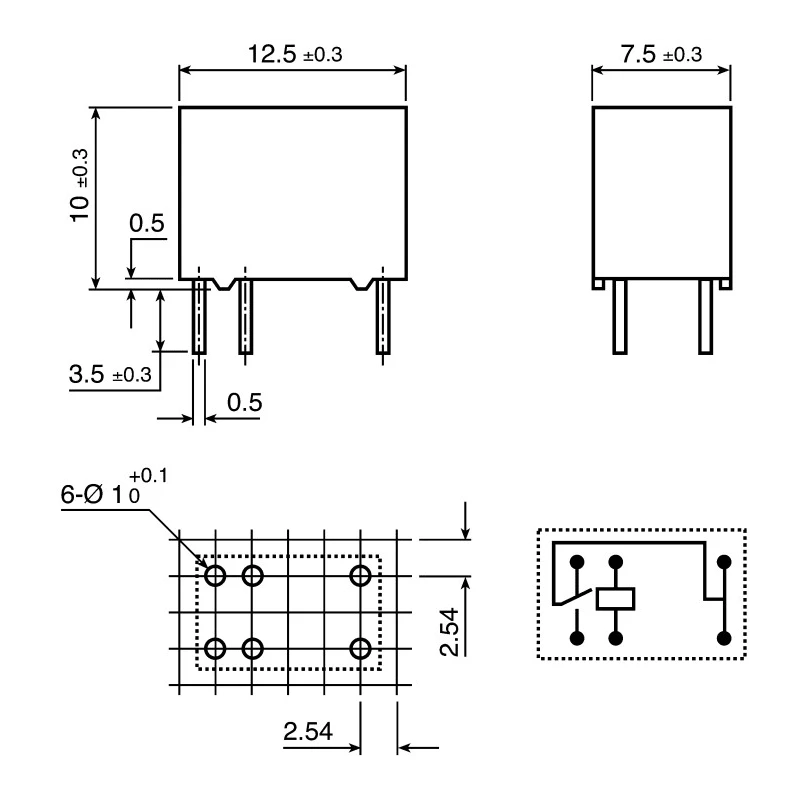

Physically compact with dimensions measuring 12.5mm in length, 7.5mm in width, and 10mm in height, the relay is designed for easy integration on printed circuit boards using PCB terminal connections. Its robust construction ensures an operating temperature range from -30°C to 70°C, allowing it to perform reliably under varied industrial conditions.

The relay is wash tight, enhancing durability when exposed to cleaning processes or harsh environments. It meets RoHS compliance, affirming its adherence to environmental and safety standards.

Subminiature Signal Relay designed for PCB mounting applications. High coil sensitivity of 150mW for energy-efficient activation. Gold plated silver nickel contact material ensures durability and low contact resistance. Operating temperature range from -30°C to 70°C to suit varied environments.

Capable of switching 125V AC and 60V DC voltages with a maximum switching power of 60W. Compact dimensions: 12.5mm length, 7.5mm width, and 10mm height. Contact rating supports 0.5A at 125VAC and 1A at 30VDC. Wash tight construction suitable for industrial and automation signaling applications.

Compliant with RoHS standards, ensuring environmental safety. Features PCB terminal type for easy printed circuit board installation.

This relay is well suited to applications in industrial automation, electrical equipment signaling, manufacturing controls, and laboratory instrumentation. It provides reliable switching for low power signal circuits and enhances production efficiency by offering a compact and dependable relay solution.
