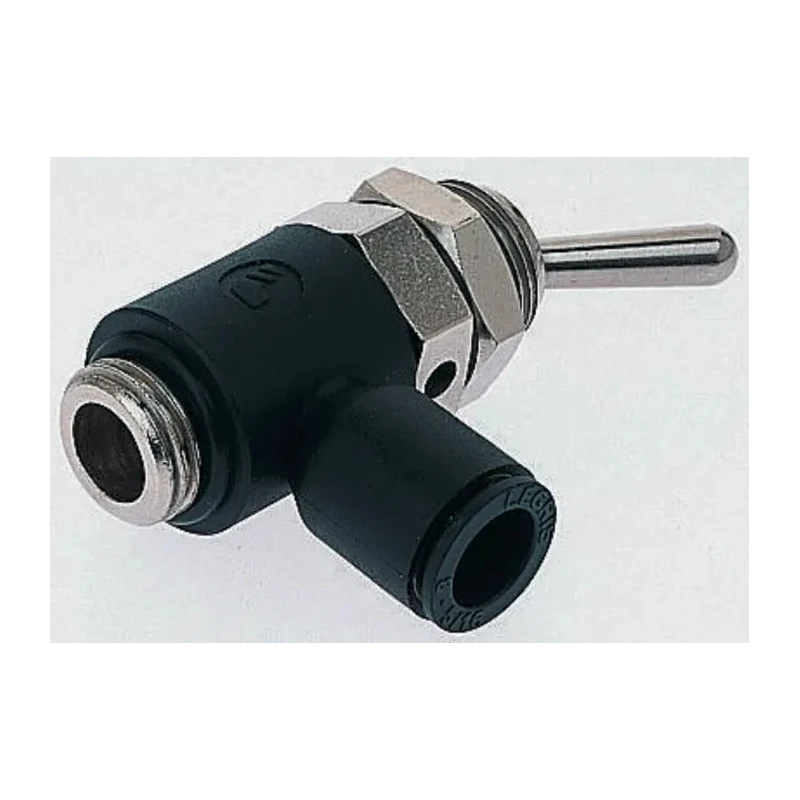

Legris Toggle Lever Pneumatic Manual Control Valve 7800 Series G 1/4, 3/2 Function Brass Nylon Body 10 bar 7800 08 13

Legris 7800 08 13 Pneumatic Manual Control Valve is a high-quality control valve designed to provide manual operation in pneumatic fluid power systems. This valve utilizes a toggle lever for precise actuation and is part of the 7800 series, which is widely recognized for robust industrial performance.

With a 3/2 valve function, it offers three ports and two operating positions, enabling effective control of airflow with immediate component isolation in air line systems. The valve ports feature G 1/4 size with push-in connection type, facilitating secure and quick connection to pneumatic circuits. The male port gender ensures compatibility with common industrial fittings.

Manufactured from brass and nylon materials, this valve combines strength and durability along with resistance to corrosion and wear. It supports a maximum operating pressure of 10 bar and functions reliably in harsh environments from -10°C up to +80°C. The valve is designed to be fully orientable and comes with a panel mounting nut to accommodate flexible installation requirements.

It is especially suited for applications requiring frequent venting and is ideal for use in confined spaces. The supply type valve can be directly mounted onto single-acting cylinders, while the control type can be mounted on manifold blocks for convenient assembly. These features make it valuable for industrial, laboratory, HVAC, manufacturing, and water treatment pneumatic systems.

Standards and approvals including DI: 97/23/EC (PED), RG: 1907/2006 (REACH), and DI: 2002/95/EC (RoHS) ensure that this pneumatic manual control valve meets stringent European compliance for safety and environmental responsibility.

The valve features a 3/2 function facilitating supply, system output, and venting operations. Port size is G 1/4 with push-in type connections and male port gender for easy integration. Constructed with durable brass and nylon materials for reliable performance up to 10 bar pressure.

Operates efficiently within temperature range of -10°C to +80°C, suitable for various industrial settings. Fully orientable body and actuating toggle lever with panel mounting nut included for flexible installation. Complies with standards including PED 97/23/EC, REACH 1907/2006, and RoHS 2002/95/EC ensuring quality and safety.

Ideal for frequent venting applications and confined spaces like single acting cylinders and manifold blocks.

This Pneumatic Manual Control Valve is an essential component for industrial automation and fluid power systems, offering efficient and reliable manual control. For more pneumatic valves and fittings, browse EnvMart’s Industrial Valves & Valve Fittings category.
