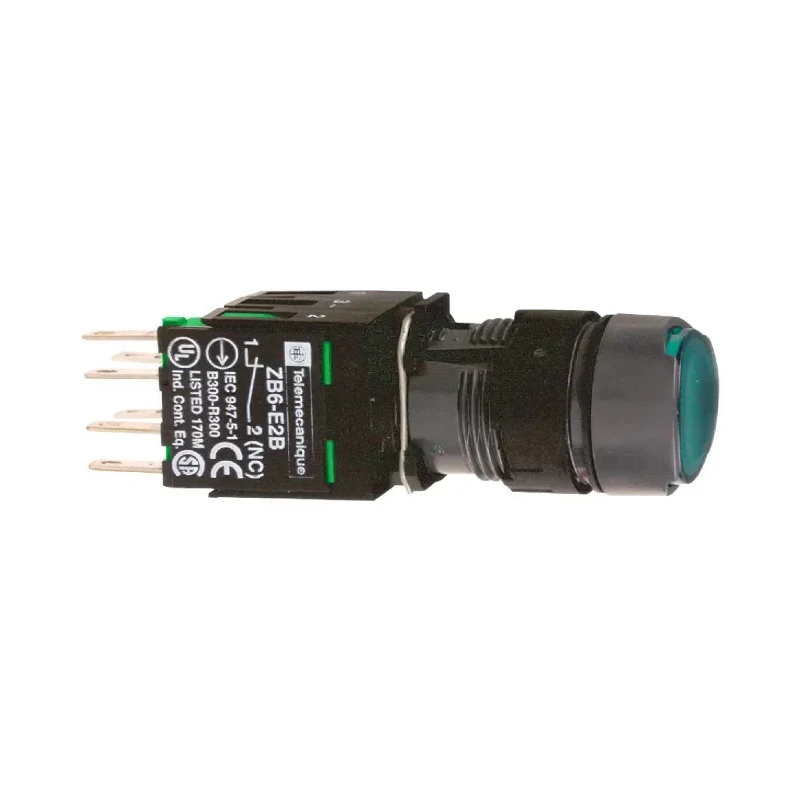

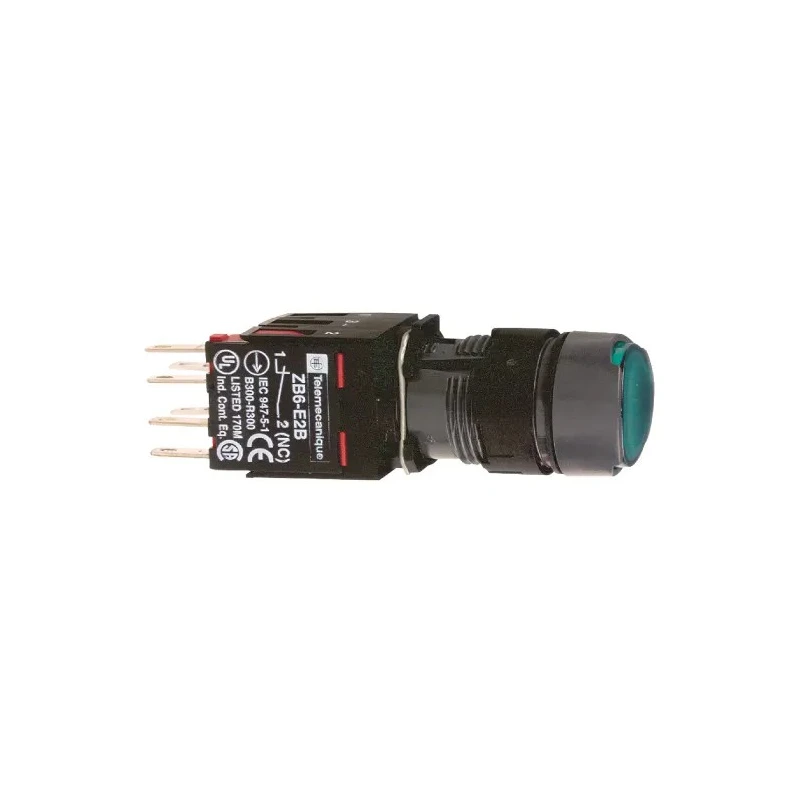

Schneider Electric Harmony XB6 Series Illuminated Latching Push Button Switch, Panel Mount, 16 mm Cutout, SPST XB6AF3B1B
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 18mm |
| Length | 57mm |
| Model | XB6AF3B1B |
| IP Rating | IP65 |
| Width | 18mm |
| Mount Type | Panel |
| Series | Harmony XB6 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Quick Connect |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Green |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Contact AC Voltage | 240V |
| Legend | Blank |
Key Features
- The switch features a green actuator color for clear visibility.
- Designed with latching switch operation for stable on/off control.
- Illuminated push button with a green LED for indication.
- Panel cutout size is standardized at 16 mm for ease of installation.
- IP65 rating provides dust and water protection in industrial environments.
- Operates reliably within a temperature range of -25°C to 70°C.
- Rated for 250 V DC and 240 V AC contact voltages.
- Features quick connect terminal type for efficient wiring.
Product Description
Schneider Electric XB6AF3B1B Harmony XB6 Series illuminated push button switch is engineered for industrial and automation applications requiring reliable control interfaces. This latching switch is designed for panel mounting using a 16 mm cutout, making it compatible with standard electrical enclosures and control panels.
The green illuminated actuator provides clear operational feedback with an integrated green LED light rated for 12-24V operation. SPST contact configuration enables simple on/off switching functionality suitable for diverse control circuits.
With an IP65 ingress protection rating, the switch resists dust and water jets, ensuring durability in demanding industrial environments including electrical panels, manufacturing machines, and automation systems. Operating temperatures between -25°C and 70°C make it suitable for varied climatic conditions.
Compact dimensions of 18 mm height and width with a length of 57 mm allow for seamless integration in space-constrained panels. The quick connect terminals facilitate fast wiring during installation or maintenance.
The switch features a round actuator style with a blank legend, allowing for custom labeling or use as a generic control button. Its robust construction and reliable switch operation support continuous industrial use in HVAC, manufacturing, and process control applications.
The switch is part of the well-known Harmony XB6 series, reflecting Schneider Electric’s quality standards. Designed for panel mounting and ease of installation with standard cutout dimensions. Durable IP65 rating suitable for harsh industrial conditions.
Compatible with 12-24V LED illumination for status indication. Suitable for use in electrical control panels, automation systems, and machinery interfaces. Explore more reliable Push Button Switches and accessories from Schneider Electric in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single Pole Single Throw) contact configuration, enabling simple on/off switching functionality.
The switch has a height and width of 18 mm and a length of 57 mm, making it compact for installation in space-constrained panels.
It requires a standardized panel cutout size of 16 mm for proper mounting in electrical enclosures and control panels.
It operates reliably within a temperature range of -25°C to 70°C, suitable for various climatic conditions.
The switch features quick connect terminals, facilitating efficient wiring during installation or maintenance.
This switch has an IP65 rating, providing dust and water protection suitable for industrial environments.
It is rated for contact voltages of 250 V DC and 240 V AC, making it versatile for different applications.
The switch features a green LED indicator, providing clear operational feedback when activated.
It has a round actuator style with a blank legend, allowing for custom labeling or generic use.
It is suitable for use in electrical control panels, automation systems, HVAC, manufacturing, and process control applications.
This model is part of the Harmony XB6 series from Schneider Electric, reflecting their quality standards in control interfaces.
The actuator color is green, enhancing visibility and operational clarity in various environments.
