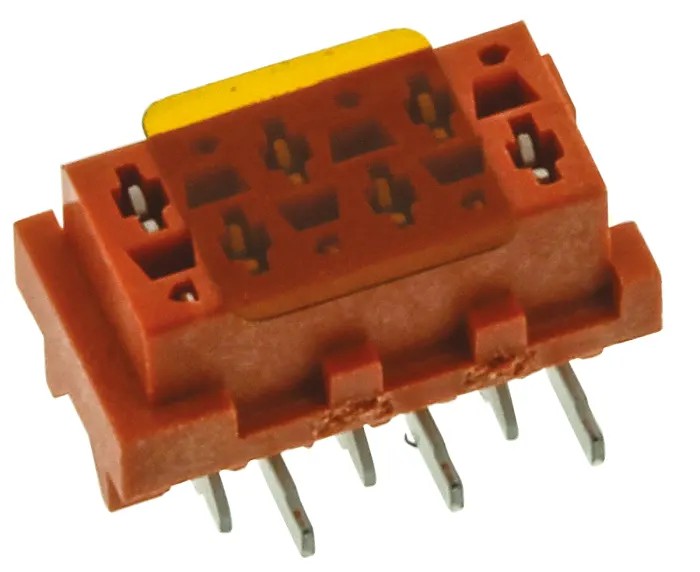

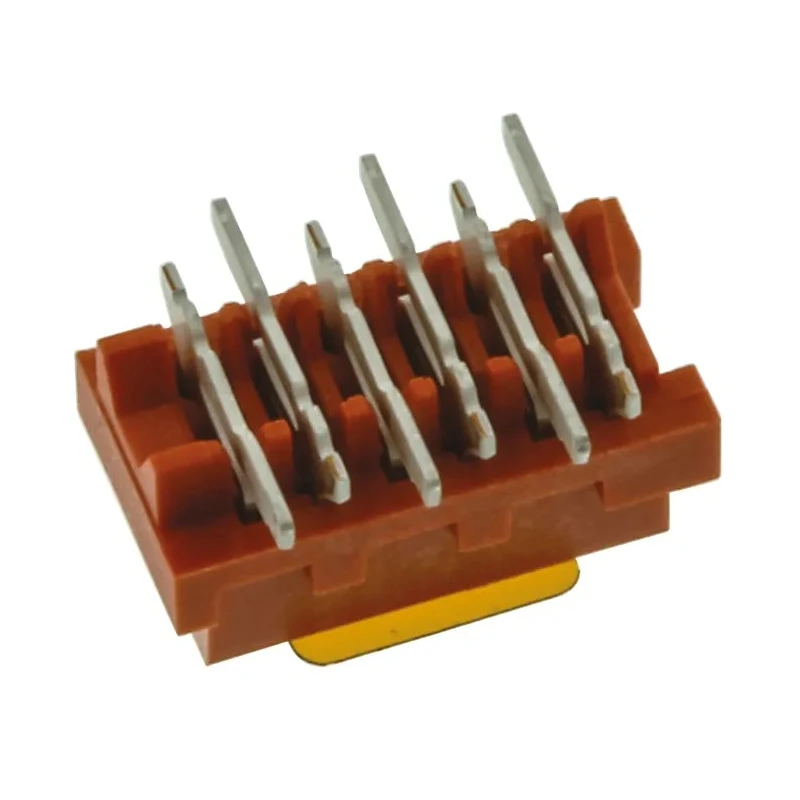

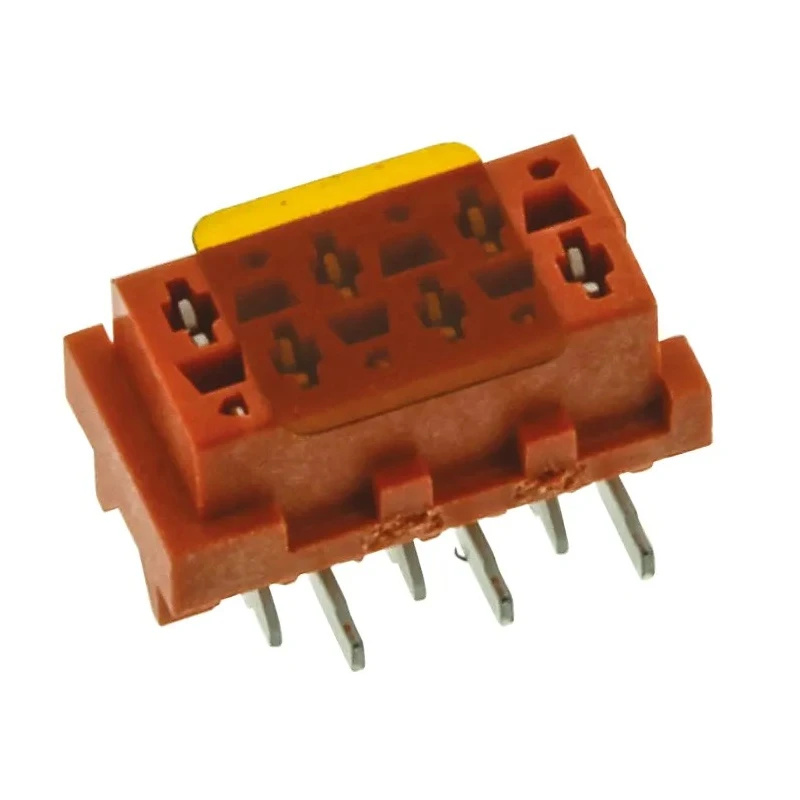

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 6-Contact 2 Row 1.27 mm Pitch Solder 7-188275-6

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 6-Contact 2 Row 1.27 mm Pitch Solder 7-188275-6

Name: TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 6-Contact 2 Row 1.27 mm Pitch Solder 7-188275-6
Brand: TE Connectivity
SKU: 119904



Category PCB Sockets Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	230V
Brand	TE Connectivity
Orientation	Straight
Current	1.5A
Mount Type	Surface
Contact Material	Bronze
Series	Micro-MaTch
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Female-On-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	2.54mm

Key Features

Compact, space-saving design suitable for board-to-board connections.
Female-on-board configuration with a straight orientation.
Contact spring resistant to fretting corrosion ensures reliable connections.
Tin-plated bronze contacts provide excellent conductivity and corrosion resistance.
Polarized to prevent mismating and enhance connection accuracy.
Rated for 1.5A current and 230V voltage capabilities.
Operates reliably between -55°C and 85°C temperature range.
Suitable for industrial, electronic, and communication equipment applications.

Product Description

TE Connectivity 7-188275-6 Micro-MaTch Series Straight Surface PCB Socket is a 6-contact, 2-row female-on-board connector designed with a 1.27 mm pitch and solder termination for surface mounting on printed circuit boards (PCBs). This Micro-MaTch socket connector offers a compact and space-saving solution for board-to-board or wire-to-board electrical interconnections.

The connector’s female contacts incorporate a contact spring system that prevents fretting corrosion, ensuring a gas-tight and fretting-resistant connection. Additionally, a positioning spring absorbs vibrations and thermal expansions, maintaining contact stability under challenging operational conditions.

Its tin-plated bronze contacts provide excellent electrical conductivity and resistance to corrosion. The connector is polarized to prevent mismating and features a straight orientation. Some versions include locking latches for enhanced secure mating in demanding applications.

This product operates at up to 1.5A current and a voltage rating of 230V, within a temperature range from -55°C to 85°C, making it suitable for use in various industrial, manufacturing, electronic, and communications systems, including production equipment, robots, control units, central heating units, car radios, navigation and dashboard systems, base stations, set top boxes, and audio devices.

Compact and space-saving design for efficient PCB layouts. Fully tin-plated bronze contacts for durability and conductivity. Contact spring prevents fretting corrosion for long-term reliability. Polarization prevents incorrect mating and connection errors.

Rated for 1.5A current and 230V voltage operations. Wide operating temperature range from -55°C to 85°C. Surface mount solder termination for PCB assembly. Suitable for a broad range of industrial and electronic applications.

Versions with locking latches available for secure attachments. Explore EnvMart’s extensive range of PCB Sockets and connectors from leading brands like TE Connectivity for reliable electronic component assembly solutions.
