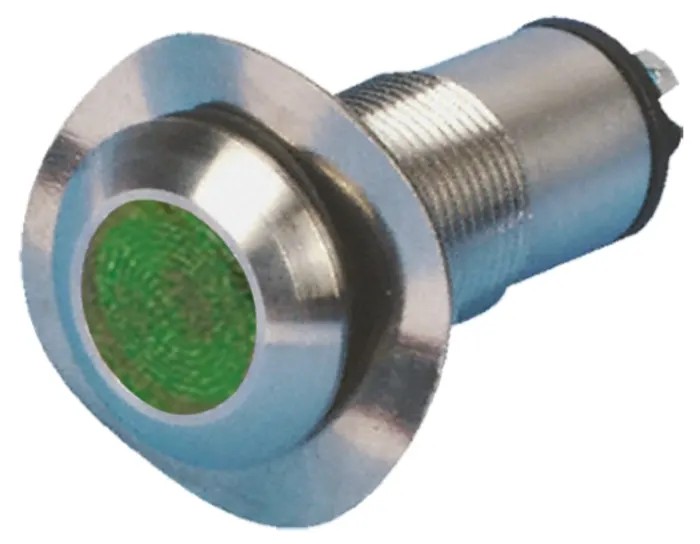

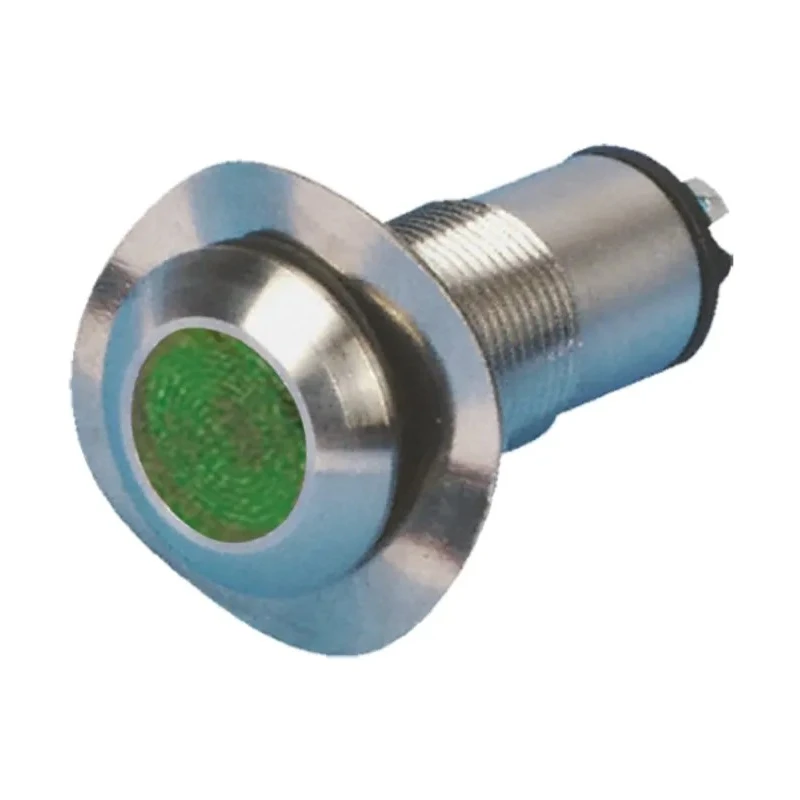

Marl Panel Mount LED Indicator Green 13 mm Mount Hole Size Solder Tab Termination IP67 12V dc 528-532-21
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Marl |
| Length | 38mm |
| IP Rating | IP67 |
| Series | 528 |
| Maximum forward current | 20mA |
| Viewing angle | Wide |
| Sub Type | Panel Mount LED Indicator |
| Terminal type | Solder Tab |
| Lens Colour | Green |
| Luminous Intensity | 2157mcd |
| Standards/Approvals | CE, UKCA, RoHS |
| LED Colour | Green |
| Lens Finish | Diffused |
| Maximum Supply Voltage | 12V dc |
| Minimum Supply Voltage | 12V |
| Mount Hole Size | 13 mm |
| Life Expectancy | 100000 Hours |
| Multicolour/Single Colour | Single Colour |
Key Features
- The LED indicator features a 13 mm mounting hole size for panel integration.
- Green diffused polycarbonate lens provides wide viewing angle and sunlight viewable clarity.
- Robust stainless steel housing with a 17 mm bezel ensures durability and shock resistance.
- Ingress protection rating IP67 offers dust tight and water immersion protection.
- Designed for 12V dc input voltage with a maximum forward current of 20mA and luminous intensity of 2157mcd.
- Includes sealing washer, fixing nut, and lock washer for secure mounting.
- Fully internally potted and resistant to shock and vibration for industrial environments.
- Low profile style with a length of 38 mm for compact installations.
Product Description
Marl 528-532-21 Panel Mount LED Indicator is a green single color indicator designed for use in industrial, laboratory, HVAC, manufacturing, and commercial panel applications. Featuring a 13 mm mount hole size and solder tab termination, this LED indicator operates at 12V dc with a maximum forward current of 20mA and luminous intensity of 2157mcd. The diffused polycarbonate lens and wide viewing angle provide excellent visibility, including in sunlight conditions.
The indicator's IP67 rating ensures it is dust tight and protected against water immersion, making it suitable for harsh environments. The 17 mm robust stainless steel bezel and low-profile 38 mm length housing offer durability and ease of installation. Fully internally potted construction grants superior shock and vibration resistance.
This model includes a sealing washer, fixing nut, and lock washer for reliable panel mounting. With a life expectancy of 100,000 hours, it offers long-term dependable performance. The indicator meets CE, UKCA, and RoHS standards, ensuring compliance with international quality and safety requirements.
The LED indicator features a 13 mm mounting hole size for panel integration. Green diffused polycarbonate lens provides wide viewing angle and sunlight viewable clarity. Robust stainless steel housing with a 17 mm bezel ensures durability and shock resistance.
Ingress protection rating IP67 offers dust tight and water immersion protection. Designed for 12V dc input voltage with a maximum forward current of 20mA and luminous intensity of 2157mcd. Includes sealing washer, fixing nut, and lock washer for secure mounting.
Fully internally potted and resistant to shock and vibration for industrial environments. Low profile style with a length of 38 mm for compact installations. Long life expectancy rated at 100,000 hours for reliable operation.
This Panel Mount LED Indicator is ideal for use in electrical equipment displays, monitoring panels, control panels, and industrial machinery. The product offers superior visibility, weather resistance, and durability for demanding applications. Explore more electronic components and panel mount indicators available in the EnvMart catalog to complement your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current of this model is 20mA.
It has an ingress protection rating of IP67, making it dust tight and protected against water immersion.
The luminous intensity of this indicator is 2157mcd.
The mounting hole size for this LED indicator is 13 mm.
The length of this model is 38 mm, and it features a 17 mm bezel.
It uses solder tab termination.
The life expectancy of this model is rated at 100,000 hours.
It complies with CE, UKCA, and RoHS standards.
The lens color is green and has a diffused finish for improved visibility.
This model is designed for industrial environments, including applications in laboratories, HVAC, and manufacturing.
It includes a sealing washer, fixing nut, and lock washer for secure mounting.
It operates at a supply voltage of 12V dc.
