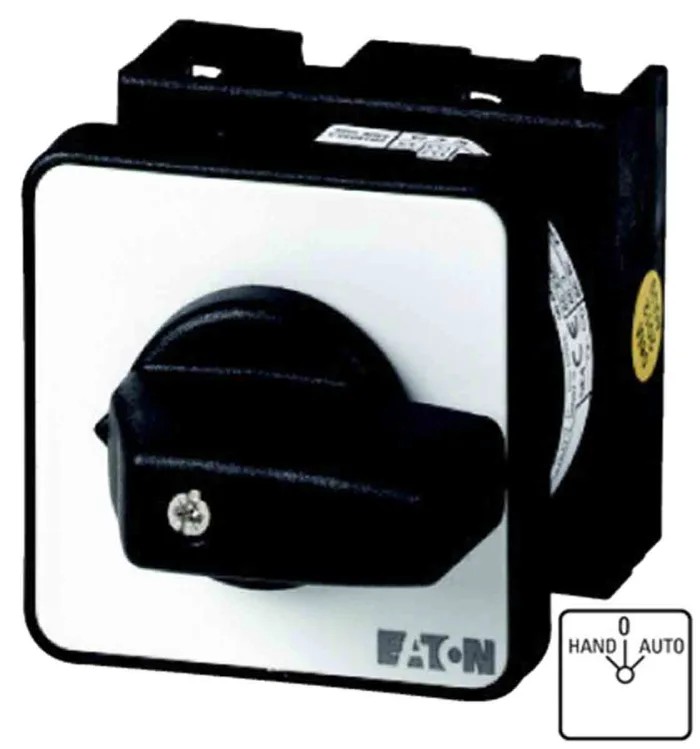

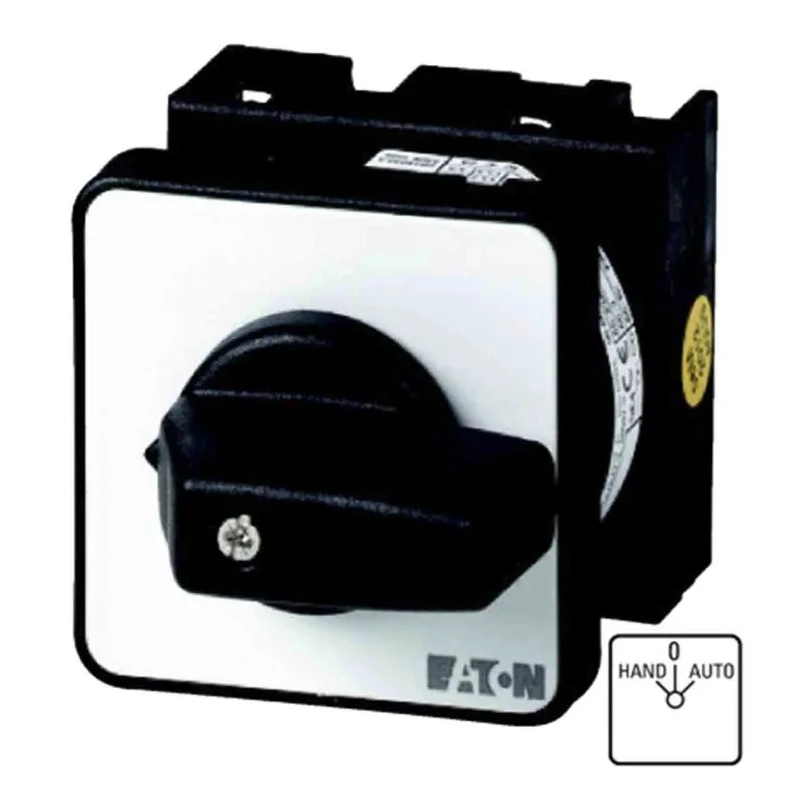

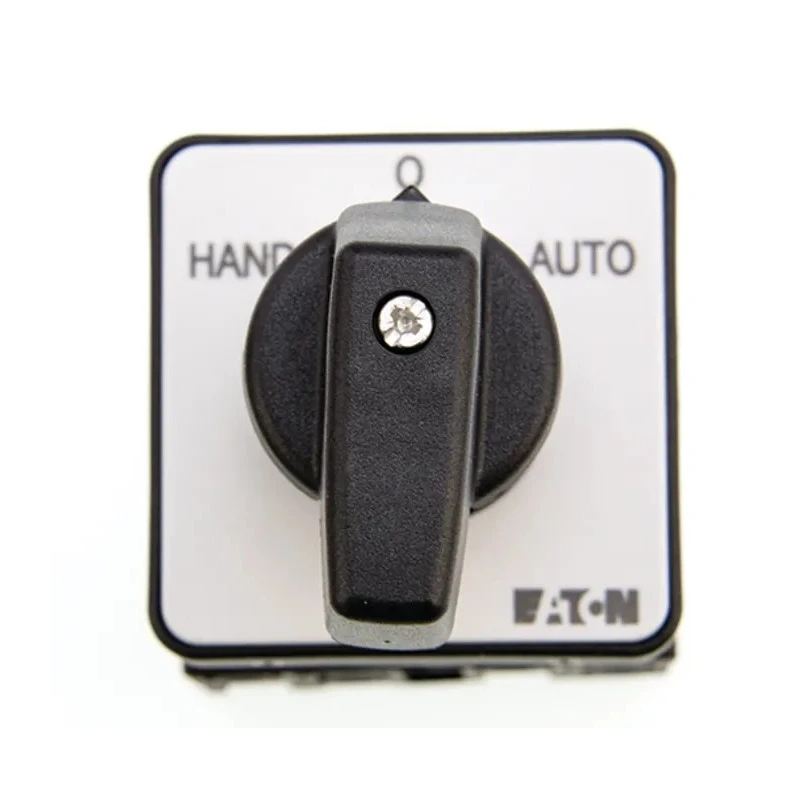

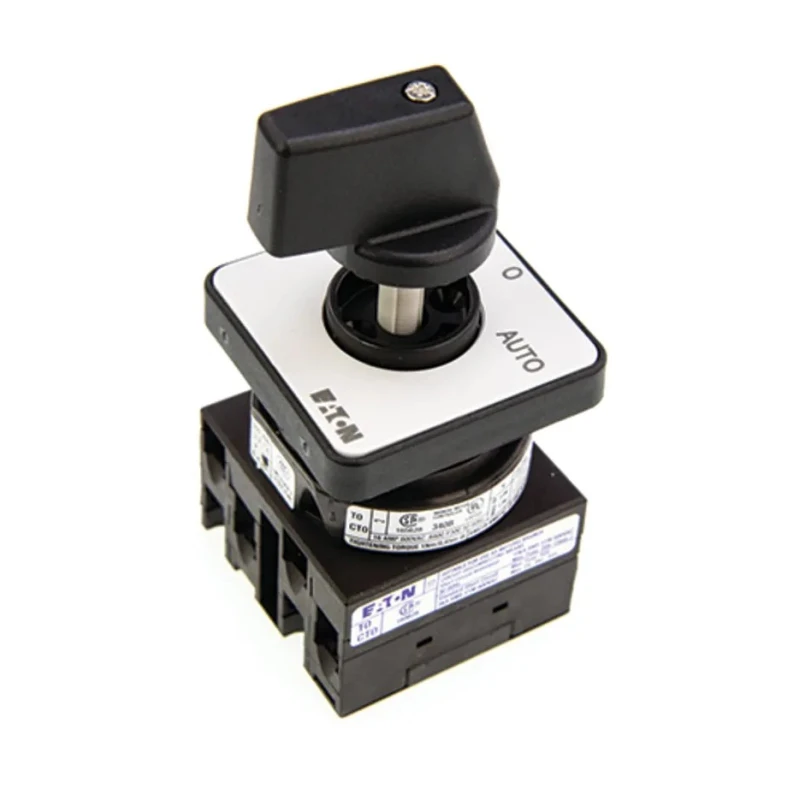

Eaton 3 Position 45° Toggle Actuator Cam Switch 20A 690V AC 78628223 T0-2-15432/E/EZ-P1(RS294-7759)
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Length | 48mm |
| Model | 78628223 T0-2-15432/E/EZ-P1(RS294-7759) |
| Depth | 100mm |
| Width | 48mm |
| Series | T0 |
| Actuator Type | Toggle |
| Number of Positions | 3 |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | IEC/EN 60947 |
| Contact Voltage | 690V ac |
| Contact Current | 20A |
| Angle of Throw | 45 ° |
| Eaton 3 Position 45 ° 20 ABrand | Eaton |
Key Features
- This cam switch operates with a 3-position toggle actuator for precise control.
- It supports a maximum contact current of 20 amperes, ideal for moderate power circuits.
- The device is built for single-phase electrical systems with screw terminal connections for reliable wiring.
- The compact dimensions (48mm width, 48mm length, 100mm depth) facilitate space-efficient panel integration.
- Compliance with IEC/EN 60947 standards ensures safety and quality assurance.
- The toggle actuator design supports both manual and automatic operational modes.
- Constructed as a double pole cam switch to enhance circuit control and reliability.
Product Description
Eaton 78628223 T0-2-15432/E/EZ-P1(RS294-7759) 3 Position 45° Toggle Actuator Cam Switch is engineered for exceptional performance in electrical automation and control systems. Rated for a maximum current of 20A and voltage of 690V AC, this switch combines reliability with precise switching capabilities.
The device features a toggle actuator enabling intuitive manual operation and is suitable for use in control panels for electrical machinery as well as service distribution board mounting. Its double pole configuration allows for efficient power management and enhanced safety in electrical circuits.
Compact dimensions of 48mm width, 48mm length, and 100mm depth allow installation in constrained spaces without compromising functionality. The screw terminal type ensures secure and straightforward wiring connections, minimizing maintenance and installation errors.
Manufactured according to IEC/EN 60947 standards, this cam switch meets international quality and safety requirements. It is designed for industrial, laboratory, construction, HVAC, and manufacturing applications demanding robust and reliable switching solutions.
This cam switch operates with a 3-position toggle actuator for precise control. It supports a maximum contact current of 20 amperes, ideal for moderate power circuits. The device is built for single-phase electrical systems with screw terminal connections for reliable wiring.
The compact dimensions (48mm width, 48mm length, 100mm depth) facilitate space-efficient panel integration. Compliance with IEC/EN 60947 standards ensures safety and quality assurance. The toggle actuator design supports both manual and automatic operational modes.
Constructed as a double pole cam switch to enhance circuit control and reliability.
This product is made in the United Kingdom and is a dependable choice for electrical installations that require durable cam switches embodying superior safety and functionality. Explore the Eaton Cam Switch range on EnvMart for comprehensive automation solutions and industrial-grade electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current supported by this cam switch is 20 amperes.
This cam switch is rated for a contact voltage of 690V AC.

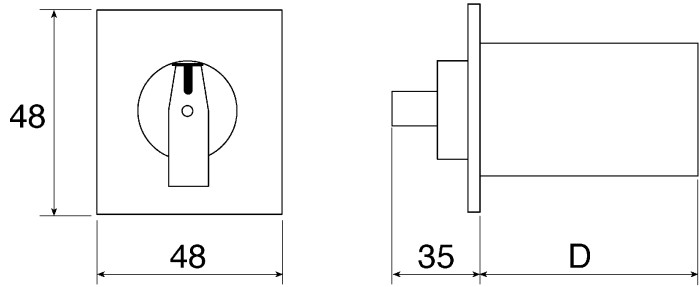

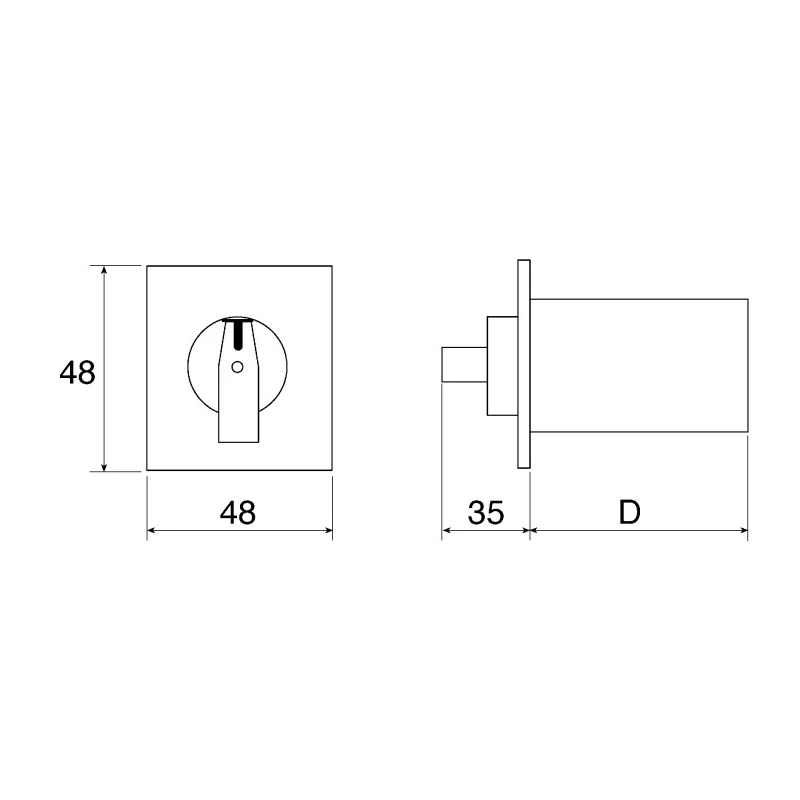

The dimensions of this model are 48mm in width, 48mm in length, and 100mm in depth.
It utilizes a toggle actuator for operation.
This cam switch operates with a 3-position configuration.
This cam switch is designed for single-phase electrical systems.
It features screw terminal connections for reliable wiring.
It complies with IEC/EN 60947 standards for safety and quality assurance.
This model is suitable for industrial, laboratory, construction, HVAC, and manufacturing applications.
The angle of throw for the toggle actuator is 45 degrees.
It is manufactured in the United Kingdom.
This cam switch belongs to the T0 series.
