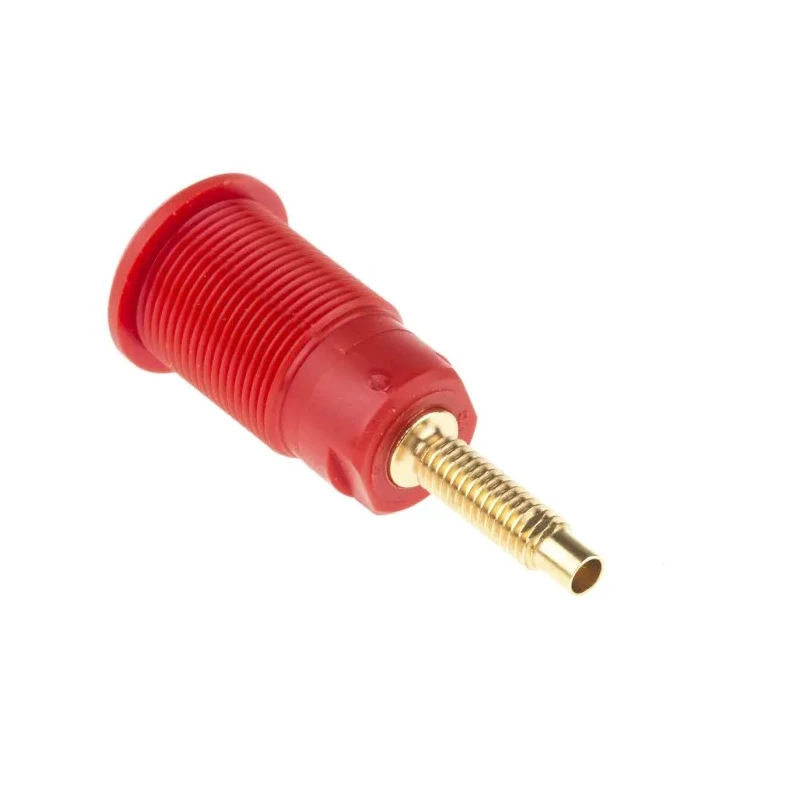

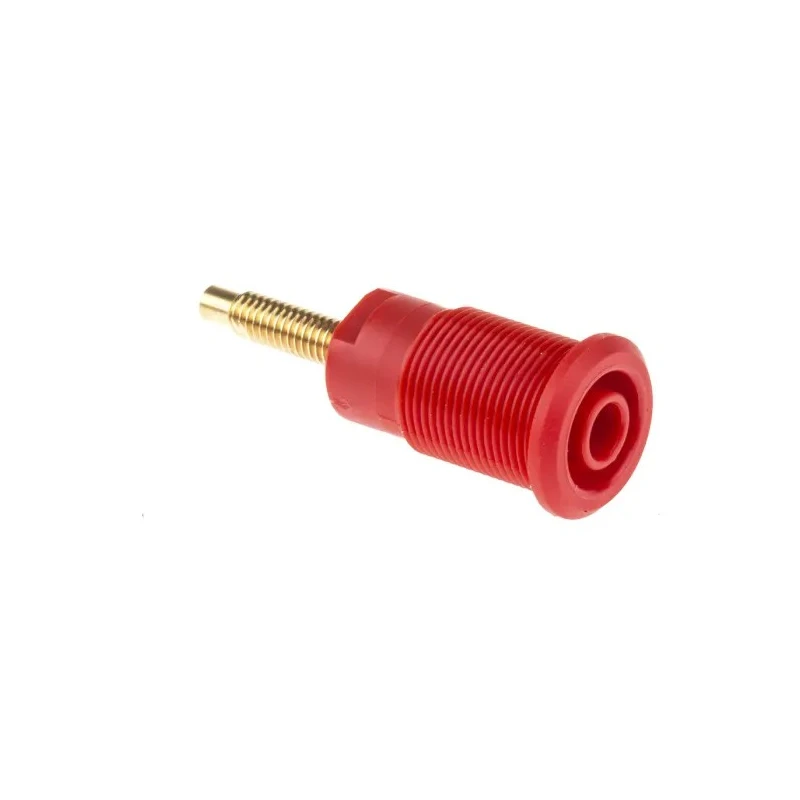

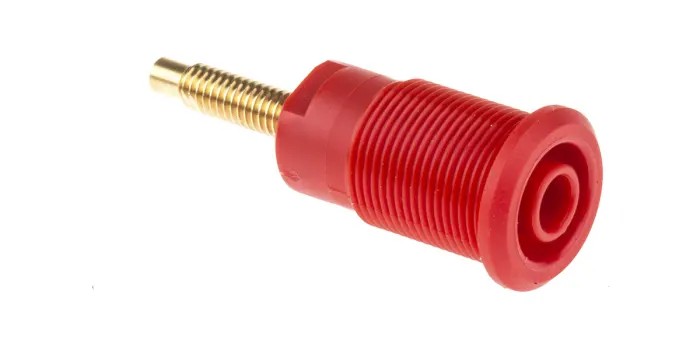

Staubli Red Female Banana Socket 4 mm Connector, Solder Termination, 1kV, 32A, Gold Plating 23.3020-22

Staubli 23.3020-22 Red Female Banana Socket 4 mm Connector is a high-quality test connector designed for industrial and laboratory applications requiring safe, reliable connection up to 1kV and 32A current.

Constructed with brass contact material plated in gold, this banana socket provides excellent conductivity and resistance to oxidation. The red color coding allows for easy identification in wiring setups. The spring-loaded plugs provide secure electrical contact while the rigid insulating sleeve offers protection from accidental shorts.

The connector is terminated via soldering, using an M4 15mm stud with a solder hole to facilitate stable connections with wire or ring terminals. The overall length is 38.5 mm, making it compact yet versatile for installation in predrilled panels of metals, plastics, or composites, with a panel hole diameter requirement of 12 mm. The product includes nuts and washers to ensure firm clamping of wires during assembly.

Staubli 23.3020-22 complies with important international standards BS EN 61340-5-1:2007 and ANSI/ESD S20.20:2014, ensuring it meets safety, environmental, and electrostatic discharge protection criteria necessary in advanced testing, automotive, aeronautics, and motorsports equipment applications.

The connector is constructed from brass with a gold-plated contact surface to optimize electrical signal integrity and durability. Its solder termination technique offers a robust mechanical and electrical connection, essential for stable test environments.

This banana socket is compatible with shrouded plugs and leads, enhancing operational safety. Included mounting hardware ensures secure installation in varied panel materials, facilitating flexible application. Gold plating together with spring contacts supports long-term reliable electrical performance under repeated use.

It is ideally suited for demanding industrial environments such as automotive manufacturing, aeronautics plant equipment, and motorsports testing. The product is Swiss-made, reflecting superior manufacturing quality and precision engineering.

For users seeking reliable and standardized banana connectors for electrical test and measurement applications, Staubli 23.3020-22 offers a precision-engineered solution meeting rigorous industry standards.
