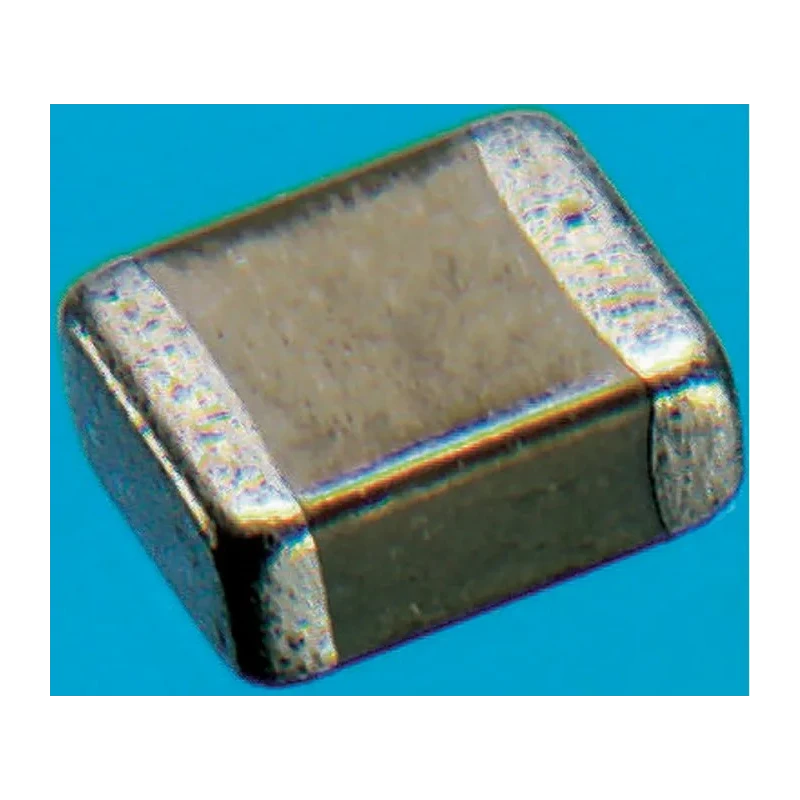

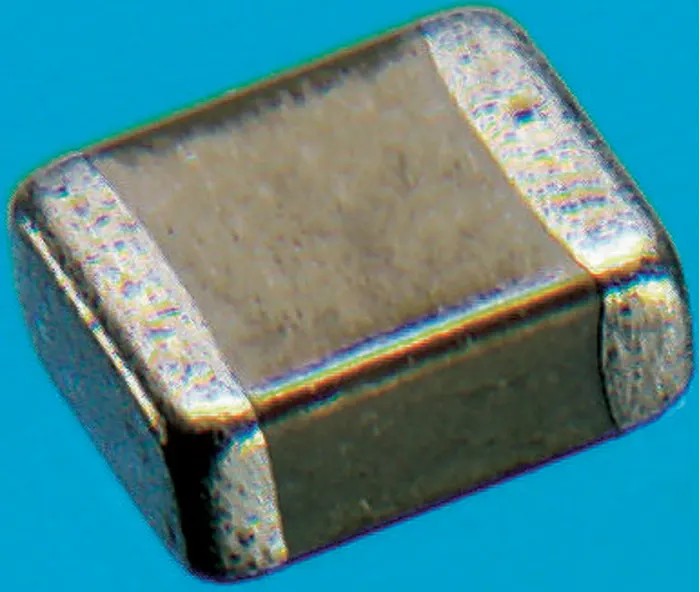

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 2kV dc, ±10 %, Surface Mount 1210GC102KAT1A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2kV dc |
| Brand | KYOCERA AVX |
| Height | 1.7mm |
| Length | 3.2mm |
| Model | 1210GC102KAT1A |
| Packaging | Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | High Voltage |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1210 |
| Dielectric | X7R |
Key Features
- This capacitor has a tolerance of ±10 % ensuring reliable performance.
- It utilizes X7R dielectric material suitable for stable temperature operation.
- Compact 1210 package size with dimensions 3.2mm length, 2.5mm width, and 1.7mm height.
- Operates effectively from -55°C up to 125°C maximum temperature.
- Designed as a surface mount component with reel packaging for efficient assembly.
- High voltage series suitable for applications such as snubbers, resonators, and DC blocking.
- Features low equivalent series resistance (ESR) at high frequencies for premium performance.
- Not compliant with automotive standards and no additional approvals specified.
Product Description
KYOCERA AVX 1210GC102KAT1A is a high voltage 1 nF Multilayer Ceramic Capacitor with a rated voltage of 2kV dc and ±10 % tolerance, featuring a compact 1210 surface mount package.
This capacitor employs X7R dielectric material, providing stable capacitance over a wide temperature range from -55°C to 125°C, making it reliable for various electronic applications.
Its small size (3.2mm length by 2.5mm width and 1.7mm height) and surface mount termination type ensure ease of PCB assembly and high-density circuit designs.
It is part of the AVX high voltage MLCC series, characterized by low leakage current and low equivalent series resistance (ESR) at high frequencies, ideal for high voltage systems.
Applications include use as snubbers in power converters, resonators in switched-mode power supplies (SMPS), and high voltage coupling or DC blocking in electronic circuits. This product does not conform to automotive standards and has no additional certifications or approvals.
Packaged on a reel, it supports automated insertion processes improving production efficiency in manufacturing environments. The capacitor is recommended for industrial, telecommunications, power electronics, and consumer electronics sectors requiring robust and compact high voltage capacitors.
This capacitor has a tolerance of ±10 % ensuring reliable performance. It utilizes X7R dielectric material suitable for stable temperature operation. Compact 1210 package size with dimensions 3.2mm length, 2.5mm width, and 1.7mm height.
Operates effectively from -55°C up to 125°C maximum temperature. Designed as a surface mount component with reel packaging for efficient assembly. High voltage series suitable for applications such as snubbers, resonators, and DC blocking.
Features low equivalent series resistance (ESR) at high frequencies for premium performance. Not compliant with automotive standards and no additional approvals specified. Recommended for use in electronic systems requiring high value and low leakage capacitors.
Suitable for industrial, communication, power electronics, and consumer electronics sectors. Explore more advanced electronic components and passive capacitors at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 1 nF.
It has a maximum voltage rating of 2kV dc.
The dimensions are 3.2mm in length, 2.5mm in width, and 1.7mm in height.
It operates effectively within a temperature range of -55°C to 125°C.
This capacitor utilizes X7R dielectric material, which provides stable capacitance over temperature variations.
It is packaged on a reel, which supports automated insertion processes for efficient assembly.
The tolerance of this capacitor is ±10 %.
This unit features a surface mount termination type.
It features low equivalent series resistance (ESR) at high frequencies, enhancing its performance in high voltage systems.
No, this capacitor is not compliant with automotive standards and has no additional approvals specified.
