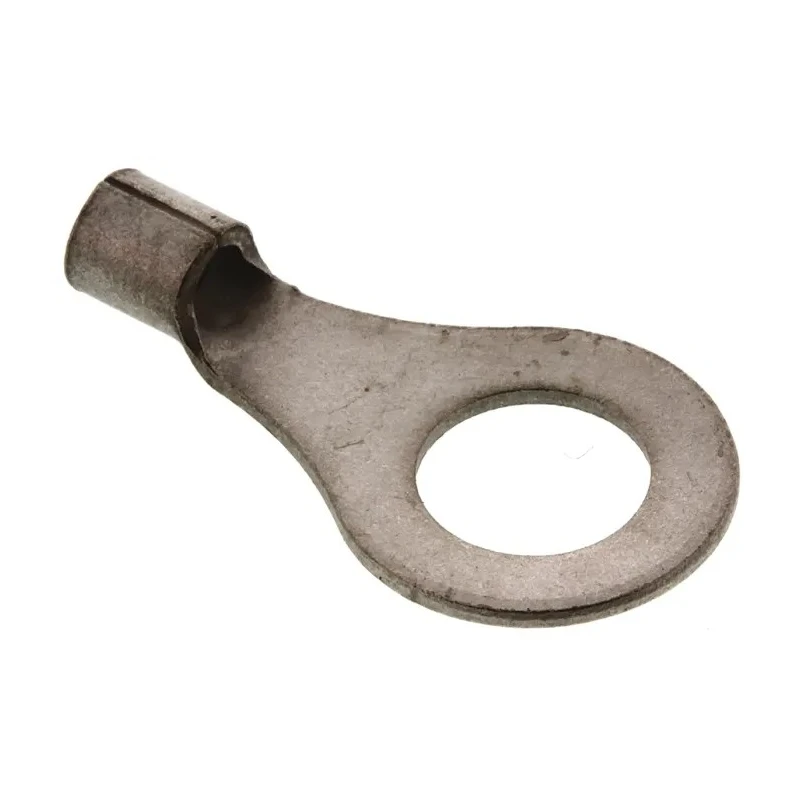

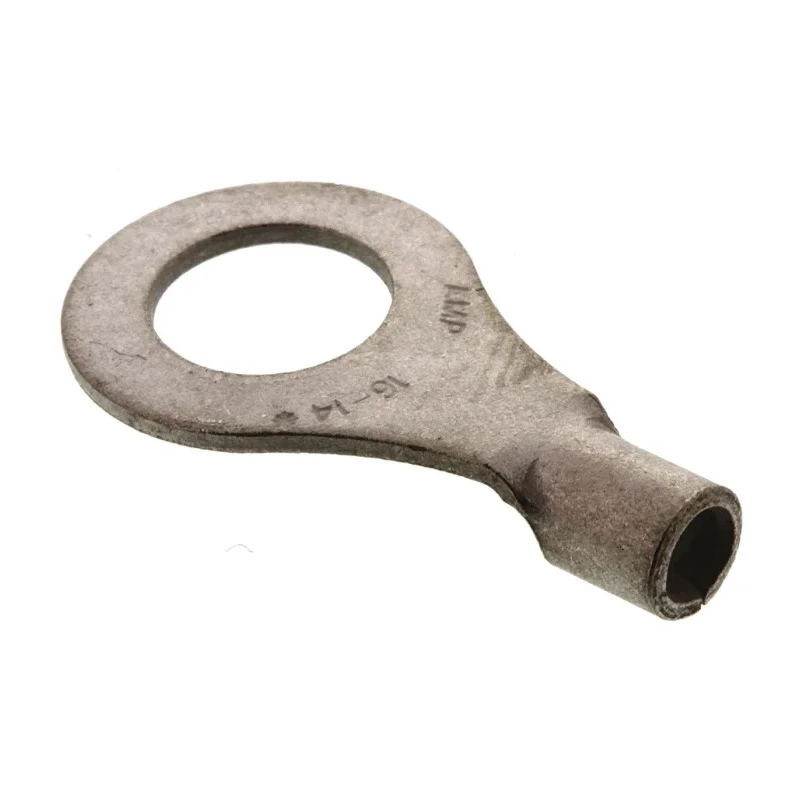

RS PRO Solistrand Uninsulated Crimp Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size 34124
Specifications
| Country of Origin | United States |
|---|---|
| Brand | RS PRO |
| THICKNESS | 0.79mm |
| Model | 34124 |
| Insulation | Uninsulated |
| Overall Length | 21.72mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 6.73mm |
| Stud Size | M6 |
| Standards/Approvals ANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
| RS PRO Uninsulated Ring Terminal, M6 Stud Size 16 AWG 14 AWG Wire SizeBrand | RS PRO |
Key Features
- Made of fine grade high conductivity copper for optimal electrical performance.
- Electro tin plating ensures improved corrosion resistance.
- Robust design suitable for harsh industrial environments.
- Brazed seams increase barrel strength for durability.
- Dimpled and serrated barrel optimizes electrical contact and tensile strength.
- Bell-shaped barrel entrance for easy and quick wire insertion.
- Supports wire sizes 16 AWG to 14 AWG (1mm² to 2.6mm²).
- Maximum operating temperature rating of 170°C for standard applications.
Product Description
TE Connectivity 34124 Solistrand Uninsulated Crimp Ring Terminal is specifically engineered for terminating solid and stranded wire, including irregular shaped conductors, with sizes between 16 AWG and 14 AWG. Its robust construction ensures superior performance even in challenging industrial environments.
Made from fine grade high conductivity copper, this crimp ring terminal delivers excellent electrical performance and efficiency. The electro tin plating enhances corrosion resistance, extending the product's service life.
The barrel design features brazed seams for increased metal strength, making it resistant to harsh industrial conditions. The inner barrel surface includes dimples and serrations to maximize tensile strength and electrical contact area after crimping, supported by a 'W' crimp design allowing a shorter barrel for cost efficiency.
The bell-shaped barrel entrance facilitates effortless wire insertion, reducing installation time. The terminal can handle wire sizes ranging from 16 AWG (1mm²) to 14 AWG (2.6mm²) with a stud size of M6 and an outer ring diameter of 11.91mm, an inner ring diameter of 6.73mm, overall length of 21.72mm, and a thickness of 0.79mm.
It is rated for a maximum operating temperature of 170°C, making it suitable for many electrical and industrial applications including materials handling equipment, motors, pad and pole mount transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and instrumentation control.
Made of high conductivity copper for superior electrical performance. Electro tin plating for enhanced corrosion resistance. Designed for durability with brazed seams and serrated barrel. Quick and easy wire insertion due to bell-shaped barrel mouth.
Compatible with 16 AWG to 14 AWG wire sizes and M6 stud. Resistant to harsh industrial environments. Meets ANSI/ESD S20.20:2021 and RoHS standards. Long service life ensured by robust design features.
This terminal is part of the TE Connectivity SOLISTRAND range, known for reliable and efficient wire termination solutions. It is ideal for industrial, electrical, telecommunications, and manufacturing sectors requiring consistent and dependable connections.
Explore more solutions and technical components in the Wire Terminals & Splices category on EnvMart.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature rating of this crimp ring terminal is 170°C, making it suitable for standard electrical applications.
This model supports wire sizes ranging from 16 AWG (1mm²) to 14 AWG (2.6mm²).
The stud size for this terminal is M6.
It is made of fine grade high conductivity copper and features electro tin plating for enhanced corrosion resistance.
The overall length is 21.72mm, with an outer ring diameter of 11.91mm and an inner ring diameter of 6.73mm. The thickness is 0.79mm.
The barrel features brazed seams for increased strength, and the inner surface has dimples and serrations to optimize electrical contact and tensile strength after crimping.
It meets ANSI/ESD S20.20:2021 for electrostatic control and is compliant with RoHS standards.
This crimp ring terminal is uninsulated, allowing for direct electrical connections.
The terminal features a bell-shaped barrel entrance, which facilitates easy and quick wire insertion.
It is suitable for various applications including materials handling equipment, motors, telecommunications, and instrumentation control.
It utilizes a 'W' crimp design which allows for a shorter barrel, optimizing cost efficiency while maintaining performance.
The serrated barrel optimizes electrical contact and increases tensile strength after crimping, enhancing the overall performance of the connection.
