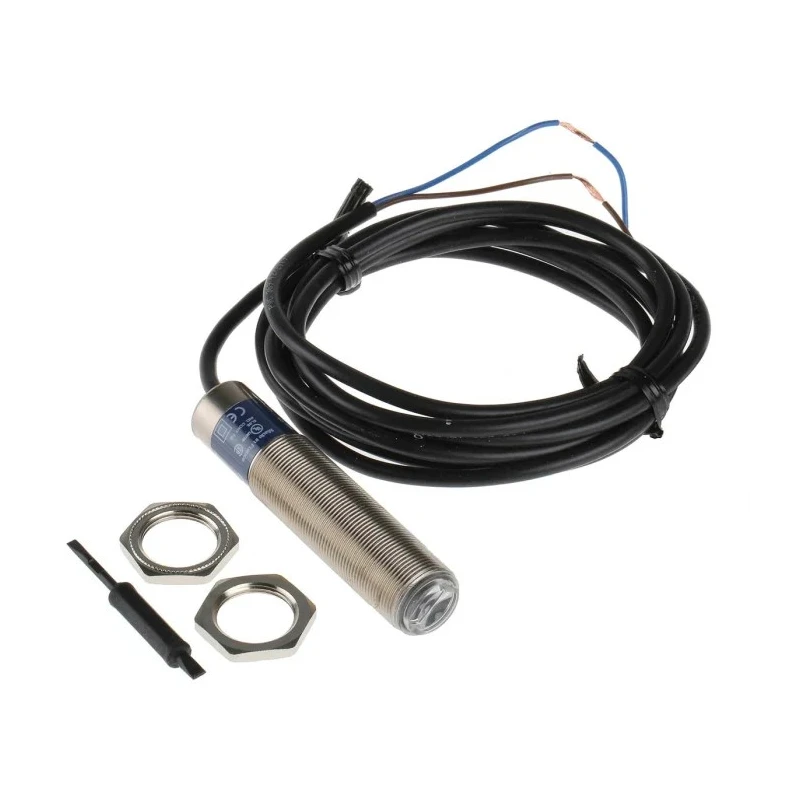

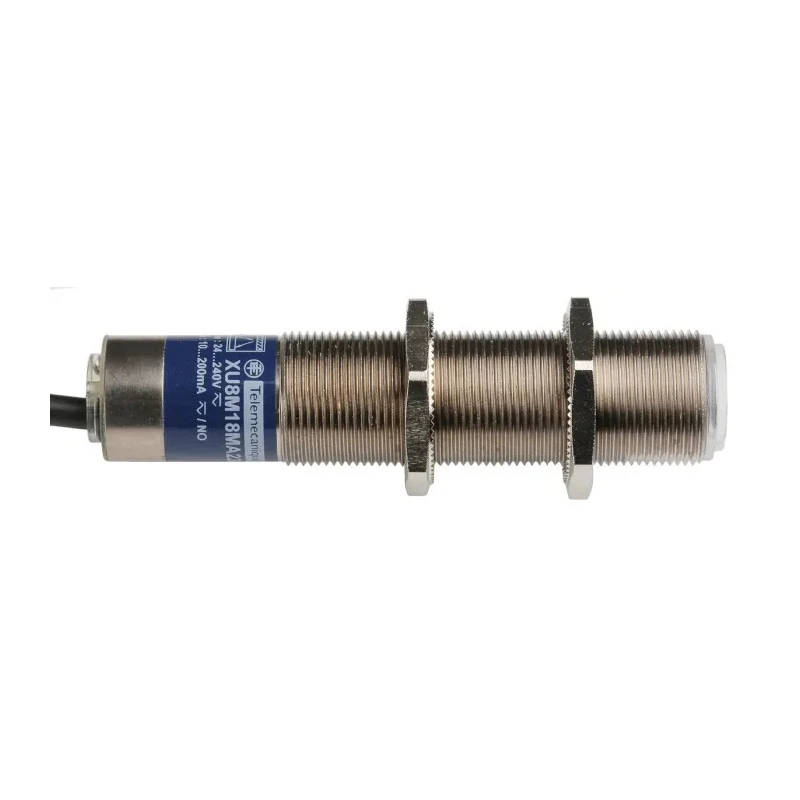

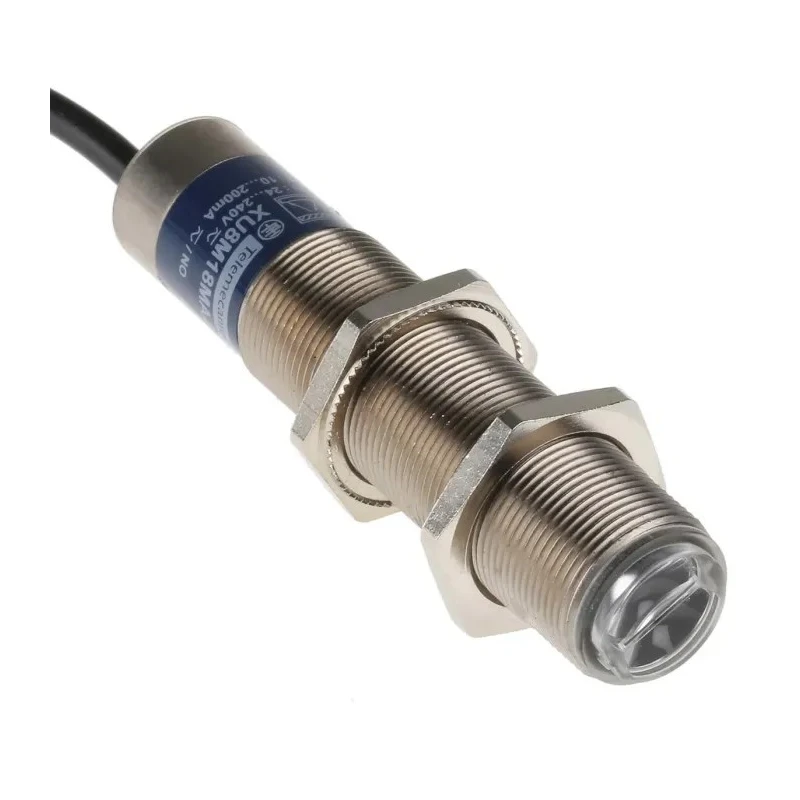

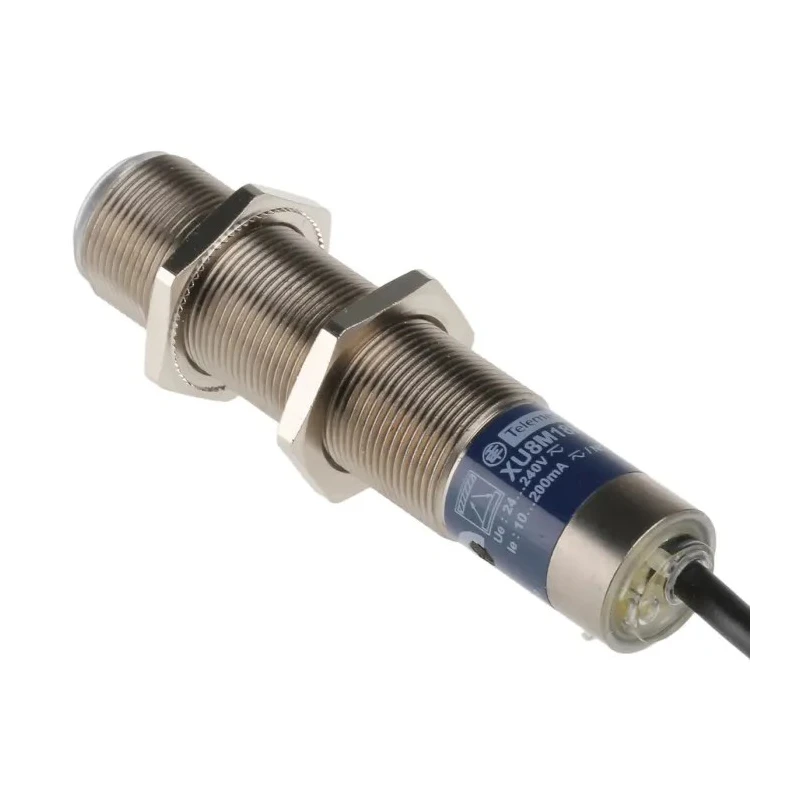

Telemecanique Sensors Diffuse Photoelectric Sensor Barrel Style 120 mm Detection Range Relay Output IP67 XU8M18MA230
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Response time | 20ms |
| Light Source | Infrared |
| Operating Temperature Range | -25 → +55 °C |
| Detection range | 120 mm |
| Model | XU8M18MA230 |
| IP Rating | IP67 |
| Housing Material | Nickel Plated Brass |
| Output type | Relay |
| Series | XU8 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 200mA |
| DetectIon Type | Diffuse |
| Maximum dc Voltage | 240V dc |
| Maximum AC Voltage | 240V ac |
| Sensor Style | Barrel |
Key Features
- This sensor uses infrared light source for diffuse detection.
- It is designed for industrial applications requiring robust environmental protection with IP67 rating.
- Operates reliably within temperature range of -25°C to +55°C.
- Maximum AC and DC voltage ratings are 240V each, ensuring wide compatibility.
- Maximum current handling is 200mA with a fast 20 ms response time.
- Housing is constructed from nickel plated brass for durability and corrosion resistance.
- Includes short-circuit protection for enhanced reliability.
- Features LED output state indication for easy monitoring.
Product Description
Telemecanique Sensors XU8M18MA230 is a diffuse photoelectric sensor with a barrel style housing, providing a 120 mm detection range and relay output, designed for demanding industrial sensing applications. Rated to IP67, this sensor ensures robust protection against dust and water ingress, making it highly reliable in harsh environments.
Utilizing infrared light, the sensor performs accurate diffuse object detection suitable for automation and control gear systems. Its nickel plated brass housing enhances durability and corrosion resistance for long service life.
The device supports a wide operating temperature range from -25°C to +55°C, allowing stable operation in varied industrial conditions. It can handle both AC and DC voltage up to 240V, with a maximum current capability of 200mA, and it has integrated short-circuit protection to improve system safety.
Response time is 20 ms, making it well suited for applications requiring quick sensor feedback. The sensor also features an LED indicator for visual confirmation of output state which aids in system diagnostics and maintenance.
This diffuse photoelectric sensor is ideal for a broad range of industrial, automation, manufacturing, and electrical control applications, especially where reliable object detection and environmental protection are critical. The package includes a 50 x 50 mm reflector for reflex system detector applications.
This sensor uses infrared light source for diffuse detection. Robust IP67 rating suits industrial use. Wide operating temperature range of -25°C to +55°C. Maximum voltage rating: 240V AC/DC. Maximum current up to 200mA with short-circuit protection.
Durable nickel plated brass housing. Fast 20 ms response time. LED output state indicator for easy monitoring. Includes 50 x 50 mm reflector for reflex system detectors. Designed for automation, manufacturing, and control systems.
For further options, view the full range of Telemecanique Sensors Photoelectric Sensors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 120 mm.
It can handle a maximum voltage of 240V for both AC and DC applications.
The response time of this sensor is 20 ms.
It operates within a temperature range of -25°C to +55°C.
This model features a relay output type.
The housing is constructed from nickel plated brass, providing durability and corrosion resistance.
Yes, it includes short-circuit protection to enhance reliability and safety.
This sensor uses an infrared light source for diffuse detection.
It is suitable for industrial, automation, manufacturing, and electrical control applications.
The sensor has an IP67 rating, indicating robust protection against dust and water ingress.
The package includes a 50 x 50 mm reflector for reflex system detector applications.
It can handle a maximum current of 200 mA.
