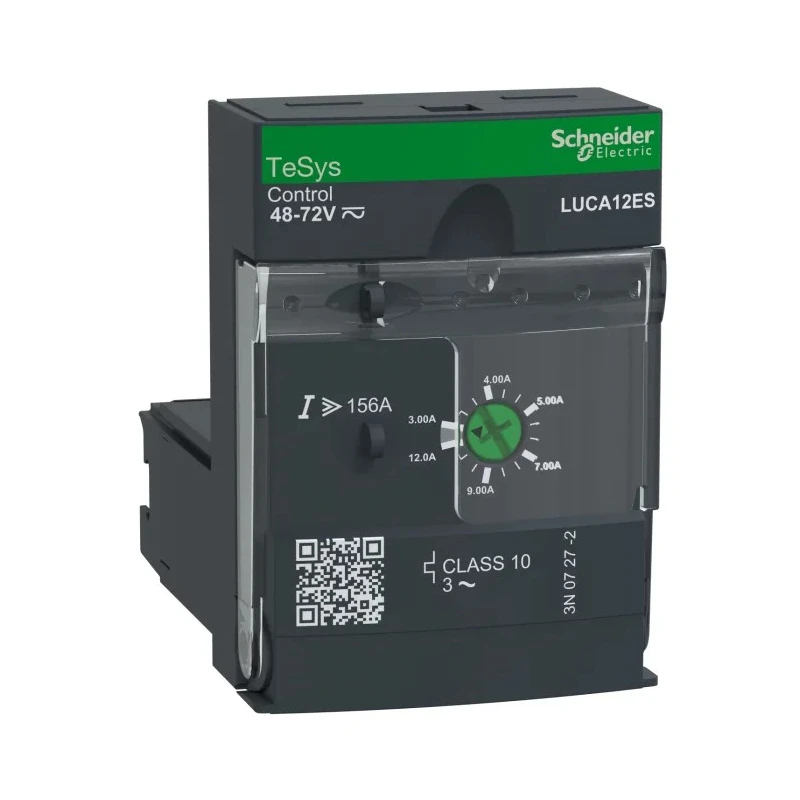

Schneider Electric LUC DOL Starter, 3 Phase, 690V AC, 9 kW, 12.3 A, IP40 LUCA12ES

Schneider Electric LUCA12ES DOL Starter is a 3 phase motor starter rated at 690V AC and 9 kW power, specifically designed for direct on line (DOL) applications. It offers reliable motor control and protection for industrial, manufacturing, HVAC, and other electrical automation environments.

The starter features a compact and space-saving design with a 45mm width and overall dimensions of 66mm length and 60mm depth, enabling efficient panel installation. It provides manual reset capability and class 10 thermal overload protection, securing motors against overloads, short-circuits, phase failure, and phase imbalance. Additionally, it safeguards against insulation breaks at the equipment level.

This device is part of the TeSys U series, engineered for modularity with plug-in control and protection modules. This modular approach reduces design complexity and assembly time, enabling users to adjust motor protection parameters and control voltages quickly. Its broad electronic control capabilities improve overload protection while minimizing component count.

Standards and certifications include CSA C22.2 No. 14 type E, EN 60947-6-2, IEC 60947-6-2, and UL 508 Type E, ensuring compliance with international industrial safety and performance requirements. The product carries an IP40 ingress protection rating, suitable for typical industrial environments.

Designed for direct on line (DOL) motor starting applications. Provides effective protection against overloads and short-circuits. Equipped with manual reset and class 10 thermal overload protection for three-phase motors.

Compact design with 45mm width, suitable for space-saving panel installations. Includes protection against phase failure, phase imbalance, and insulation breaks. Modular design allows flexible plug-in modules for customization and easy assembly.

Conforms to international standards including CSA, EN, IEC, and UL approvals. Ideal for industrial automation, manufacturing, HVAC, and electrical motor control systems.

The LUCA12ES DOL Starter is an essential component for motor control in industrial and commercial settings, supporting efficient motor management and safety. It fits standard control units and power bases designed to handle 12A nominal current with options for additional plug-in functions to extend capabilities.
