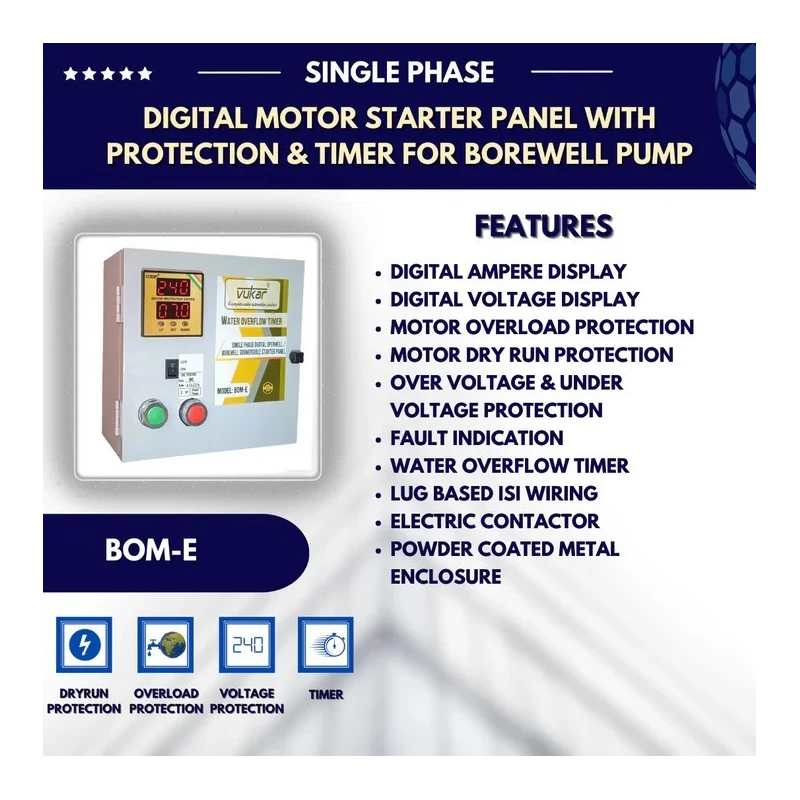

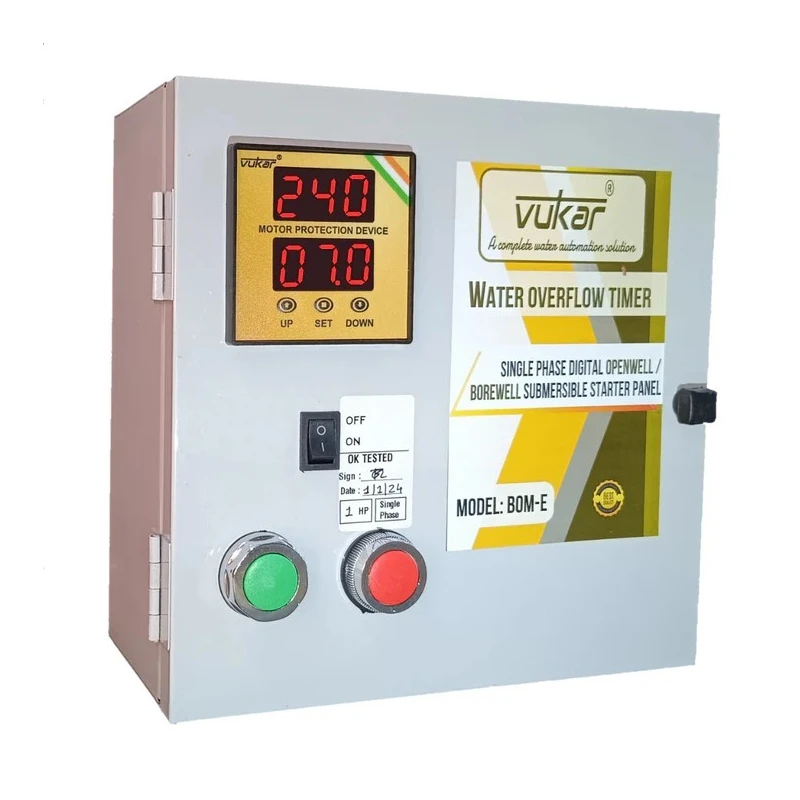

Vukar 0.75 HP Single phase Motor Starter BOM-E1

A motor starter is an electrical device used to start, stop, and control the operation of an electric motor. It provides power distribution, control, and protection for the engine.

Contactor: The motor starter includes a contactor, an electromagnetic switch responsible for connecting or disconnecting the motor from the power supply. The contactor typically consists of a coil and a set of contacts that open or close to control the flow of electrical current to the motor

Overload Relay: The motor starter incorporates an overload relay designed to protect the motor from excessive current or overheating. The overload relay monitors the motor's current and trips the contactor if the current exceeds a preset limit, indicating an overload condition

Control Circuitry: The motor starter contains control circuitry that handles the contactor and overload relay operation. It includes components such as push buttons, switches, timers, and relays to control the motor's start, stop, and control functions

Protection Devices: Besides the overload relay, the motor starter may include other protection devices, such as fuses or circuit breakers. These devices protect the motor and electrical system from short circuits, ground faults, or other electrical faults

Start-Stop Functionality: The motor starter can start and stop the motor. It includes start and stop buttons or switches that allow the operator to initiate or stop the motor's operation

Control Voltage: The control circuitry of the motor starter is typically powered by a separate control voltage, which is different from the motor's power supply voltage. The lower control voltage ensures the safe and reliable operation of the control circuitry

Auxiliary Contacts: The motor starter may have additional contacts that can be used to control signals or provide status feedback to other devices or systems

Thermal Protection: Some motor starters include thermal protection features using temperature sensors or switches to monitor the motor's temperature. If the engine exceeds a safe temperature limit, the thermal protection feature can trip the contactor and shut down the engine

Motor starters come in various types and configurations, including direct-on-line (DOL) starters, star-delta starters, and variable frequency drive (VFD) starters. The specific type of motor starter used depends on factors such as the motor's power rating, starting requirements, and the desired control features
