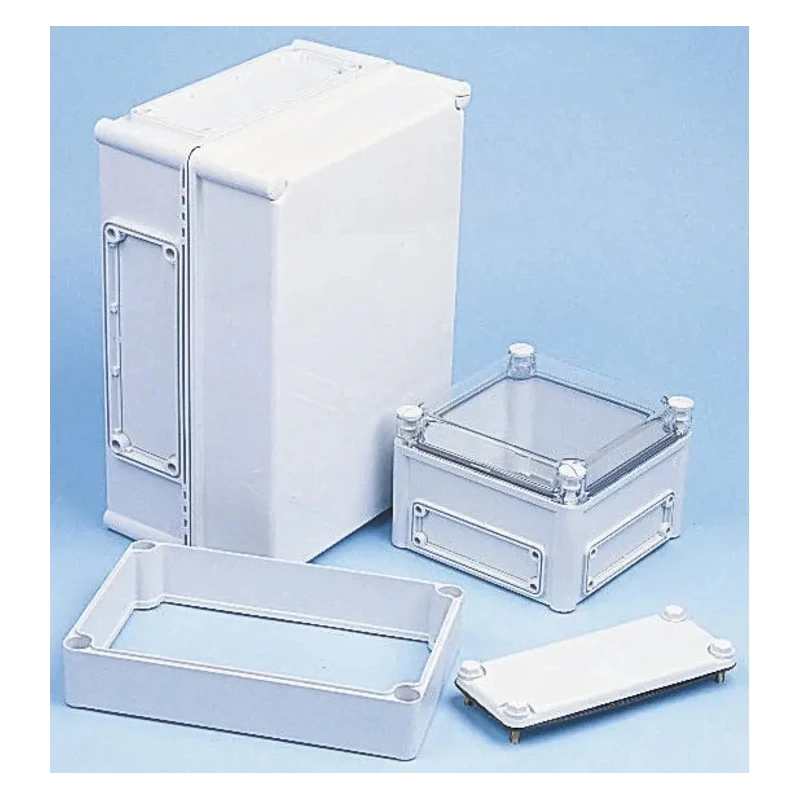

Fibox Flanged EK Series Grey Transparent Lid Polycarbonate Enclosure IP66 IP67 IK08 180 x 380 x 190 mm

Fibox EKMB 180 T ENCLOSURE is a high-quality flanged polycarbonate enclosure designed for housing electrical equipment safely in industrial, commercial, and automation environments. The enclosure features a grey polycarbonate body combined with a transparent lid that allows easy equipment monitoring without opening. With robust construction, it offers excellent impact resistance and environmental protection.

Measuring 180 mm in height, 380 mm in length, and 190 mm in width, this enclosure provides sufficient internal space for various electrical installations. Its flanged design ensures ease of mounting while maintaining structural integrity.

The enclosure complies with ingress protection ratings IP66 and IP67, effectively protecting against dust, splashing water, and temporary immersion. Impact resistance meets IK08 standards on the sides and IK09 on the front surface, safeguarding sensitive electronics from mechanical shocks.

The polyurethane gasket ensures a tight seal to maintain the enclosure's protection against harsh environmental conditions. Its temperature tolerance ranges between -40°C to +120°C, supporting both low-temperature and continuous-use scenarios up to +80°C. Furthermore, the enclosure is RoHS compliant, halogen-free, and UV resistant, making it suitable for long-term outdoor use where sunlight exposure is a factor.

Constructed from durable polycarbonate material for high impact resistance and weather protection. Features a grey body with a transparent lid for easy visual inspection. Dimensions are 180 mm height, 380 mm length, and 190 mm width, providing ample space for electrical equipment.

Ingress Protection rated IP66 and IP67, ensuring protection against dust and water immersion. Impact resistance certified to IK08 standard on side surfaces and IK09 on the front surface. Flanged design allows for secure mounting and installation flexibility.

Equipped with a polyurethane gasket for superior sealing performance. Suitable for indoor and outdoor applications requiring high protection standards. Temperature resistant from -40°C to +120°C with continuous use up to +80°C.

RoHS compliant, halogen-free, and UV resistant for long-term durability.

This enclosure series is compliant with UL and other international standards, making it ideal for industrial automation, electrical installations, water treatment, manufacturing plants, and other applications requiring reliable protection of electrical components.

Set includes enclosure, lid with screws, and PUR/EPDM gasket. Optional gland plates and extension frames are available separately to enhance installation flexibility. Explore the full Fibox EK Series range and other General Purpose Enclosures on EnvMart for comprehensive electrical protection solutions.
