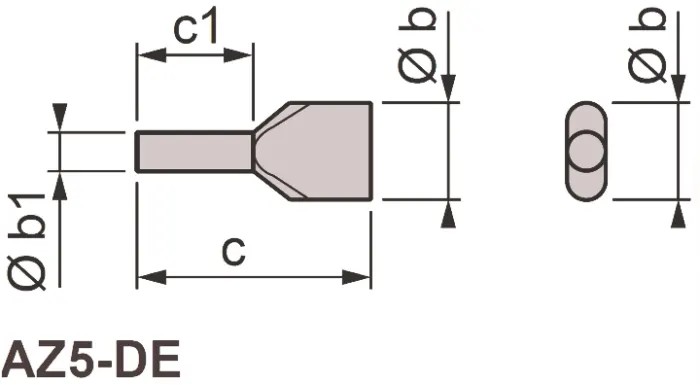

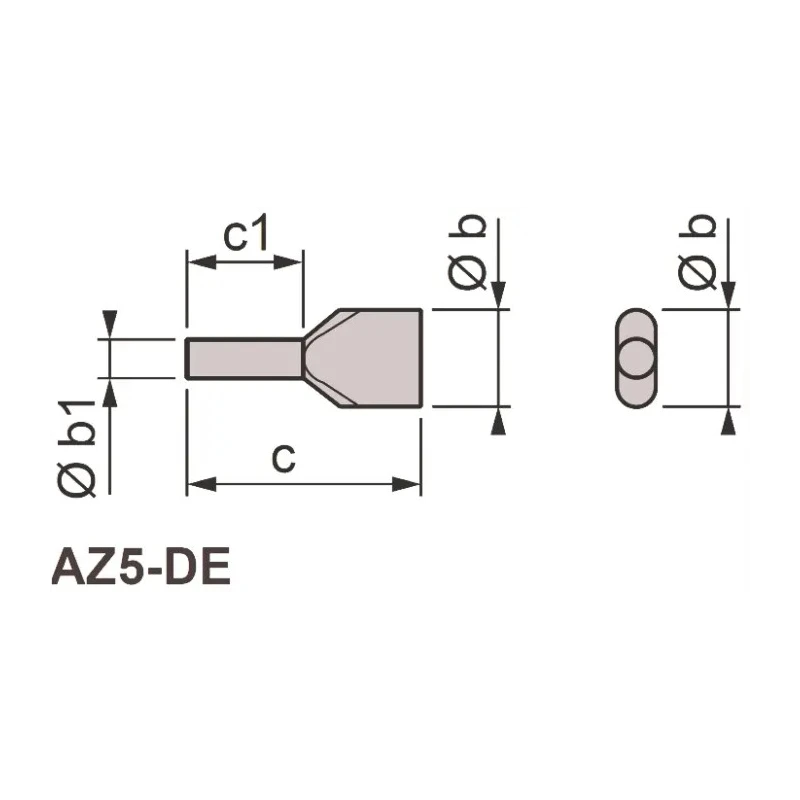

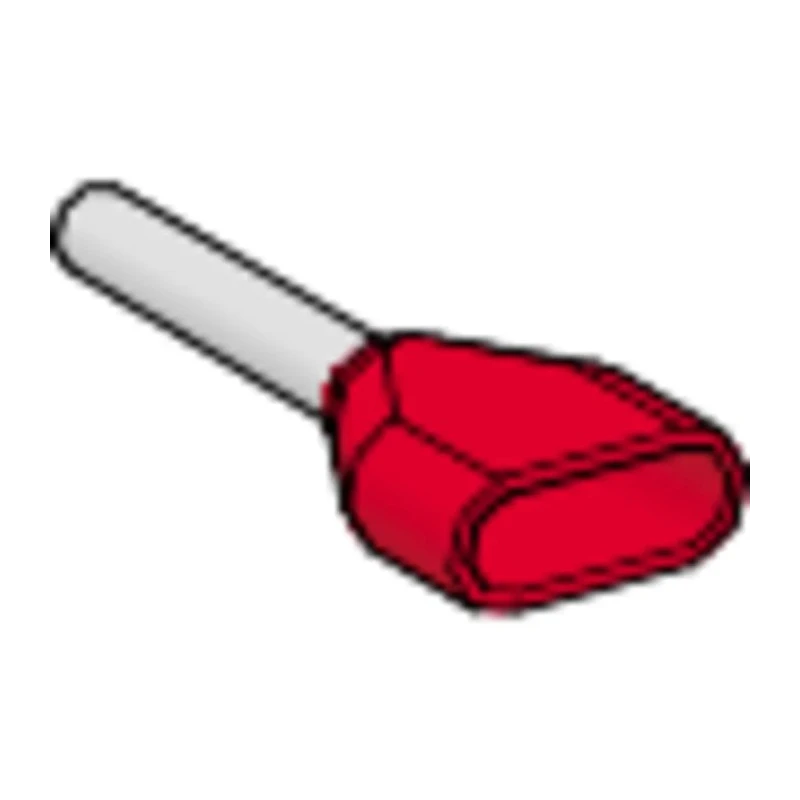

Schneider Electric Linergy AZ5 Insulated Crimp Bootlace Ferrule 8 mm Pin Length 2.2 mm Pin Diameter Red AZ5DE010
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schneider Electric |
| Colour | Red |
| Model | AZ5DE010 |
| Insulation | Insulated |
| Overall Length | 15mm |
| Series | Linergy AZ5 |
| Insulation Material | Plastic |
| Pin Diameter | 2.2mm |
| Terminal Material | Copper |
| Maximum Wire Size AWG | 18AWG |
| Pin Length | 8mm |
Key Features
- Constructed with highly conductive copper terminal material for reliable electrical connections.
- Features a plastic insulated bezel in red color to ensure user safety from electrical shock.
- Designed for twin conductor cable end use, capable of linking two 18 AWG wires simultaneously.
- Broad operating temperature range from -20°C to +105°C for use in demanding environments.
- Halogen-free insulation material prevents release of hazardous gases in case of fire.
- Overall length of the ferrule measures 15 mm for optimized cable termination.
- Compatible with crimping tools for secure wire clamping and enhanced connection durability.
- Manufactured in Germany following the Linergy AZ5 series standards for quality assurance.
Product Description
Schneider Electric AZ5DE010 Linergy AZ5 insulated crimp bootlace ferrule is designed for terminating twin conductor cables, specifically 18 AWG wire size, with a pin length of 8 mm and pin diameter of 2.2 mm. This high-quality component facilitates safe and efficient electrical connections in manufacturing facilities, automation systems, domestic appliances, and electrical repair applications.
The ferrule terminal is constructed from copper, providing excellent electrical conductivity and supporting rapid signal transmission. Its insulation comprises halogen-free plastic in red color, ensuring safe operation by preventing electrical shock hazards and restricting dangerous gas emissions under fire conditions.
Measuring 15 mm overall length, it offers precise wire gripping capability when used with crimping tools, allowing users to connect two wires simultaneously with ease. The product's wide operating temperature range of -20°C to +105°C makes it suitable for various industrial and commercial environments prone to temperature fluctuations.
Installation involves stripping the wire ends and inserting them into the ferrule sleeve followed by crimping to secure the connection firmly. This reusable dispenser pack design enhances on-site workflow by minimizing spillage.
Constructed using copper for enhanced conductivity. Plastic insulation in red color providing electrical safety and durability. Supports twin conductor connections for 18 AWG wires. Functions reliably in temperatures from -20°C to +105°C.
Halogen-free plastic prevents toxic gas emission during fires. Overall length of 15 mm accommodates standard cable sizes. Compatible with standard crimping tools for secure connections. Manufactured in Germany ensuring superior quality and compliance.
This Schneider Electric crimp bootlace ferrule adds reliability and protection to industrial, laboratory, HVAC, manufacturing, and electrical repair applications. Discover a diverse range of Connectors and electrical components in the EnvMart catalogue to suit your precise technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin length of this ferrule is 8 mm, and the pin diameter is 2.2 mm.
The overall length of this ferrule is 15 mm.
This model is designed for use with 18 AWG wires, allowing for twin conductor connections.
The terminal material is copper, and it features halogen-free plastic insulation.
It operates effectively within a temperature range of -20°C to +105°C.
Yes, the halogen-free insulation material prevents the release of hazardous gases in case of fire.
Yes, it is compatible with standard crimping tools for secure wire clamping.
This ferrule is manufactured in Germany, ensuring quality assurance.
It is suitable for applications in manufacturing facilities, automation systems, domestic appliances, and electrical repair.
The insulation is red in color, providing an additional safety feature.
Installation involves stripping the wire ends, inserting them into the ferrule sleeve, and then crimping to secure the connection.
This ferrule is part of the Linergy AZ5 series.
